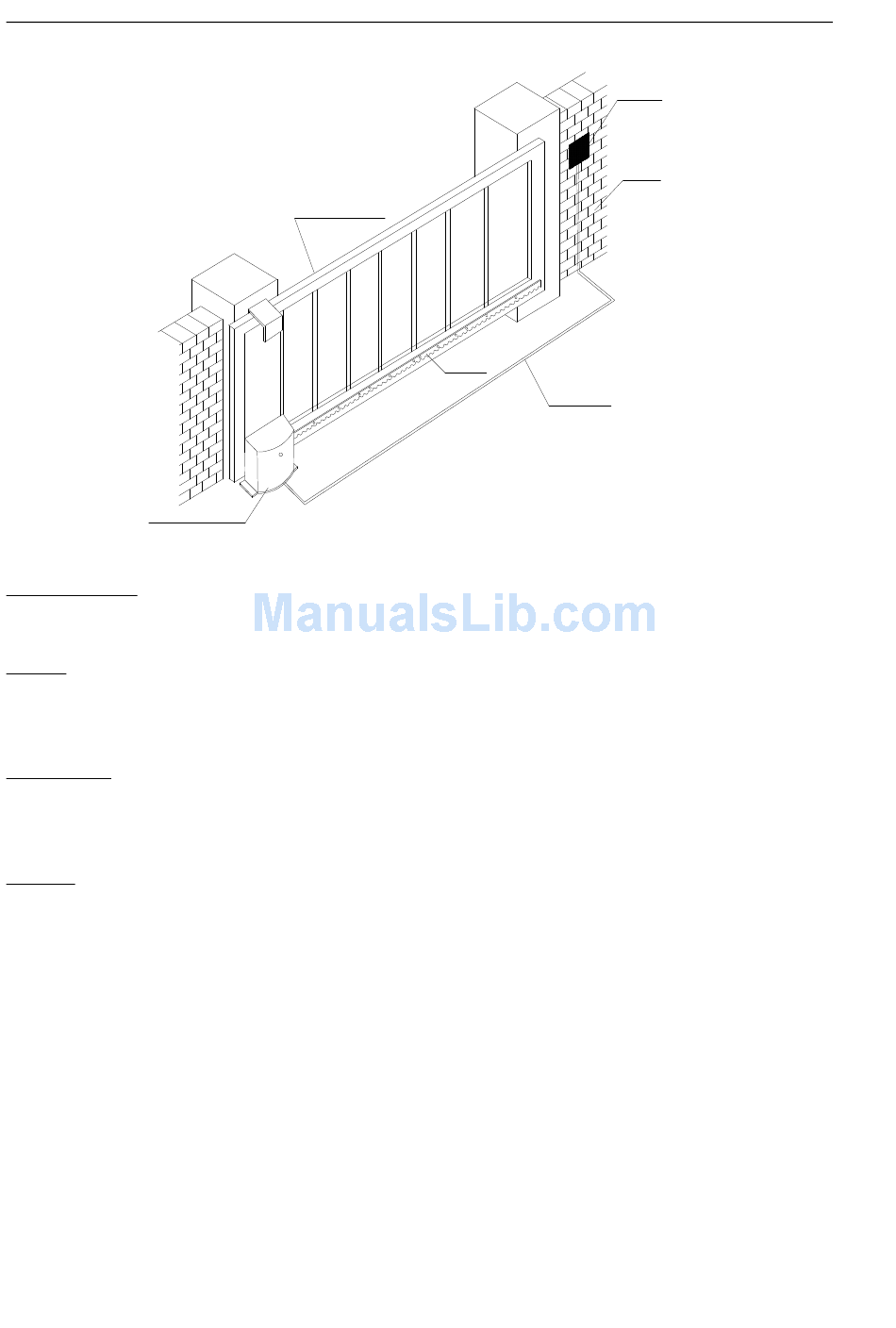

PY500AC SLIDING GATE OPERATOR
Switch
Wall
Sliding gate
Rack
Input power
Gate operator
Fig.1
Gate preparation
Be sure the gate is properly installed and slides smoothly before installing the PY500AC sliding gate
operator. The gate must be plumb, level, and move freely.
Conduit
In order to protect the cable, use PVC conduit for low voltage power cable and control wires. Conduit
must be preset into the concrete when it is poured. Wires within the conduit shall be located or protected
so that no damage can result from contact with any rough or sharp part.
Concrete pad
The base unit of the gate operator requires a concrete pad in order to maintain proper stability. The
concrete pad should be approximately 400mm x 250mm x 200mm deep in order to provide for adequate
weight and structure to insure proper stable installation.
Anchors (see Fig.2)
You can use anchor bolts, anchors, washers and nuts. These anchors must be set into the concrete when
it is poured or you can use wedge anchors to fasten the operator.
