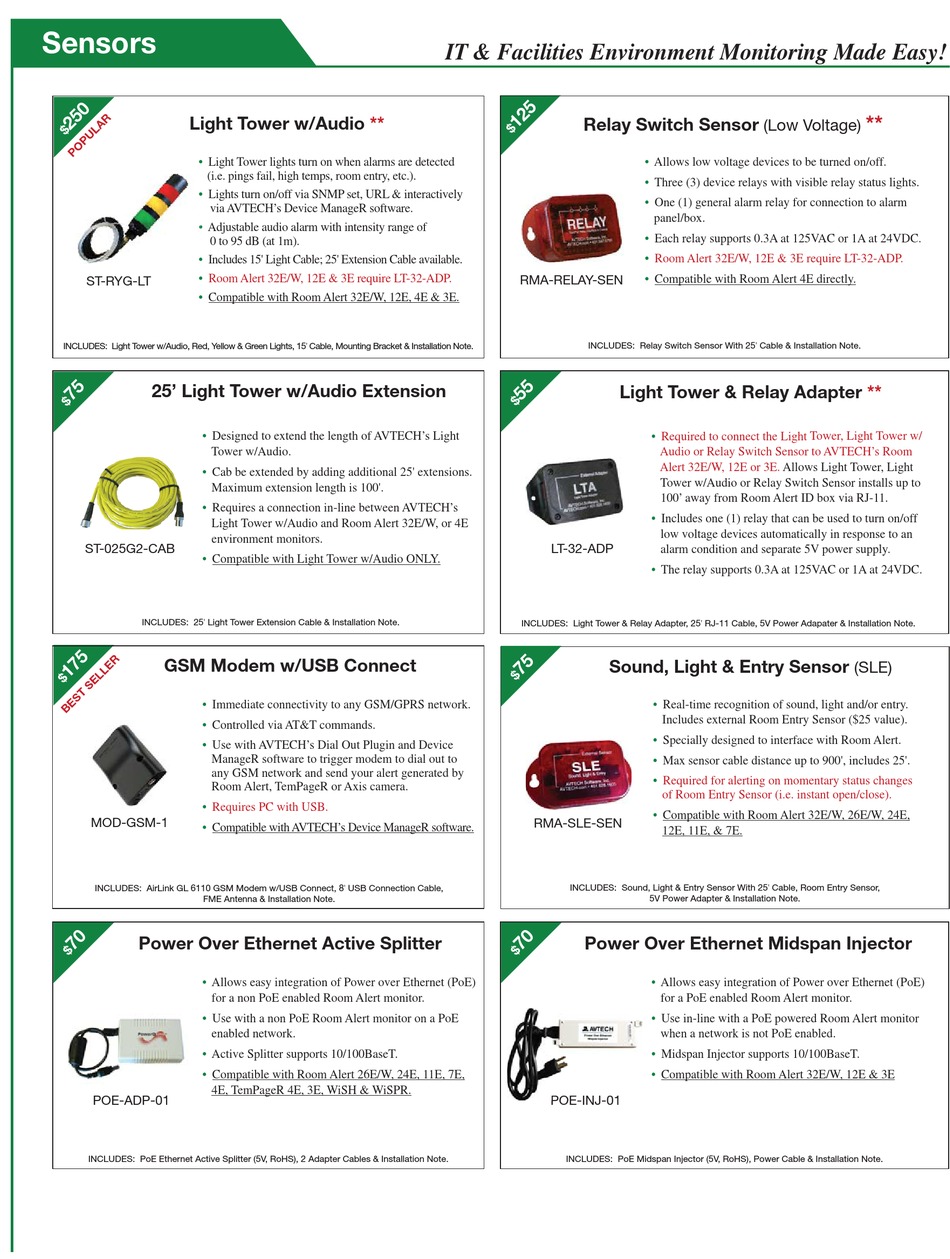

Sensors
Light Tower w/Audio
• Light Tower lights turn on when alarms are detected
(i.e. pings fail, high temps, room entry, etc.).
• Lights turn on/off via SNMP set, URL & interactively
via AVTECH's Device ManageR software.
• • Adjustable audio alarm with intensity range of
0 to 95 dB (at 1m).
• Includes 15' Light Cable; 25' Extension Cable available.
• Room Alert 32E/W, 12E & 3E require LT-32-ADP.
ST-RYG-LT
• Compatible with Room Alert 32E/W, 12E, 4E & 3E.
INCLUDES: Light Tower w/Audio, Red, Yellow & Green Lights, 15' Cable, Mounting Bracket & Installation Note.
25' Light Tower w/Audio Extension
• Designed to extend the length of AVTECH's Light
Tower w/Audio.
• Cab be extended by adding additional 25' extensions.
Maximum extension length is 100'.
• Requires a connection in-line between AVTECH's
Light Tower w/Audio and Room Alert 32E/W, or 4E
environment monitors.
ST-025G2-CAB
• Compatible with Light Tower w/Audio ONLY.
INCLUDES: 25' Light Tower Extension Cable & Installation Note.
GSM Modem w/USB Connect
• Immediate connectivity to any GSM/GPRS network.
• Controlled via AT&T commands.
• Use with AVTECH's Dial Out Plugin and Device
ManageR software to trigger modem to dial out to
any GSM network and send your alert generated by
Room Alert, TemPageR or Axis camera.
• Requires PC with USB.
MOD-GSM-1
• Compatible with AVTECH's Device ManageR software.
INCLUDES: AirLink GL 6110 GSM Modem w/USB Connect, 8' USB Connection Cable,
FME Antenna & Installation Note.
Power Over Ethernet Active Splitter
• Allows easy integration of Power over Ethernet (PoE)
for a non PoE enabled Room Alert monitor.
• Use with a non PoE Room Alert monitor on a PoE
enabled network.
• Active Splitter supports 10/100BaseT.
• Compatible with Room Alert 26E/W, 24E, 11E, 7E,
4E, TemPageR 4E, 3E, WiSH & WiSPR.
POE-ADP-01
INCLUDES: PoE Ethernet Active Splitter (5V, RoHS), 2 Adapter Cables & Installation Note.
Order from www.sellcom.com/avtech.html
800-SELLCOM 919-401-0067
IT & Facilities Environment Monitoring Made Easy!
**
RMA-RELAY-SEN
LT-32-ADP
INCLUDES: Light Tower & Relay Adapter, 25' RJ-11 Cable, 5V Power Adapater & Installation Note.
RMA-SLE-SEN
POE INJ 01 POE-INJ-01
Relay Switch Sensor
• Allows low voltage devices to be turned on/off.
• Three (3) device relays with visible relay status lights.
• One (1) general alarm relay for connection to alarm
panel/box.
• Each relay supports 0.3A at 125VAC or 1A at 24VDC.
Room Alert 32E/W, 12E & 3E require LT-32-ADP.
•
• Compatible with Room Alert 4E directly.
INCLUDES: Relay Switch Sensor With 25' Cable & Installation Note.
Light Tower & Relay Adapter
• Required to connect the Light Tower, Light Tower w/
Audio or Relay Switch Sensor to AVTECH's Room
Alert 32E/W, 12E or 3E.
Tower w/Audio or Relay Switch Sensor installs up to
100' away from Room Alert ID box via RJ-11.
• Includes one (1) relay that can be used to turn on/off
low voltage devices automatically in response to an
alarm condition and separate 5V power supply.
• The relay supports 0.3A at 125VAC or 1A at 24VDC.
Sound, Light & Entry Sensor
• Real-time recognition of sound, light and/or entry.
Includes external Room Entry Sensor ($25 value).
• Specially designed to interface with Room Alert.
• Max sensor cable distance up to 900', includes 25'.
• Required for alerting on momentary status changes
of Room Entry Sensor (i.e. instant open/close).
• Compatible with Room Alert 32E/W, 26E/W, 24E,
12E, 11E, & 7E.
INCLUDES: Sound, Light & Entry Sensor With 25' Cable, Room Entry Sensor,
5V Power Adapter & Installation Note.
Power Over Ethernet Midspan Injector
• Allows easy integration of Power over Ethernet (PoE)
for a PoE enabled Room Alert monitor.
• Use in-line with a PoE powered Room Alert monitor
when a network is not PoE enabled.
• Midspan Injector supports 10/100BaseT.
• Compatible with Room Alert 32E/W, 12E & 3E
INCLUDES: PoE Midspan Injector (5V, RoHS), Power Cable & Installation Note.
**
(Low Voltage)
**
Allows Light Tower, Light
(SLE)
