- Page 1 TemPageR ™ The World’s Most Popular Real-Time Temperature Monitor For Physical IT & Facilities Environment Monitoring! Phone 401.628.1600 User’s Guide & 401.628.1601 Reference Manual AVTECH.com 120914.07...
- Page 2 All Rights Reserved. No part of this book may be used or reproduced for commercial benefit in any form or by any means, or stored in a database or retrieval system, without prior written permission of AVTECH Software Inc., except in the case of brief quotations embodied in articles and reviews.
-
Page 3: Table Of Contents
Installation........................3 Package Contents.............................3 TemPageR 3E ID Box..........................3 Step 1: Install The AVTECH Device Discovery Utility................4 Step 2: Install The TemPageR 3E ID Box....................4 Step 3: Discovery And Network Settings....................4 Static Only Networks........................6 Device Not Found Or Invalid IP Address..................7 Step 4: Connect Included Sensors And Accessories................8 Step 5: Check TemPageR 3E Firmware Version..................8... - Page 4 TemPageR 3E Table of Contents Power Sensor ............................15 Smoke Senso r............................15 Air Flow 1 Sensor ..........................15 Room Entry Sensor ..........................15 Dry Contacts ............................15 Additional Screens And Interfaces................16 Network..............................16 Security..............................16 Advanced..............................17 Using Trace Output..........................18 Help.................................18 About..............................19 Web Interface............................19 Advanced Topics......................21 Upgrading Firmware..........................21 Reset Factory Default Settings......................21...
-
Page 5: Introduction
Device ManageR, Tivoli, OpenView, Unicenter, Big Brother, Nagios, What’s Up Gold, SolarWinds and others. TemPageR is designed to easily work with AVTECH’s Device ManageR software which is included FREE and is designed to set up, monitor and manage unlimited numbers of Room Alert and/or TemPageR units across your network. - Page 6 Notifications can be sent by email to computers, mobile phones, BlackBerrys, pagers, PDAs and more. By having another monitoring application (like AVTECH’s Device ManageR) monitor TemPageR, there are additional options for logging, graphing, alert notification and automatic corrective action to resolve issues and protect equipment.
-
Page 7: Installation

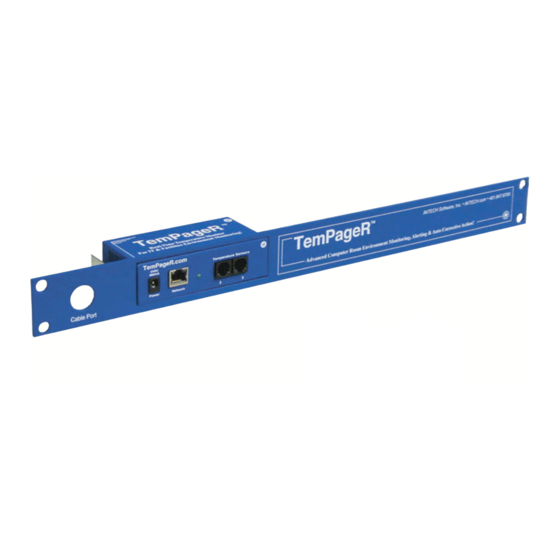

‘Support’ and ‘Downloads’ sections of the AVTECH.com website for any appropriate installation or application note that will instruct you on the proper installation and use of that component. Install those components after the TemPageR 3E setup is completed. TemPageR 3E ID Box The graphics below identify the primary components of the TemPageR 3E ID box that are visible on the front and rear panels. -
Page 8: Step 1: Install The Avtech Device Discovery Utility
TemPageR 3E unit. IMPORTANT NOTE: DO NOT CONNECT POWER to the TemPageR 3E unit during the initial setup UNTIL AFTER you have connected it to your network as described above or it will cause problems automatically assigning the initial IP address. - Page 9 ‘Device Not Found Or Invalid IP Address’ subsection below before continuing. Once the TemPageR 3E unit is displayed, select it from the list to perform an action on it. Selecting multiple units will cause the action selected to be performed on multiple units (i.e. all selected units) simultaneously.
-
Page 10: Static Only Networks
The AVTECH Device Discovery Utility offers additional features accessible via a right click context menu. This menu is accessible only when a located TemPageR 3E unit has been selected and the right mouse button has been clicked. These menu options are described below. -
Page 11: Device Not Found Or Invalid Ip Address
3. Enter a valid static IP address for the current location of the TemPageR 3E unit when prompted. NOTE: If the TemPageR 3E unit is later relocated outside of the current subnet, you will need to reset the IP address in order to see and work with the TemPageR 3E unit. -
Page 12: Step 4: Connect Included Sensors And Accessories
In either case, follow the instructions listed in the ‘Static-Only Networks’ subsection above. NOTE: If the instructions provided do not allow configuration of the TemPageR 3E unit, please initiate a Live Chat technical support request on AVTECH.com or send an email support request to Support@AVTECH.com. -
Page 13: Configuration And Setup Screens
The TemPageR 3E unit can send alert notifications via email and email-to-SMS using anonymous SMTP relay and/or SNMP Traps. The TemPageR 3E unit is fully SNMP compliant and can be accessed by any application that can issue a SNMP Get request. Other monitoring applications can therefore be used to perform SNMP Get requests and receive SNMP Traps. -
Page 14: Initial Email Setup
Once all SMTP Email settings are configured, click the ‘Accept Changes’ button then ‘Save Settings’. NOTE: If a domain name is entered in the ‘Mail Server Address’ field, the TemPageR 3E unit must be assigned static IP settings and have a DNS server IP address set. -
Page 15: Snmp
The TemPageR 3E unit is fully SNMP compliant and can be monitored by applications capable of performing an SNMP Query or Get request. The TemPageR 3E unit can also be configured to send SNMP Traps to up to three separate IP addresses when thresholds are exceeded. If another application is used to monitor the TemPageR 3E unit, be sure to obtain the MIB files for the TemPageR 3E unit from the ‘Downloads’... -
Page 16: Snmp Traps
‘Settings’ screen. Current sensor status will be displayed on the ‘Status’ screen of the TemPageR 3E web interface. The status icon displayed will be a gray circle ‘ ’ if a sensor is connected although an alert threshold is not set. If an alert threshold is set for a connected sensor and the sensor is not in an alarm state, the status icon displayed will be a green check ‘... -
Page 17: Digital Sensors
These sensors attach to various AVTECH hardware via RJ-11 cable to an external environment sensor channel. Current sensors providing real-time values include the Digital Temperature Sensor, Digital Outdoor Temperature Sensor, Digital Fluid Temperature Sensor and Digital Temperature &... -
Page 18: External Sensor Options
Flood Sensor w/8’ or 24’ Cable (RMA-F008-SEN, RMA-F024-SEN) The AVTECH Flood Sensor is available with a standard 8´ or 24´ flood sensor cable and allows a real-time notification of flood or water leakage wherever the attached flood sensor cable is located. This is an instant ‘plug & play’ sensor that connects to one of the switch sensor contact sets via a low voltage 2-wire cable. -
Page 19: Sound, Light & Entry Sensor
Sound, Light & Entry Sensor (RMA-SLE-SEN) The AVTECH Sound, Light & Entry Sensor allows real-time monitoring for sound and light at the location of the sensor. This sensor also includes a set of switch sensor contacts and an AVTECH Room Entry Sensor. Each sensor can be monitored independently or an ‘any sensor’... -
Page 20: Additional Screens And Interfaces
NOTE: If configuring static IP settings on the TemPageR 3E unit, be sure that the settings assigned are valid for the current location of the TemPageR 3E unit and that there are no other devices assigned to the same IP address. DO NOT set an IP address that is outside of your subnet or you may not be able to see or discover the TemPageR 3E unit. -
Page 21: Advanced
Additional Screens And Interfaces Advanced The ‘Advanced’ tab of the TemPageR 3E ‘Settings’ screen is used to configure the temperature scale, time zone, time display, daylight savings time setting, time server IP address and trace configuration options. The temperature scale selected in the ‘Temperature Scale’ drop down will be the default temperature scale to be used when entering alert thresholds and displayed on the ‘Status’... -
Page 22: Using Trace Output
The additional support information provided on this screen is presented in the order that it should be followed in the event that you have a technical question regarding the TemPageR 3E or if you are experiencing a situation where assistance is desired. -
Page 23: About
Below the menu bar on the TemPageR 3E is the device name, date and time display, and MAC address display. NOTE: If the date displayed is ‘2/14/36’, the TemPageR 3E is currently unable to connect to a time server. Please verify that the network has a connection to the internet and that NTP requests on UDP port 123 are not blocked. - Page 24 Additional Screens And Interfaces TemPageR 3E The next row contains a field that can be used to modify the refresh interval of the ‘Status’ screen and a pair of radio buttons for toggling between Fahrenheit and Celsius temperature displays. By default, the refresh interval for the ‘Status’...
-
Page 25: Advanced Topics
TemPageR 3E Firmware Update file. NOTE: When saving the TemPageR 3E Firmware Update file to the computer, it may be saved with either a ‘.zip’ or ‘.upd’ file extension. -
Page 26: Performing Firmware Recovery
7. Follow the instructions that load to complete the firmware recovery process. NOTE: If the TemPageR 3E unit is found to be in need of a firmware recovery, please notify AVTECH Support by Live Chat or email for a quick consultation. This may save you valuable time and effort or help you to determine what caused the situation so that it can be avoided in the future. - Page 27 Users can store images for future reference and forward links to On Linux & Apple’s OSX Operating Systems images within alerts. Contact your favorite Reseller or an AVTECH • Bundled FREE With TemPageR And Room Alert.
- Page 28 AVTECH.com Protect Your IT Facility... Don’t Wait Until It’s To Late...
