- Page 1 AVTECH All manuals and user guides at all-guides.com Alert Room 32S & 12S Room Alert S Models ® Temperature & Environment Monitoring... Made Easy! AVTECH Software, Inc. Temperature & Environment Monitoring... Made Easy! AVTECH.com...
- Page 2 & software. Nothing on any AVTECH website or in documentation shall be construed as conferring any license under any of the AVTECH Software (AVTECH) or any third party’s intellectual property rights, whether by estoppel, implication, or otherwise.
-
Page 3: Table Of Contents
If Your Network Is Not Power Over Ethernet (PoE) Enabled ....7 Connect External Sensors And Other Compatible Components ....7 How To Use Your Room Alert S Model Web Interface ........8 Status ....................8 Banner & Header ................9 Sensor Display Area .............. -

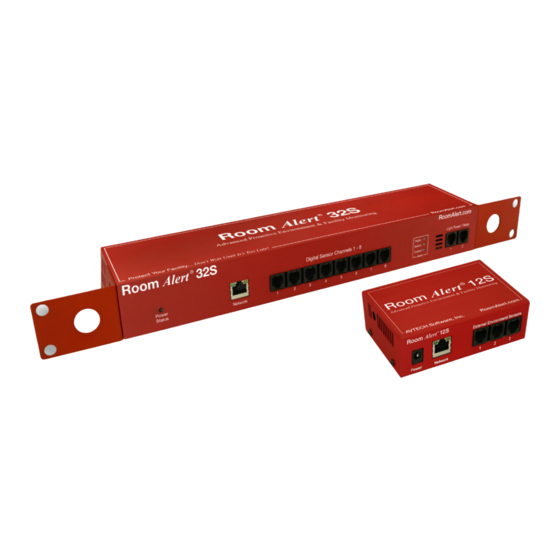

Page 4: Room Alert S Model Hardware Options
All manuals and user guides at all-guides.com Room Alert S Models (RA32S-DAP-RAS & RA12S-DAP-RAS) Room Alert S Model Hardware Options Room Alert 32S Front Power Ethernet Alarm Light Tower & Digital Port LEDs Relay Adapter Sensor Ports (PoE enabled) Ports... -
Page 5: Room Alert 12S
All manuals and user guides at all-guides.com Room Alert S Models (RA32S-DAP-RAS & RA12S-DAP-RAS) Room Alert 12S Front Ethernet Power Digital Port Sensor Port (PoE enabled) Ports Back Switch Reset Analog Sensor Button Input Ports Port Relay Output Port Internal Sensors •... -
Page 6: Room Alert Hardware Features
All manuals and user guides at all-guides.com Room Alert S Models (RA32S-DAP-RAS & RA12S-DAP-RAS) Room Alert Hardware Features An internal digital sensor monitors ambient Internal Temperature Sensor temperature with a range of -40° to 185° F (-40° to 85° C). -
Page 7: Standard Room Alert Packages
All manuals and user guides at all-guides.com Room Alert S Models (RA32S-DAP-RAS & RA12S-DAP-RAS) Standard Room Alert Packages Room Alert 32S The standard package includes: • One (1) Room Alert 32S ID Box • One (1) External Digital Active Power Sensor •... -
Page 8: How To Install Your Room Alert S Model
Your Room Alert is now powered and discoverable on your network! Use only AVTECH’s 5V 1A Power Adapter. Other voltages could damage the Room Alert hardware and void your warranty. If you don’t have an AVTECH NOTE 5V 1A Power Adapter, please visit our online store at AVTECH.com... -
Page 9: How To Use Your Room Alert S Model Web Interface
All manuals and user guides at all-guides.com Room Alert S Models (RA32S-DAP-RAS & RA12S-DAP-RAS) How To Use Room Alert S Model Web Interface You may configure your Room Alert through its built-in web interface. To access the interface, you may either: •... -
Page 10: Banner & Header
All manuals and user guides at all-guides.com Room Alert S Models (RA32S-DAP-RAS & RA12S-DAP-RAS) Banner & Header Banner At the top of the page runs the red Room Alert banner. • You may visit AVTECH.com by selecting the AVTECH logo in the banner. -
Page 11: Sensor Display Area
All manuals and user guides at all-guides.com Room Alert S Models (RA32S-DAP-RAS & RA12S-DAP-RAS) Sensor Display Area In the main viewing pane of the Status tab is the sensor display area. Here you may view your sensor data and temporarily change Status page settings. - Page 12 All manuals and user guides at all-guides.com Room Alert S Models (RA32S-DAP-RAS & RA12S-DAP-RAS) High And Low Reading Icons Arrows are displayed next to the highest and lowest readings on a sensor since the Room Alert last rebooted: Red upward arrow ....Highest reading since last reboot of Room Alert.
-
Page 13: Settings
All manuals and user guides at all-guides.com Room Alert S Models (RA32S-DAP-RAS & RA12S-DAP-RAS) Settings Accessing Settings To access your Room Alert’s settings: 1. Select Settings in the navigation bar to the left of your screen. 2. Next, enter your credentials in the Username and Password fields. - Page 14 All manuals and user guides at all-guides.com Room Alert S Models (RA32S-DAP-RAS & RA12S-DAP-RAS) Save Settings • A button. • A Clear Changes button. You may navigate among the Settings pages, making changes in different places, and then save the changes all at once. When you are ready to save all the modifications you’ve made,...
-
Page 15: Sensors
Sensors and Accessories sections of AVTECH.com. Notice the Use Alarm Profile drop-down menu next to each sensor. If you have an AVTECH Light Tower, Relay Switch or built-in relays on your Room Note Alert, you may configure Alarm Profiles to toggle them on and off when alarms are detected. - Page 16 1, or choose another profile from the drop-down menu. may leave the default, If you have an AVTECH Light Tower, Relay Switch or built-in relays on your Room Alert, you may configure Alarm Profiles to toggle them on and off when Note alarms are detected.
- Page 17 Analog Sensor Settings You may configure the 0-5 VDC analog sensor connected to your device’s built-in analog port(s) in these fields. In the example below, we are configuring AVTECH’s Current Loop 1. Enabled 1. First, enable the sensor by selecting in the set of fields to the right of the sensor configurations.
- Page 18 Profile 1, or choose another Alarm Profile from the drop-down menu. If you have an AVTECH Light Tower, Relay Switch or built-in relays on your Note Room Alert, you may configure Alarm Profiles to toggle them on and off when alarms are detected.
- Page 19 Alert defaults to alarming on “Closed,” as you can see above; you may, however, need to change that depending on your sensor. AVTECH’s Motion Sensor, for example, is “Open” when it detects movement and “Closed” when it doesn’t; in that case, you’d likely want to configure the sensor to alarm on “Open”...
- Page 20 Profile 1, or choose another Alarm Profile from the drop-down menu. If you have an AVTECH Light Tower, Relay Switch or built-in relays on your Note Room Alert, you may configure Alarm Profiles to toggle them on and off when alarms are detected.
- Page 21 Profile 1, or choose another Alarm Profile from the drop-down menu. If you have an AVTECH Light Tower, Relay Switch or built-in relays on your Room Alert, you may configure Alarm Profiles to toggle them on and off when Note alarms are detected.
-
Page 22: Alarms
All manuals and user guides at all-guides.com Room Alert S Models (RA32S-DAP-RAS & RA12S-DAP-RAS) Alarms Settings Alarms Navigate to → to open the Alarm Settings screen. Here you may configure light towers and relays. Light Tower/Relay Profile Configuration In this example, we’ll select and name a Light Tower w/Audio in LTA 1 and then configure its Profile 1. - Page 23 The Room Alert 12S offers a “Default” profile plus 3 additional profiles. Light Tower & Relay Adapter (LTA) A Light Tower & Relay Adapter gives you the option to add an AVTECH Light Tower, Light Tower w/Audio or Relay Switch to your Room Alert. You may also connect a low-voltage device directly to the built-in relay port on the Light Tower &...
- Page 24 All manuals and user guides at all-guides.com Room Alert S Models (RA32S-DAP-RAS & RA12S-DAP-RAS) Relay Action Configuration Here you may set the devices connected through the built-in relay output port(s) to turn on or off in response to your Room Alert sensors going in and out of alarm state.
- Page 25 All manuals and user guides at all-guides.com Room Alert S Models (RA32S-DAP-RAS & RA12S-DAP-RAS) Profile 1. You may also choose No Alarm 3. Note that the default for all sensors is if you do not want to associate your sensor with a profile.
-
Page 26: Network
All manuals and user guides at all-guides.com Room Alert S Models (RA32S-DAP-RAS & RA12S-DAP-RAS) Network Settings Network Navigate to → to open the Network Settings screen. Device Name To rename your Room Alert: 1. Select the automatically-assigned name in Device Name and enter a new one of up to 30 characters. - Page 27 All manuals and user guides at all-guides.com Room Alert S Models (RA32S-DAP-RAS & RA12S-DAP-RAS) IP Address Configuration—Static IP To assign a static IP address: Use The Following IP Configuration. 1. Select 2. In IP Address, enter the new static IP address.
- Page 28 All manuals and user guides at all-guides.com Room Alert S Models (RA32S-DAP-RAS & RA12S-DAP-RAS) Auto Negotiate 1. You may uncheck and choose: ○ For Speed, 100 Mpbs Mbps. ○ For Duplex, Full or Half. 2. Select Save Settings at the top or bottom of the page. Your Room Alert will automatically reboot and commit your changes.
-
Page 29: Email
All manuals and user guides at all-guides.com Room Alert S Models (RA32S-DAP-RAS & RA12S-DAP-RAS) Email You may configure your Room Alert to send alerts via email and email-to-SMS. Navigate to Settings → Email to open the Email Settings screen. 1. Check Email Enabled. - Page 30 All manuals and user guides at all-guides.com Room Alert S Models (RA32S-DAP-RAS & RA12S-DAP-RAS) 4. In Mail Server: • In Domain Name/IP, enter the domain name or IP address of your mail server. • In Secure Connection, select the checkbox if your mail server requires SSL or TLS encryption.
-
Page 31: Snmp
All manuals and user guides at all-guides.com Room Alert S Models (RA32S-DAP-RAS & RA12S-DAP-RAS) Simple Network Management Protocol (SNMP) Because your Room Alert is fully SNMP-compliant, you have the option to monitor it with -party monitoring application capable of performing SNMP queries. You may configure... - Page 32 All manuals and user guides at all-guides.com Room Alert S Models (RA32S-DAP-RAS & RA12S-DAP-RAS) Room Alert sends values to your 3 -party SNMP monitoring application in 4-digit format by default. 78.55° F, for example, appears as 7855. In 2-digit format, your values are truncated, not rounded to the nearest number.
- Page 33 All manuals and user guides at all-guides.com Room Alert S Models (RA32S-DAP-RAS & RA12S-DAP-RAS) configured to use. The default is HMAC MD5 authentication protocol. • In Authentication Password, enter the authentication password that’s configured in your SNMP monitoring program. • In Privacy Password, enter the privacy password that’s configured in your SNMP monitoring program.
-
Page 34: Security
All manuals and user guides at all-guides.com Room Alert S Models (RA32S-DAP-RAS & RA12S-DAP-RAS) Security The username and password on your Room Alert 32S &12S protect all of its Settings pages. Default Credentials By default, your Room Alert has these credentials: •... -
Page 35: Advanced
All manuals and user guides at all-guides.com Room Alert S Models (RA32S-DAP-RAS & RA12S-DAP-RAS) Advanced You may configure a number of advanced options here, including Status screen defaults, time & date, trace output and push to RoomAlert.com. Navigate to Settings Advanced to open the Advanced Settings screen. - Page 36 All manuals and user guides at all-guides.com Room Alert S Models (RA32S-DAP-RAS & RA12S-DAP-RAS) the Status screen to refresh at. You may enter a value from 1 to 255. The default is 5 seconds. • In Web Port, you may change the port number your web browser uses to connect to your Room Alert’s web interface.
- Page 37 All manuals and user guides at all-guides.com Room Alert S Models (RA32S-DAP-RAS & RA12S-DAP-RAS) • To configure trace output, first select Enable. • In Port, you may leave the default port, 143, or enter another port number. You may then use any standard telnet or terminal application to view the trace on the configured port.
-
Page 38: For More Information
All manuals and user guides at all-guides.com Room Alert S Models (RA32S-DAP-RAS & RA12S-DAP-RAS) For More Information... Visit our Support Center. Go to https://AVTECH.com/Support/ to view our collection of: • Frequently Asked Questions • Installation Notes • Product Tours • and more Find us on YouTube.
