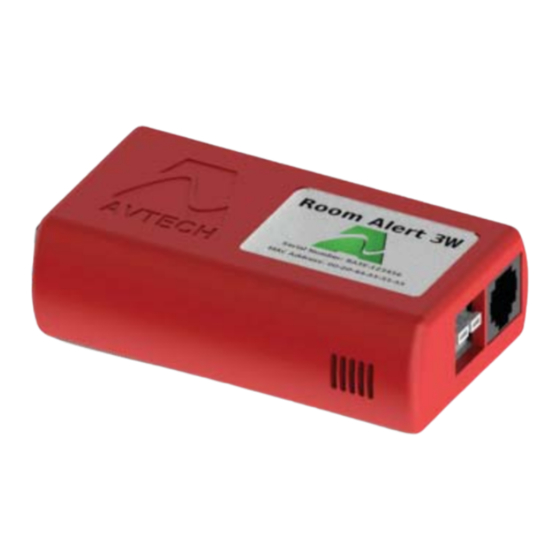

Avtech Room Alert 3 Wi-Fi User's Manual & Reference Manual

Temperature & environment monitoring
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Room
Temperature & Environment Monitoring... Made Easy!
Phone
401.628.1600
Fax
401.628.1601
Web
AVTECH.com
Alert
3
®
User's Guide &
Reference Manual
AVT-150401.06

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Room Alert 3 Wi-Fi and is the answer not in the manual?

Questions and answers

Related Manuals for Avtech Room Alert 3 Wi-Fi

Summary of Contents for Avtech Room Alert 3 Wi-Fi

  • Page 1 Room Alert ® Temperature & Environment Monitoring... Made Easy! Phone 401.628.1600 User’s Guide & 401.628.1601 Reference Manual AVTECH.com AVT-150401.06...
  • Page 2 Analog Power & Temp Sensors Main / UPS Power Air Flow, Sound, Light Switch Sensors Flood / Water Motion, Room Entry Dry Contacts Current Loops (Amperage) Panic Button, Security Low Voltage Sensors AVTECH Software, Inc.  Sales 888.220.6700  Store EnvironmentMonitor.com  Web AVTECH.com...
  • Page 3 On behalf of the entire team at AVTECH, we say, “Thank You!” It is our privilege to serve you, our valued customer.
  • Page 4 All Rights Reserved. No part of this book may be used or reproduced for commercial benefi t in any form or by any means, or stored in a database or retrieval system, without prior written permission of AVTECH Software Inc., except in the case of brief quotations embodied in articles and reviews.

  • Page 5: Table Of Contents

    Front .............................3 Back .............................4     How To Install Your Room Alert 3 Wi-Fi ..................5 Step 1: Connect Your Room Alert 3 Wi-Fi To A Power Source ..........5   Step 2: Configure Your Room Alert 3 Wi-Fi’s Network Settings..........5    ...

  • Page 6: Introduction To Room Alert 3 Wi-Fi

    Get up and running in minutes with easy “Plug and Play” setup.  Easily mount Room Alert 3 Wi-Fi—hang it from a nail and you’re good to go!  Monitor areas without a standard Ethernet connection with the built-in Wi-Fi.

  • Page 7: Room Alert 3 Wi-Fi Package Contents

    The standard Room Alert 3 Wi-Fi package includes:  One (1) Room Alert 3 Wi-Fi ID Box  One (1) Room Alert 3 Wi-Fi User’s Guide & Reference Manual (You’re reading it now.)  One (1) Package Of Literature & Additional Information...

  • Page 8: Back

    2-wire cable. Digital Sensor Port A standard RJ-11 jack connects any AVTECH digital sensor to your Room Alert 3 Wi-Fi via a standard RJ- 11 (straight through) telephone cord. NOTE For more information about AVTECH sensors and accessories,...

  • Page 9: How To Install Your Room Alert 3 Wi-Fi

    Network Connection Status Icon open the list of your networks.  You’ll see the Room Alert 3 Wi-Fi listed as an available wireless network. Its name (also known as its SSID) will be in this format: 3WXXXXXX.  Select that name, and then select Connect.

  • Page 10: Open The Room Alert 3 Wi-Fi's Web Interface

    This will automatically disconnect your computer from your normal wireless network. You’ll reconnect to it later in this process.  When you’re asked for the Room Alert 3 Wi-Fi’s network security key, enter the following key, which is case-sensitive: RoomAlert3W ...
  • Page 11  When you are asked for login credentials, enter the Room Alert 3 Wi-Fi’s default username and password: o Username: admin o Password: PASSWORD  The Room Alert 3 Wi-Fi’s interface will now open to the Status page at its “soft AP”: AVTECH Software, Inc.

  • Page 12: Connect The Room Alert 3 Wi-Fi To Your Wireless Network

    Room Alert 3 Wi-Fi C. Connect The Room Alert 3 Wi-Fi To Your Wireless Network Once you are in the Room Alert 3 Wi-Fi’s interface, navigate to SettingsQuickConnect in order to configure the device to use your wireless network.  In “Network Name,” select your Wifi network’s network name (also called its SSID) from the list of networks.
  • Page 13 Then select to commit your changes to the device.  Your Room Alert 3 Wi-Fi will automatically obtain an IP address on your network. Notice that the “L” LED on the Room Alert lights solid when it successfully connects.

  • Page 14: Disconnect From Your Room Alert 3 Wi-Fi's Wireless Access Point

    Room Alert 3 Wi-Fi D. Disconnect From Your Room Alert 3 Wi-Fi’s Wireless Access Point  Disconnect from the Room Alert 3 Wi-Fi’s wireless access point by selecting it’s name (in this example, 3W98067E) and Disconnect in your wireless network list.

  • Page 15: Step 4: Configure Alerts In Your Gotomydevices Account

    Room Alert 3 Wi-Fi Step 4: Configure Alerts In Your GoToMyDevices Account  Log in to your account at GoToMyDevices.com.  Select Devices. Your Room Alert 3 Wi-Fi should automatically appear in your list of devices.  Select AlertsCreate Alert to begin configuring alerts for your Room Alert 3 Wi-Fi.

  • Page 16: How To Use Room Alert 3 Wi-Fi's Web Interface

     Select your Room Alert 3 Wi-Fi in Device ManageR and click the “Open Web” button.  Type the IP address of your Room Alert 3 Wi-Fi monitor directly into the address bar of your web browser. Your Room Alert 3 Wi-Fi’s web interface has 2 tabs: ...

  • Page 17: Current Sensor Status Bar

    Room Alert 3 Wi-Fi and make temporary adjustments to the sensor display.  You may find your Room Alert 3 Wi-Fi’s name and MAC address here.  To determine if your Room Alert 3 Wi-Fi’s firmware is current, you may click Room Alert 3 Wi-Fi vX.X.X at the right.

  • Page 18: Sensor Display Area

    Room Alert 3 Wi-Fi Sensor Display Area In the main viewing pane of the Status tab is the Sensor Display Area. Here you may view the current readings for your sensors, which are displayed left to right as follows: Channel 1:...

  • Page 19: Settings

    QuickConnect Navigate to to open the QuickConnect screen. You may select the wireless network you wish to connect the Room Alert 3 Wi-Fi to in this page. For instructions, please refer back to Step 2C Connect the Room Alert 3 Wi-Fi to your wireless network in this manual.

  • Page 20: Network

    Room Alert 3 Wi-Fi Network  Settings Network Navigate to to open the Network screen. You may view and configure your Room Alert’s soft access point and wireless network settings on this page. Wireless Local Area Network (wlan0) To view your wireless network settings on the “Network” page: ...
  • Page 21 + Status: To configure your wireless network settings on the “Network” page, select wlan0 Interface Configuration. You may set a static IP address for your Room Alert 3 Wi-Fi by following the steps below: 1. In “State,” leave the default, Enabled selected.

  • Page 22: Users

    3. Select Save to commit your changes to the device. The next time you log in to your Room Alert 3 Wi-Fi web interface, enter these credentials: Username: admin Password: <your new password> You may not change the username for your Room Alert 3 Wi-Fi’s web interface.

  • Page 23: Wlan Profiles

    Room Alert 3 Wi-Fi WLAN Profiles  Settings WLAN Profiles Navigate to to open the WLAN Profiles screen. You may add or delete network connections here. To delete a network connection from your WLAN Profile list: 1. Select Delete. 2. Select Apply to temporarily save your changes.

  • Page 24: Introduction To Avtech's Device Manager

    Automatically text or call contacts with alerts using a text, voice or GSM (satellite) modem. A license for Device ManageR is included FREE with the purchase of any AVTECH environment monitor. Download it now from your account at AVTECH’s state-of-the art cloud service, GoToMyDevices.com.
  • Page 25 INCLUDES: Main Power Sensor With 25' Cable, 5V Power Adapter & Installation Note. INCLUDES: Mini UPS & Power Sensor With 25' Cable & Installation Note. More Sensors, Cameras, Packages & Accessories Online. Order through your favorite reseller, direct from AVTECH or online at EnvironmentMonitor.com...
  • Page 26 INCLUDES: Current Loop 1 With 25' Cable, Mounting Screws & Installation Note. INCLUDES: Current Loop 2 With 25' Cable, Mounting Screws & Installation Note. More Sensors, Cameras, Packages & Accessories Online. Order through your favorite reseller, direct from AVTECH or online at EnvironmentMonitor.com...
  • Page 27 INCLUDES: Smoke Sensor w/Escape Light, 25' Cable, 9V Alkaline Battery, INCLUDES: Panic Button 1 With 25' Cable & Installation Note. Mounting Screws & Installation Note. More Sensors, Cameras, Packages & Accessories Online. Order through your favorite reseller, direct from AVTECH or online at EnvironmentMonitor.com...
  • Page 28 INCLUDES: PoE Midspan Injector (5V, RoHS), Power Cable & Installation Note. More Sensors, Cameras, Packages & Accessories Online. Room Alert 32E/W, 12E & 3E require use of LT-32-ADP. Order through your favorite reseller, direct from AVTECH or online at EnvironmentMonitor.com...
  • Page 29 Plugin Bundles For Device ManageR Easy-To-Use Plugins Enhance The Capabilities Of AVTECH’s Device ManageR Plugin - Windows Bundle (Shutdown, Reboot, Log Off & Script) ADM-WINB-PAS • Shutdown Windows Systems Remotely Across The Network. When used with the Device ManageR, this plugin can perform a forced power-down of target systems. Use it to shutdown an unlimited number of Windows systems across the network...
  • Page 30 Plugins for AVTECH’s Device application enhance the capabilities, ease-of-use and overall user experience of working with Room Alert monitors. ® Get the most out of environment monitoring with a complete solution. Order through your favorite reseller, direct from AVTECH or online at EnvironmentMonitor.com...
  • Page 31 Orders@AVTECH.com (Anytime) - Send your organization’s purchase order (PO), completed and scanned quote form or order instructions to AVTECH via email. We prefer to receive POs in PDF © Copyright 1988-2015 format although can accept Word and Excel formats if necessary. Other fi le formats are not accepted.
  • Page 32 AVTECH.com Protect Your Facility... Don’t Wait Until It’s Too Late!
