Sensor Display Area - Avtech room alert 4e User Manual And Reference Manual

Room Alert 4E

Sensor Display Area

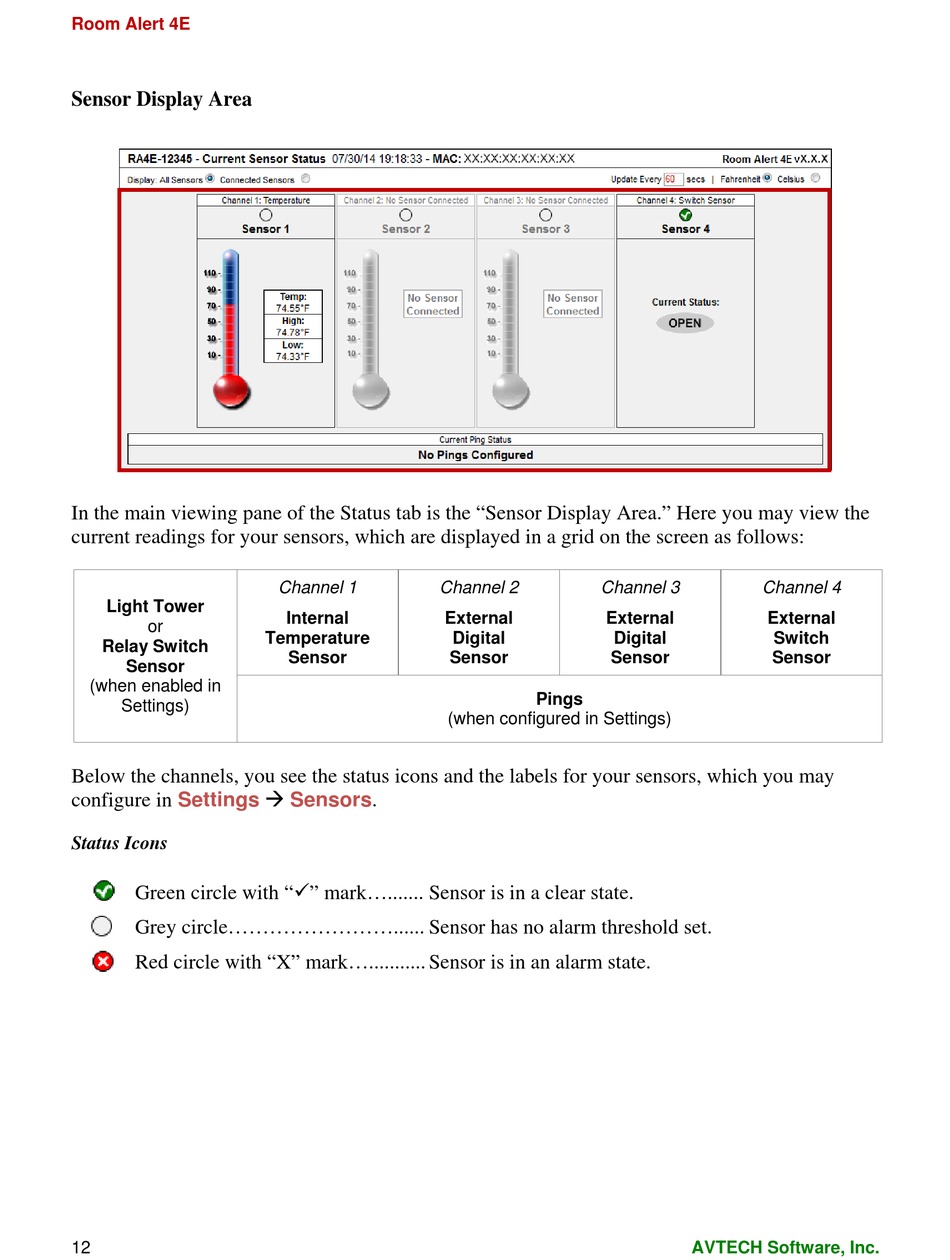

In the main viewing pane of the Status tab is the "Sensor Display Area." Here you may view the
current readings for your sensors, which are displayed in a grid on the screen as follows:
Light Tower
or
Relay Switch
Sensor
(when enabled in
Settings)
Below the channels, you see the status icons and the labels for your sensors, which you may
Settings
configure in
Status Icons
Green circle with "" mark.......... Sensor is in a clear state.
Grey circle.............................. Sensor has no alarm threshold set.
Red circle with "X" mark.............. Sensor is in an alarm state.
12
Channel 1 Channel 2
Internal
Temperature
Sensor
 Sensors.
Channel 3
External External
Digital Digital
Sensor Sensor
Pings
(when configured in Settings)
Channel 4
External
Switch
Sensor
