PowerBOX 3

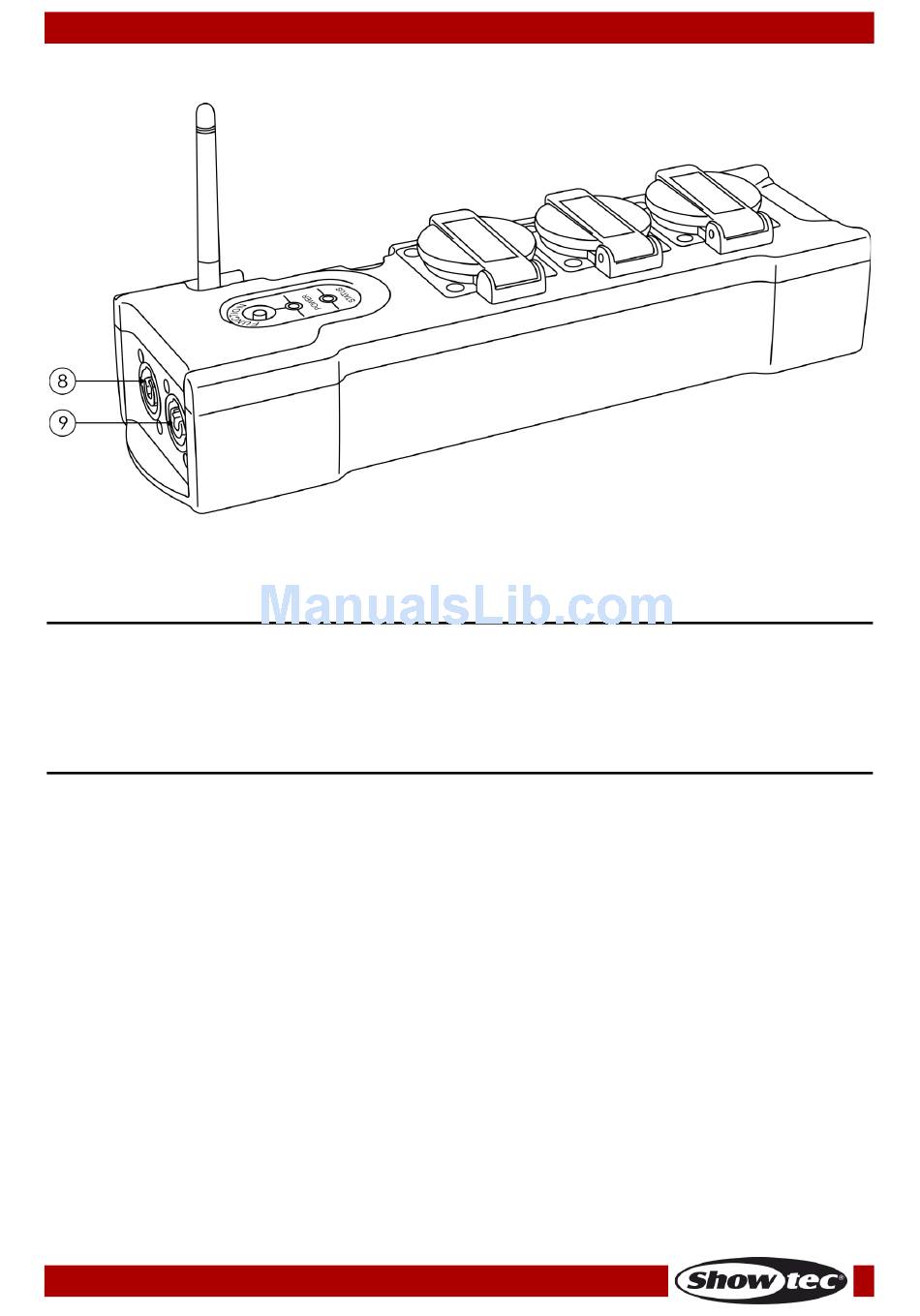

Backside

08) 220-240V Pro power connector IN
09) 220-240V Pro power connector OUT

Installation

Remove all packing materials from the PowerBOX 3. Check if all foam and plastic padding is removed.
Connect all cables.
Do not supply power before the whole system is set up and connected properly.
Always disconnect from electric mains power supply before cleaning or servicing.
Damages caused by non-observance are not subject to warranty.

Set Up and Operation

Follow the directions below, as they pertain to your preferred operation mode.
Before plugging the unit in, always make sure that the power supply matches the product specification
voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa.
Connect the device to the main power supply.

Power ON

01) Plug one end of the included Schuko to Pro power cable to the appropriate 220-240V AC power
supply and the other end to the power IN connector (08) on the device.
02) Plug other devices into the remaining 3 x Schuko outputs (03) or 2 x Pro power outputs (02/09).
03) Using a DMX cable, connect your DMX devices to the 3-pin DMX connector (01).

Linking

01) Power on the PowerBOX 3.
02) Make sure that the PowerBOX 3 is not linked to any transmitter. If the PowerBOX 3 is linked, it needs to
be unlinked (see below).
03) If you want to link the PowerBOX 3 to a transmitter, please read the manual of the transmitter in
question.
04) You can link receivers at any time, also during operation. Bear in mind that DMX transmission will then
be interrupted.
Ordercode: 90660
7
Fig. 02
