- Page 1 MANUAL ENGLISH Stage Blinder 2 Blaze Ordercode: 30782 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
Stage Blinder 2 Blaze Table of contents Warning ....................................2 Safety Instructions ................................. 2 Operating Determinations ............................4 Rigging .................................... 4 Connection with the mains............................5 Return Procedure ................................6 Claims ....................................6 Description of the device ..............................7 Overview ..................................7 Backside .................................. -
Page 3: Warning
Your shipment includes: ● Showtec Stage Blinder 2 Blaze ● Pro power True 1 to Schuko power cable (1,5 m) ●... - Page 4 ● If your Showtec device fails to work properly, discontinue the use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service.
-
Page 5: Operating Determinations
Stage Blinder 2 Blaze Operating Determinations ● This device is not designed for permanent operation. Consistent operation breaks will ensure that the device will serve you for a long time without defects. ● The minimum distance between light output and the illuminated surface must be bigger than 0,8 meter. -
Page 6: Connection With The Mains
Stage Blinder 2 Blaze The Stage Blinder 2 Blaze can be placed on a flat surface or fitted to any kind of truss with a clamp. Improper installation can cause serious damage to people and property! Connection with the mains Connect the device to the mains with the power-plug. -
Page 7: Return Procedure
Stage Blinder 2 Blaze Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. -
Page 8: Description Of The Device

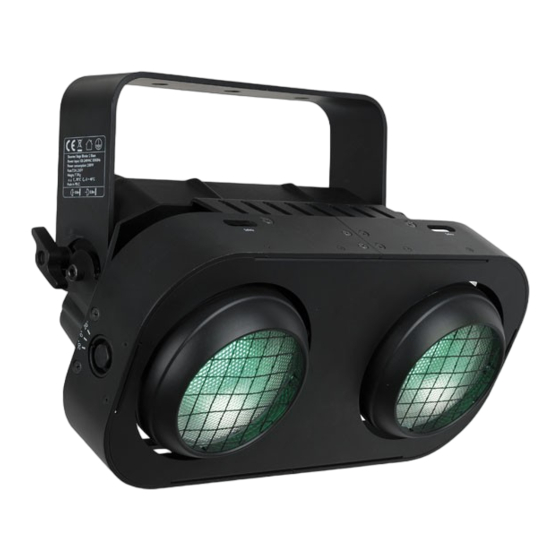

Stage Blinder 2 Blaze Description of the device Features The Showtec Stage Blinder 2 Blaze is a compact and powerful blinder with high output and great effects. ● Very punchy 2-head blinder ● RGB blaze effect ● Manual Pan adjustment of each head ●... -
Page 9: Backside
09) 3-pin DMX signal connector OUT IP65 Installation Remove all packing materials from the Stage Blinder 2 Blaze. Check that all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly. -
Page 10: Control Modes
Stage Blinder 2 Blaze Control Modes There are 6 modes: ● Auto ● Built-in programs ● Manual ● Halogen ● Master/Slave ● DMX-512 (1CH, 4CH, 8CH, 9CH) One Stage Blinder (Auto, Built-in programs, Manual and Halogen) 01) Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation. -
Page 11: Multiple Stage Blinders (Dmx Control)
Stage Blinder 2 Blaze Multiple Stage Blinders (DMX Control) 01) Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation. 02) Always use a safety cable (ordercode 70140 / 70141). 03) Plug the end of the electric mains power cord into a proper electric power supply socket. -
Page 12: Fixture Linking
DAP Audio DMX Terminator 3-pin. Ordercode FLA42. ● DAP Audio DMX Terminator 5-pin. Ordercode FLA43. Note: connect the Stage Blinder 2 Blaze with the dedicated special XLR cables for outdoor use. FL73150 – Neutrik DMX Cable 3-pin XLR IP65 (1,5 m) FL733 –... -
Page 13: Control Panel
Stage Blinder 2 Blaze The Stage Blinder 2 Blaze can be operated with a controller in control mode or without the controller in stand-alone mode. Control Panel A) OLED display UP button C) MODE button D) DOWN button SET button Fig. -
Page 14: Menu Overview
Stage Blinder 2 Blaze Menu Overview Ordercode: 30782... - Page 15 Stage Blinder 2 Blaze Ordercode: 30782...
-
Page 16: Main Menu Options
Stage Blinder 2 Blaze Main Menu Options 01) Upon start-up, the display will show: 02) After 2 seconds, the display will show: 03) Press the UP/DOWN buttons to toggle through the menus. 04) Press the SET button to open the desired menu. -
Page 17: Manual Color Mode
Stage Blinder 2 Blaze 2. Manual Color mode With this menu you can set the static colors. While in the main menu, press the UP/DOWN buttons to choose MANUAL. Press the SET button to open the menu. Press the UP/DOWN buttons to toggle through the static colors: Cold White (1-2), Warm White (1-2), Red, Green and Blue. -
Page 18: Auto
Stage Blinder 2 Blaze 4. Auto With this menu, you can activate the auto show. 01) While in the main menu, press the UP/DOWN buttons to choose AUTO. 02) Press the SET button to open the menu. The display will show: 03) Press the UP/DOWN buttons to select YES or NO. -
Page 19: Program 1
Stage Blinder 2 Blaze 5.1. Program 1 01) If you have chosen program 01, the display will show: 02) Press the UP/DOWN buttons to choose one of the 2 options: ● COLOR ● STROBE 03) Press the SET button to enter the desired menu. -
Page 20: Settings
Stage Blinder 2 Blaze 7. Settings With this menu you can set the device’s settings. 01) While in the main menu, press the UP/DOWN buttons to choose SETTINGS. 02) Press the SET button to open the menu. 03) Press the UP/DOWN buttons to toggle through the following menus: CURVES SELECT, DIMMER SPEED, DMX FAIL, DMX SYNC, LOCK, KEY BACKLIGHT and FACTORY. -
Page 21: Dimmer Speed
Stage Blinder 2 Blaze 7.2. Dimmer Speed With this menu you can set the dimmer speed. 01) Press the UP/DOWN buttons to select FAST or SMOOTH. 02) Press the SET button to confirm your choice. 7.3. DMX Fail With this menu you can set the device’s behavior in case of a DMX failure. -
Page 22: Lock
Stage Blinder 2 Blaze 7.5. Lock With this menu you can set the safety lock, restricting access to the main menu. 01) Press the UP/DOWN buttons to select one of the 2 options: ● ON: when no button is pressed within 30 seconds, the device’s main menu will be locked. -
Page 23: Dmx Channels
Stage Blinder 2 Blaze DMX Channels 1 Channel Channel 1 – Tungsten intensity 0-255 Gradual adjustment Tungsten, from dark to brightest 4 Channels Channel 1 – Tungsten intensity 0-255 Gradual adjustment Tungsten, from dark to brightest Channel 2 – Red dimmer intensity... -
Page 24: Channels
Stage Blinder 2 Blaze 9 Channels Channel 1 – White dimmer intensity POD 1 0-255 Gradual adjustment White, from dark to brightest Channel 2 – Amber dimmer intensity POD 1 0-255 Gradual adjustment Amber, from dark to brightest Channel 3 – White dimmer intensity POD 2... -
Page 25: Maintenance
04) The electric power supply cables must not show any damages or material fatigue. The Stage Blinder 2 Blaze requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light output will be significantly reduced. Disconnect the mains power supply, and then wipe the cover with a damp cloth. - Page 26 Check if power is switched on and No power to the fixture One or more cables are plugged in fixtures do not ● Return the device to your Showtec function at all Internal fuse blown dealer The controller is not connected ●...
-
Page 27: Product Specifications
Stage Blinder 2 Blaze Product Specifications Model: Showtec Stage Blinder 2 Blaze Input voltage: 100-240V AC, 50/60Hz Power consumption: 205W Dimensions: 400 x 220 x 262 mm (LxWxH) Weight: 7,3 kg Operation and Programming Signal pin OUT: pin 1 earth, pin 2 (-), pin 3 (+) -
Page 28: Dimensions
Stage Blinder 2 Blaze Dimensions Ordercode: 30782... -
Page 29: Notes
Stage Blinder 2 Blaze Notes Ordercode: 30782... - Page 30 Stage Blinder 2 Blaze Ordercode: 30782...
- Page 31 Stage Blinder 2 Blaze Ordercode: 30782...
- Page 32 ©2018 Showtec...
