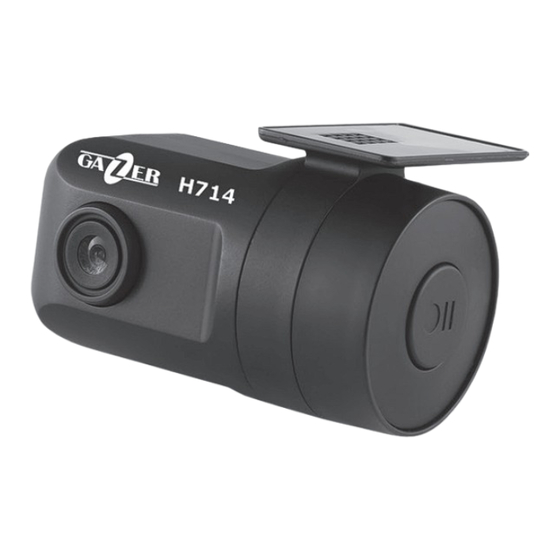

Gazer H714 Congratulations on your purchase of Gazer mobile video recorder. Please read this manual carefully, before using the device. Warnings Do not apply any chemicals when cleaning the device. Only use soft cloth to clean the frame and the mirror surface.
Important information Warning! Do not insert or remove the SD card when the device is on - this can lead to MVR malfunction. Wait for 30 seconds after MVR shutdown, make sure that all the lights are off for at least 10 seconds, and only then safely remove the memory card.
Package contents Gazer MVR H714 Extra 3M scotch tape for mounting User Manual Gazer micro SDHC memory card+ adapter Power supply cable and composite RCA video output...
Controls •REC Button – start or stop - power indicator (red). А recording. - sound recording indicator (yellow). LEFT button – menu navigation. - video recording indicator (blue). RIGHT button – menu Memory card slot micro SD. navigation. Do not insert or remove your memory OK button –...
Connecting MVR Note: Gazer H714 MVR must be connected to the car’s onboard electrical system. For correct MVR installation, please contact your car dealer or service station. To prevent the violation of your car warranty rules and conditions, please consult with the car service station authorized to perform warranty maintenance.
Usage You can use the MVR for security recordings when the car is parked. When the ACC powers off the MVR will continue recording for the period set in the «Auto-off time». Only after that will it shut down. If «Never» setting is selected, the MVR continues recording and shuts down only when the battery voltage drops below the value set in the «Car battery protect»...
MVR installation Warning! Wipe the surface of the windshield before installing. Make sure the installation place is dry and clean. Do not install the mount on 3M scotch tape at temperature below +5°C. Because of such low temperature and the difference between the temperature inside the car and outdoors, the 3M scotch will lose its adhesive properties and will not be able to fix the mount properly.
MVR control Power Sound Recording Status indicator indicator indicator description А (red) (yellow) (blue) АСС is on MVR is connected to the power supply, memory card is missing, damaged or full MVR is connected to the power supply, date and time are not set MVR is connected to the power supply, the microphone is on, and video recording is not working...
Functions of buttons Short press – press and release the button. Long press – press and hold for 5 seconds and then release the button. In standby mode Button Pressing Function Short Turn on the video recording •REC Long Enable or disable the MVR Short Enable or disable the microphone LEFT...
Preparing Memory Card Before using the MVR, it is important to format your memory card using specialized tools. We recommend using a free SD Formatter utility. Use a search engine to find and download it from one of many Internet resources or from the web portal http://www.sdcard.org.
Connect the MVR to a display and plug in the power supply. The recorder will ask to format the memory card if it is used for the first time. This way the MVR will be able to write Gazer Player software on the memory card for future video viewing.
Settings menu HD (1280x720), SD (648x480) Specifies the resolution of recorded videos. Recording quality It is recommended to use the 1280x720 mode, 30fps, if you use a 8-32 GB memory card. 30 fps, 15 fps, 5 fps Recording speed setting. Frame rate It is recommended to use the 30 fps recording speed.
Connect the memory card to your computer and run the file. Gazer Player After that, the Gazer Player window will appear on the screen. Using this program you can view your videos, make screenshots, delete or save videos in AVI format on the your PC.
Display Mode Select the size of the window by using the buttons at the top of the Gazer Player panel: Small screen Medium screen Large screen Shock sensor schedule (G-SENSOR): This table shows changes in acceleration of X, Y and Z axes.
Gazer Player Button Function Select a folder to view files. Make a screenshot and save it on your PC in jpg format. Save the selected video file on your PC in AVI format. Delete the selected file. Settings. Start playback, pause, stop playback, fast-forward or slow motion.
Display composite video output Memory card support micro SDHC, up to 32Gb Memory card included Yes, Gazer micro SDHC + adapter Date and time display Auto start on power up 12V power supply, connected Power to the car’s cigarette lighter socket...
