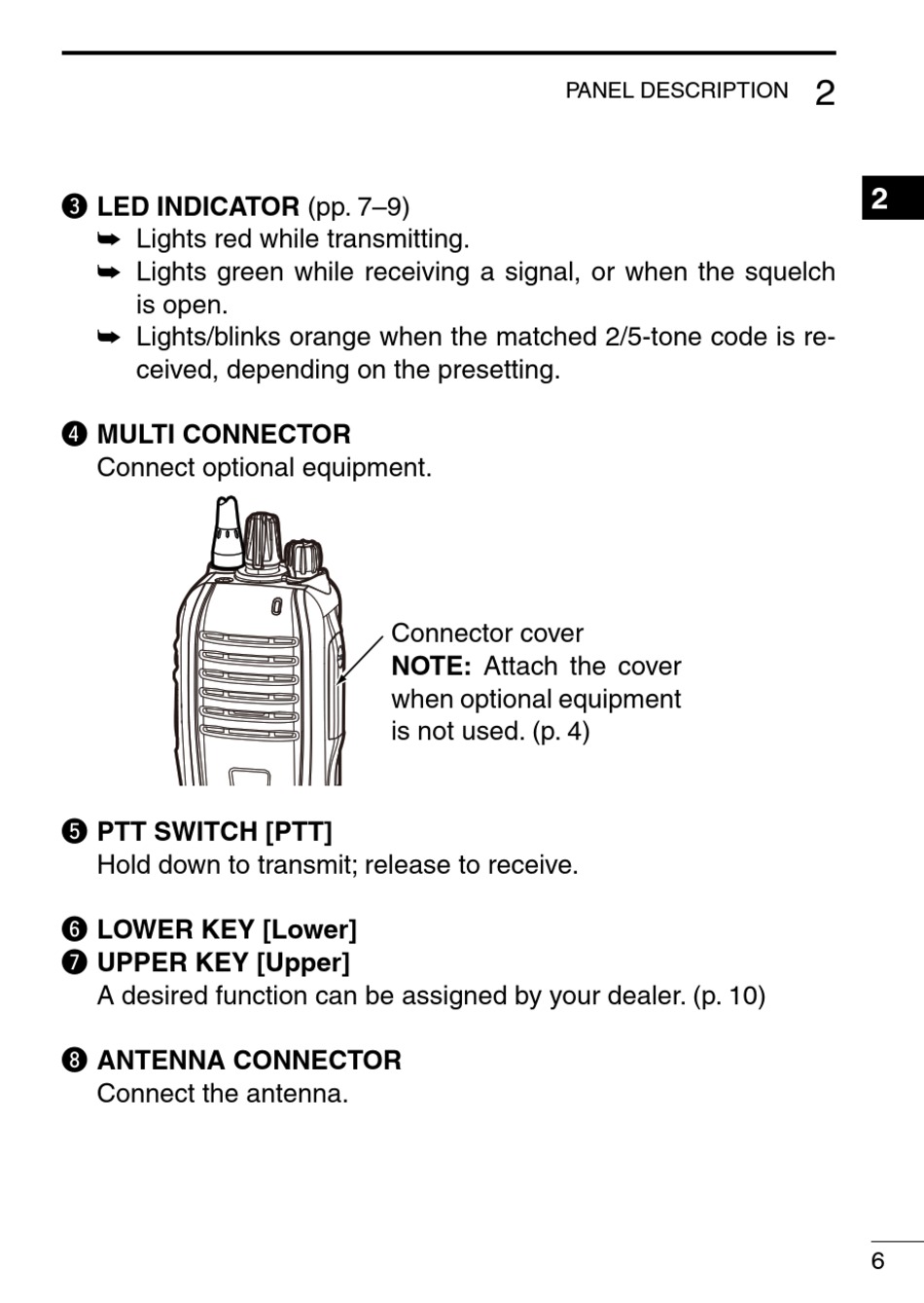

e LED INDICATOR (pp. 7–9)
Lights red while transmitting.
➥
Lights green while receiving a signal, or when the squelch
➥
is open.
Lights/blinks orange when the matched 2/5-tone code is re-
➥
ceived, depending on the presetting.
r MULTI CONNECTOR
Connect optional equipment.
t PTT SWITCH [PTT]
Hold down to transmit; release to receive.
y LOWER KEY [Lower]
u UPPER KEY [Upper]
A desired function can be assigned by your dealer. (p. 10)
i ANTENNA CONNECTOR
Connect the antenna.
PANEL DESCRIPTION
Connector cover
NOTE: Attach the cover
when optional equipment
is not used. (p. 4)
