Connect the WS input/output peripherals.
Keyboard and Mouse
The WS is supplied with a keyboard and optical mouse. USB connections are
provided on the WS back panel and two 10 ft. USB extension cables are
provided to allow the WS to be rack-mounted with other equipment while the
mouse and keyboard are positioned in a nearby work area.
Monitors
WS8 - A high-performance video card is provided for support of up to two
monitors. The primary DVI input (4a below) to the high-performance video card
MUST be used for your monitor and the secondary DVI connection (4b below)
is recommended for an additional monitor. Two DVI cables are provided.
Optionally, one or two monitors may be provided.
WS4 - A high-quality video card is provided for support of a single monitor. A
single DVI cable is provided.
Note: While there are alternate video connectors on the back panel (DP, VGA,
DVI-D), they connect to the standard graphic components on the WS
motherboard and are disabled when the video card is in use.

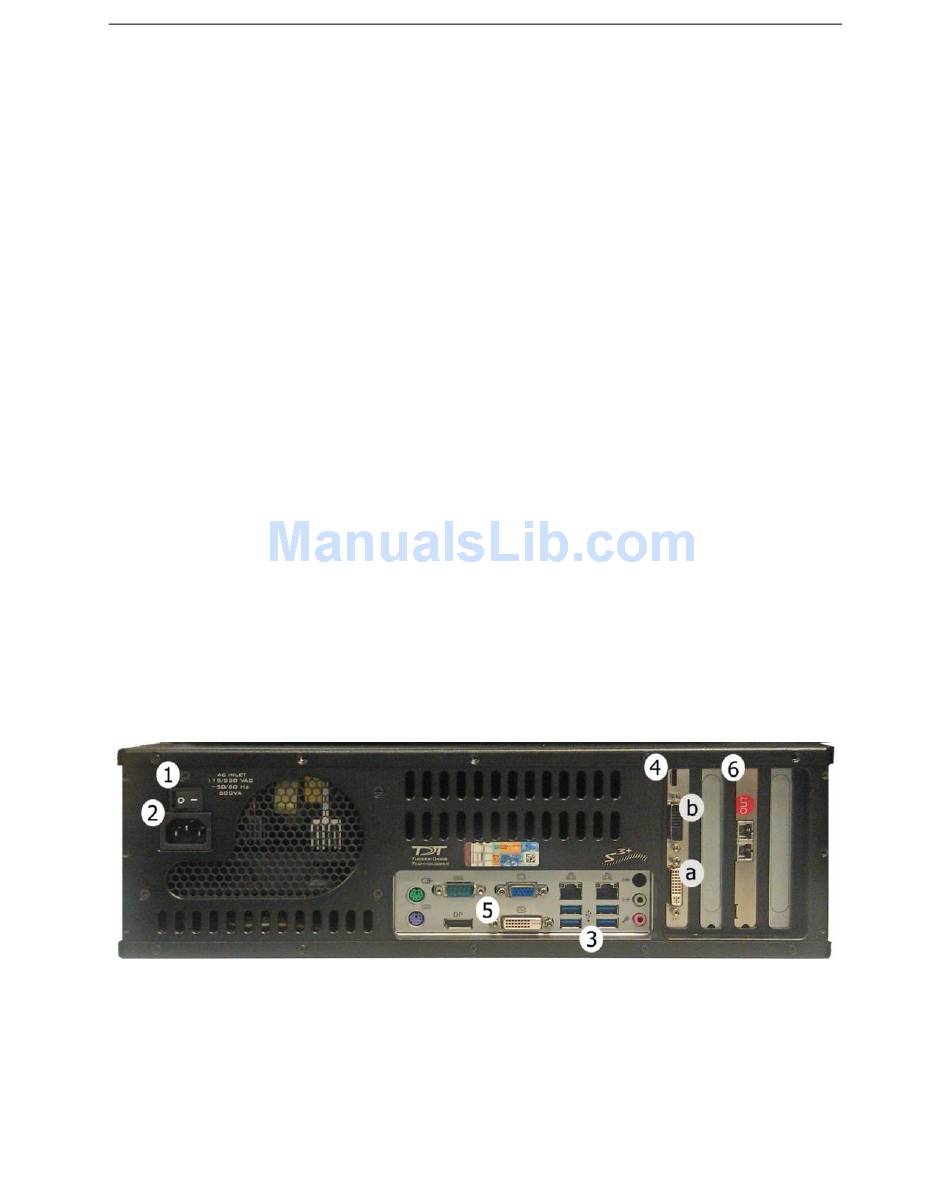

1. Power Supply On/Off Switch
2. AC Power Cord Input
3. USB Inputs, used for provided Mouse and Keyboard
4. Video Card with DVI and HDMI-mini inputs
Back Panel Connections
