System 3 Installation Guide

Connecting Multiple Devices

Multiple processors (or other interface-dependent devices mounted in a zBus
chassis) can be connected to the WS's Optibit interface. The most common
configuration consists of multiple RZ devices, such as multiple RZ2s used for

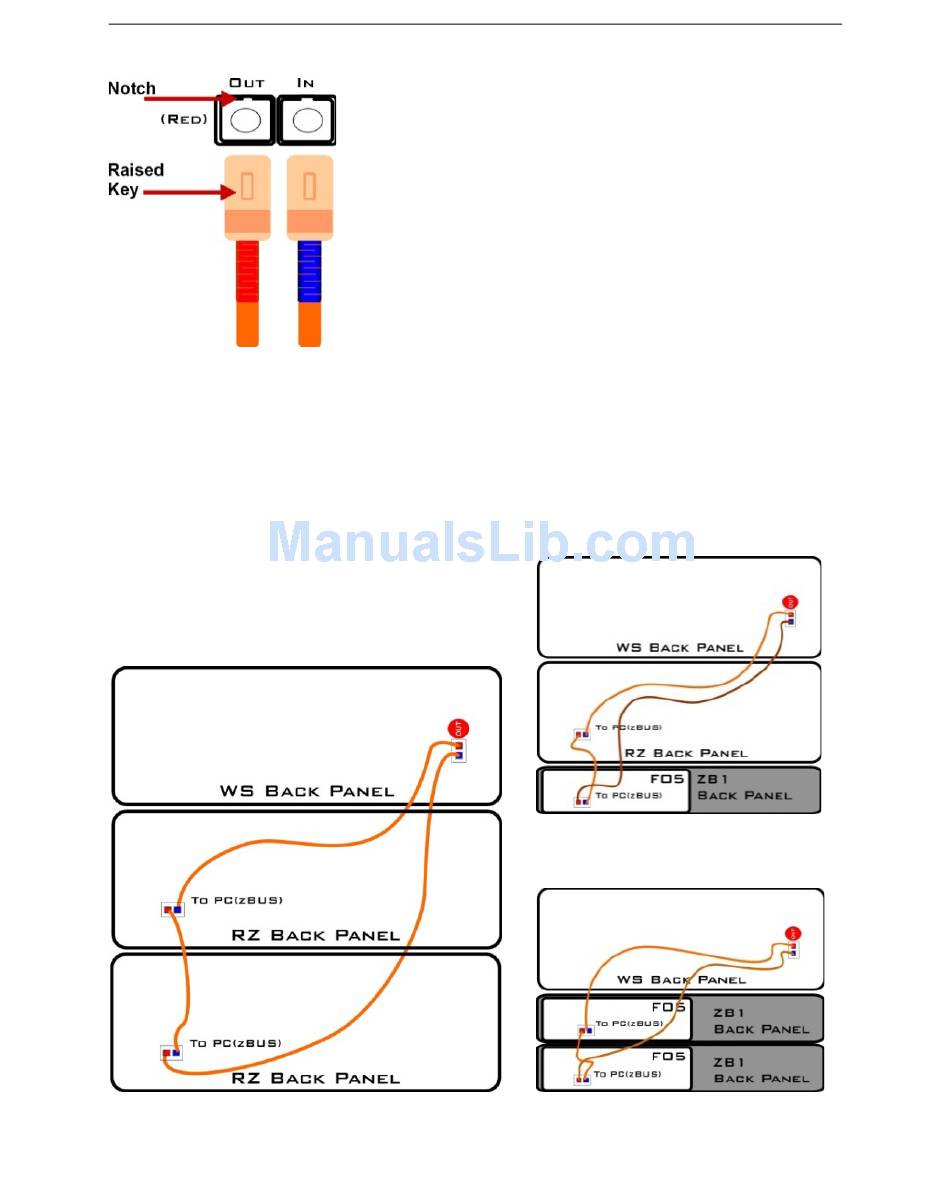

processing higher-channel counts. See connection diagrams below for
additional configurations.
Multiple RZ Processors
be removed. This locking
connection prevents accidental
disconnects.
d. Connect the strand with the blue
collar to the In connector on the
port.
3. Repeat the steps to connect the other end
of the duplex cable to the To PC(zBus) port
on the processor's back panel.
Mixed RZ and RX or RP.1
Processors
Multiple ZB1 mounted Devices
(RX, RP.1, PA5)
