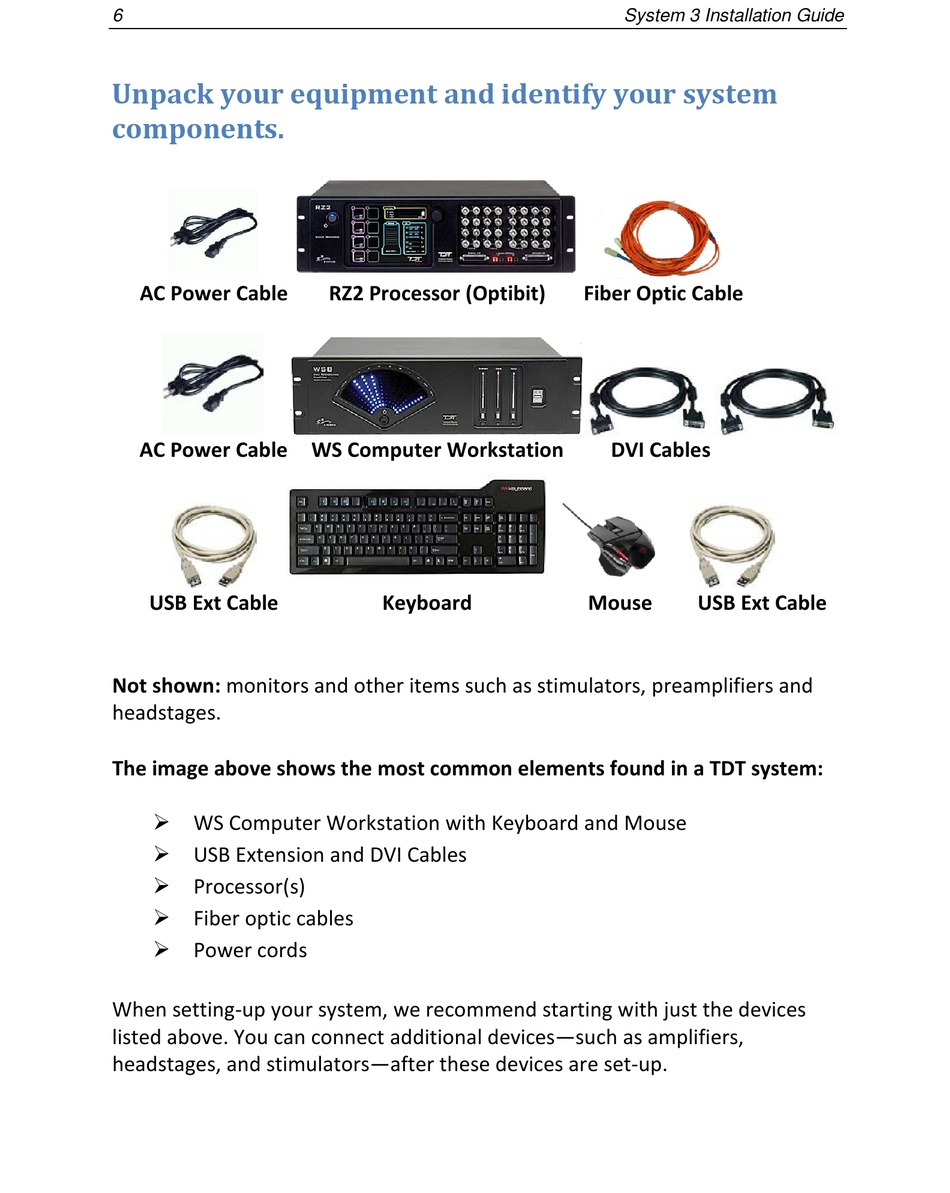

Unpack your equipment and identify your system
components.
AC Power Cable
AC Power Cable
USB Ext Cable
Not shown: monitors and other items such as stimulators, preamplifiers and
headstages.
The image above shows the most common elements found in a TDT system:
 WS Computer Workstation with Keyboard and Mouse
 USB Extension and DVI Cables
 Processor(s)
 Fiber optic cables
 Power cords
When setting-up your system, we recommend starting with just the devices
listed above. You can connect additional devices—such as amplifiers,
headstages, and stimulators—after these devices are set-up.
RZ2 Processor (Optibit)
WS Computer Workstation
Keyboard
System 3 Installation Guide
Fiber Optic Cable
DVI Cables
Mouse USB Ext Cable
