System 3 Installation Guide

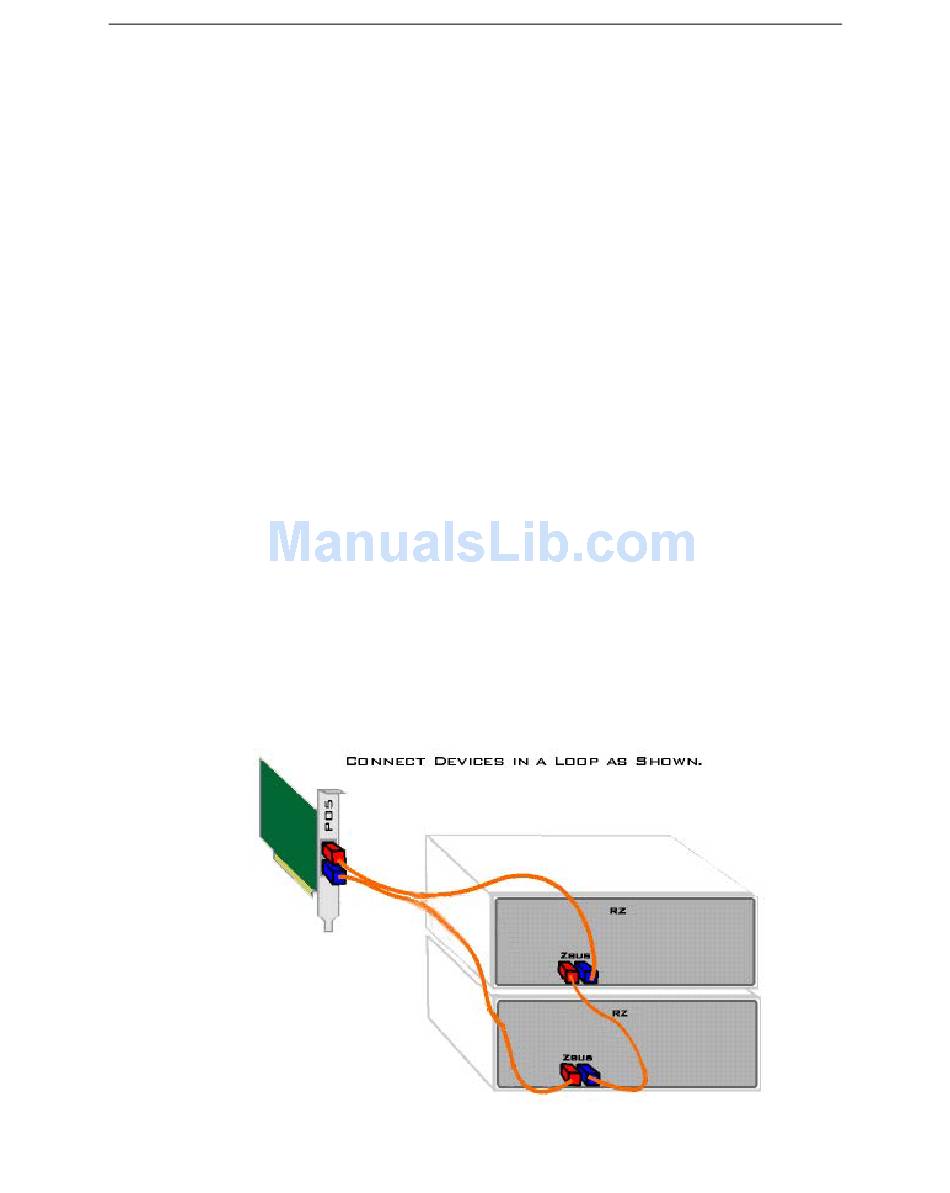

To connect multiple Optibit interfaces (see image on page 15 for complete
diagram):
1. Connect the red end of a 5-meter cable to the output of the
PO5/PO5e/LO5 (marked with a red dot labeled OUT).
2. Connect the other end of this cable (blue) to the input on the
first Optibit interface (labeled IN).
3. Connect the red end of a 30 cm cable to the output of the
first Optibit interface (labeled OUT).
4. Connect the other end of the first 30 cm cable (blue) to the
input on the second Optibit interface (labeled IN).
5. Repeat with 30 cm cables for each additional Optibit
interface.
6. Connect the red end of the second 5-meter cable to the
output of the last Optibit interface (labeled OUT).
7. Connect the other end of this cable (blue) to the input on the
PO5/PO5e/LO5 (not labeled).
