TDT System 3 Installation Manual page 5

System 3 Installation Guide
Setting-Up with the TDT WS8 or WS4 Computer
Workstation
The WS computer workstation is rack-mountable and purpose-built for TDT
System 3 and your demanding research applications. It's shipped with your
TDT software and an Optibit TDT interface card pre-installed to make setting-
up your system as streamlined as possible.

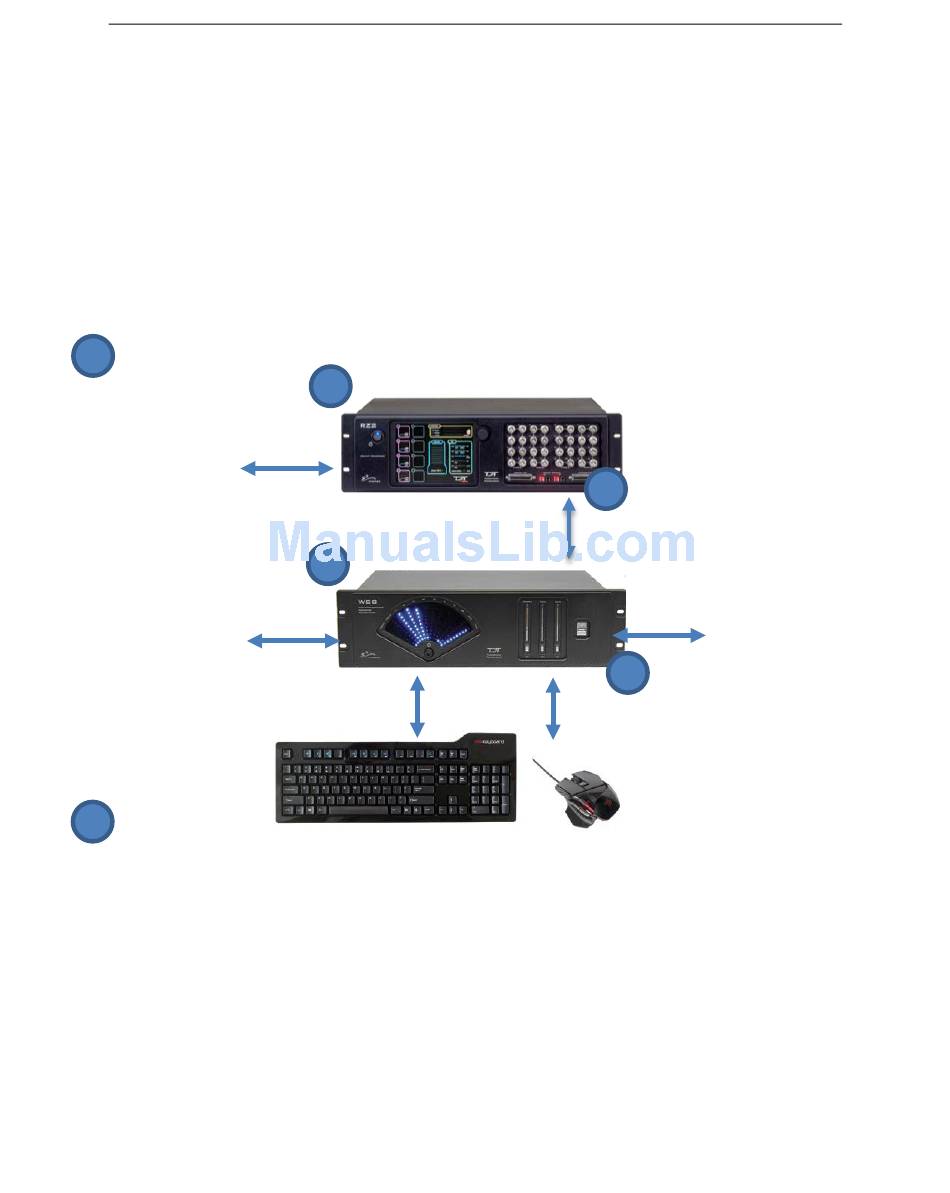

The diagram below illustrates the steps you'll take during set-up.
1
Unpack Your System
To Power
To Power
6
Test Your System
1. Unpack your equipment, identify your system components.
2. Connect the WS keyboard, mouse, and monitor(s).
3. Power on the WS and monitor(s).
4. Connect the fiber optic interface between the WS and processor.
5. Power on the processor.
6. Test the system.
The rest of this section will cover each step in more detail with step-by-step
instructions and illustrations.
Processor(s)
5
Fiber Optic Connection
Computer Workstation
3
To Keyboard
4
To Monitor(s)
2
To Mouse
5
