System 3 Installation Guide
software, such as zBUSmon, RPvdsEx or OpenEx. After this initial
communication, the green indicator light will glow steadily. You will also notice
the green indicator light pulsing when data is being transferred to or from the
zBus chassis.
Test the Optibit interface.

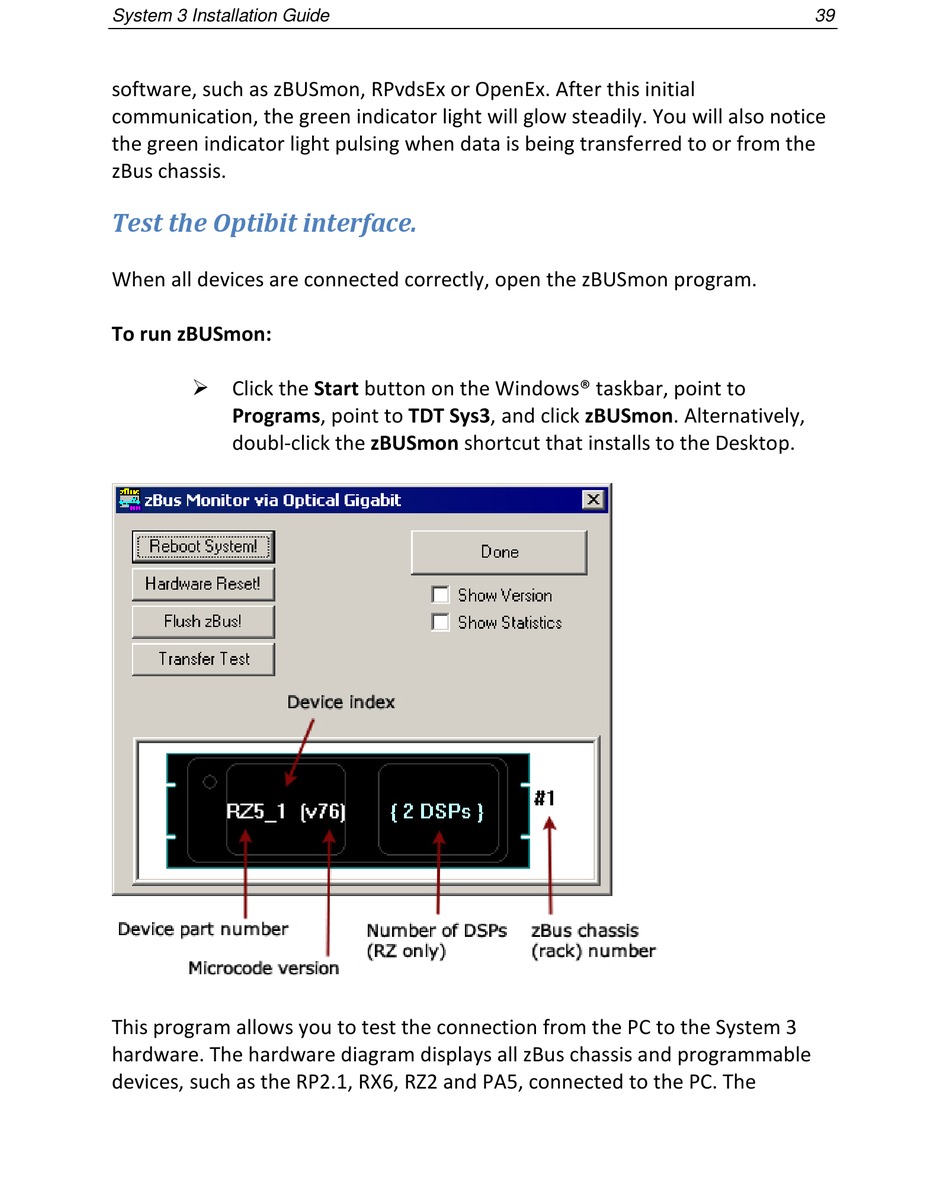

When all devices are connected correctly, open the zBUSmon program.
To run zBUSmon:
 Click the Start button on the Windows® taskbar, point to
Programs, point to TDT Sys3, and click zBUSmon. Alternatively,
doubl-click the zBUSmon shortcut that installs to the Desktop.
This program allows you to test the connection from the PC to the System 3
hardware. The hardware diagram displays all zBus chassis and programmable
devices, such as the RP2.1, RX6, RZ2 and PA5, connected to the PC. The
