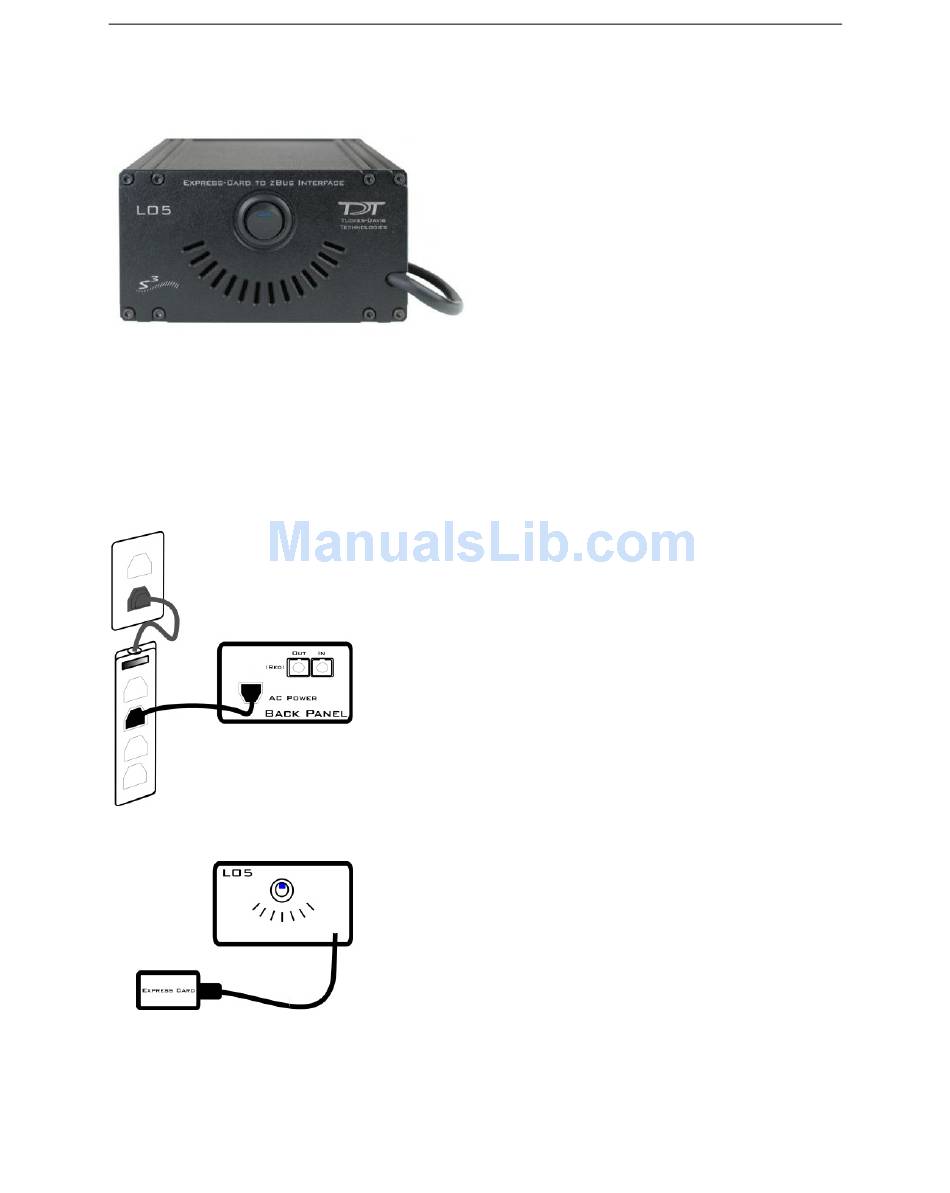

Connect to the LO5 Optibit interface.
Laptop based systems (or any system using an ExpressCard interface) using the
Optibit interface (FO5 zBus modules pre-installed in the ZB1PS device chassis
and/or built into the RZ processor) ship with fiber optic connector cables (two 5
meter cables to connect the LO5 to the TDT modules and possibly one or more
30 cm cables to connect multiple TDT chassis), an LO5 ExpressCard adapter,
and a power cable.
1. Connect the power cable to the LO5.
2. Plug the power cable into a surge strip or
battery backup.
3. Power on the LO5. Important!: the LO5
interface will only work if it is powered on
BEFORE it is connected to the laptop.
4. Connect the ExpressCard adapter to the
HDMI cable coming from the LO5, shown to
the left.
5. Plug the ExpressCard into the laptop. In
Windows® 7 or greater, if Windows® is able
to install a device driver automatically you'll
be notified that the device is ready to use.
Skip to the Assembling the zBus Chassis with
Optibit Interface on page 35.
