TDT System 3 Installation Manual page 15

System 3 Installation Guide
These connections are sufficient to get your system powered on and tested.
You can add other components; such as preamplifiers, video trackers, and data
streamers after you complete the installation guide. Connection information
for these devices may be found in two places: the corresponding section of the
System 3 Manual or the corresponding Fast Facts sheets provided with your
system.
Power on the connected components.
Earlier in the guide, you powered on the WS and set-up your processor(s). Now
you can power on the newly connected System 3 devices.
The power supplies for these devices are shipped from the factory configured
for the desired voltage setting (110 V or 220 V). If you need to change the
voltage setting, please contact TDT support at +1.386.462.9622 or email
support@tdt.com.
Important! The RZs and ZB1 Device Chassis are UL compliant, see the
Operator's Manual booklet or section in the back of the System 3 Manual
Binder for power and safety information.

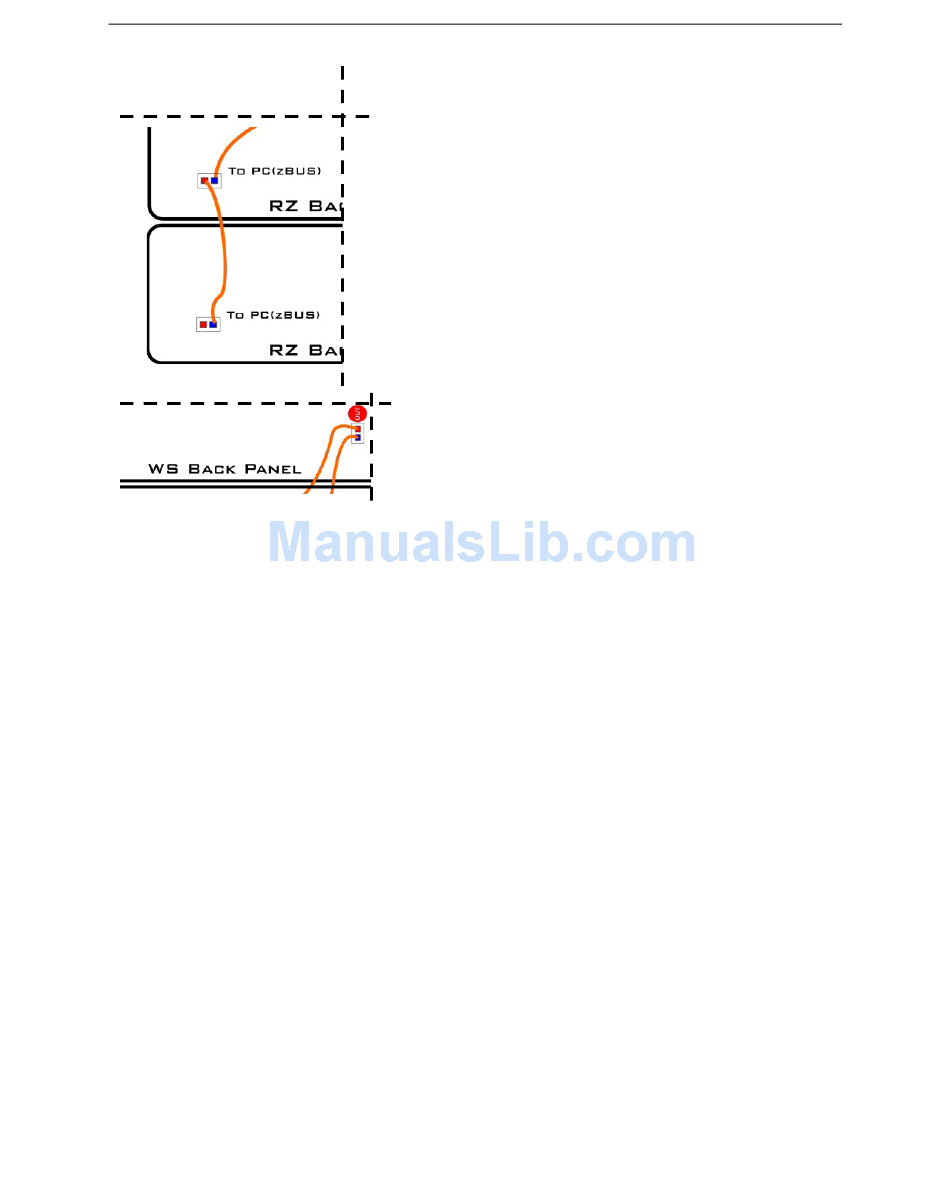

processor's interface (OUT).
5. Connect the other end (blue) of the 30-cm
cable to the input on the interface port's
second connector (IN).
6. Repeat with 30-cm cables for each
additional device with a PC-to- zBUS
interface.
7. Connect the red end of the second strand
of the 5-meter cable to the output of the
last processor's interface (OUT).
8. Connect the other end of this strand (blue)
to the input on the WS interface (In).
15
