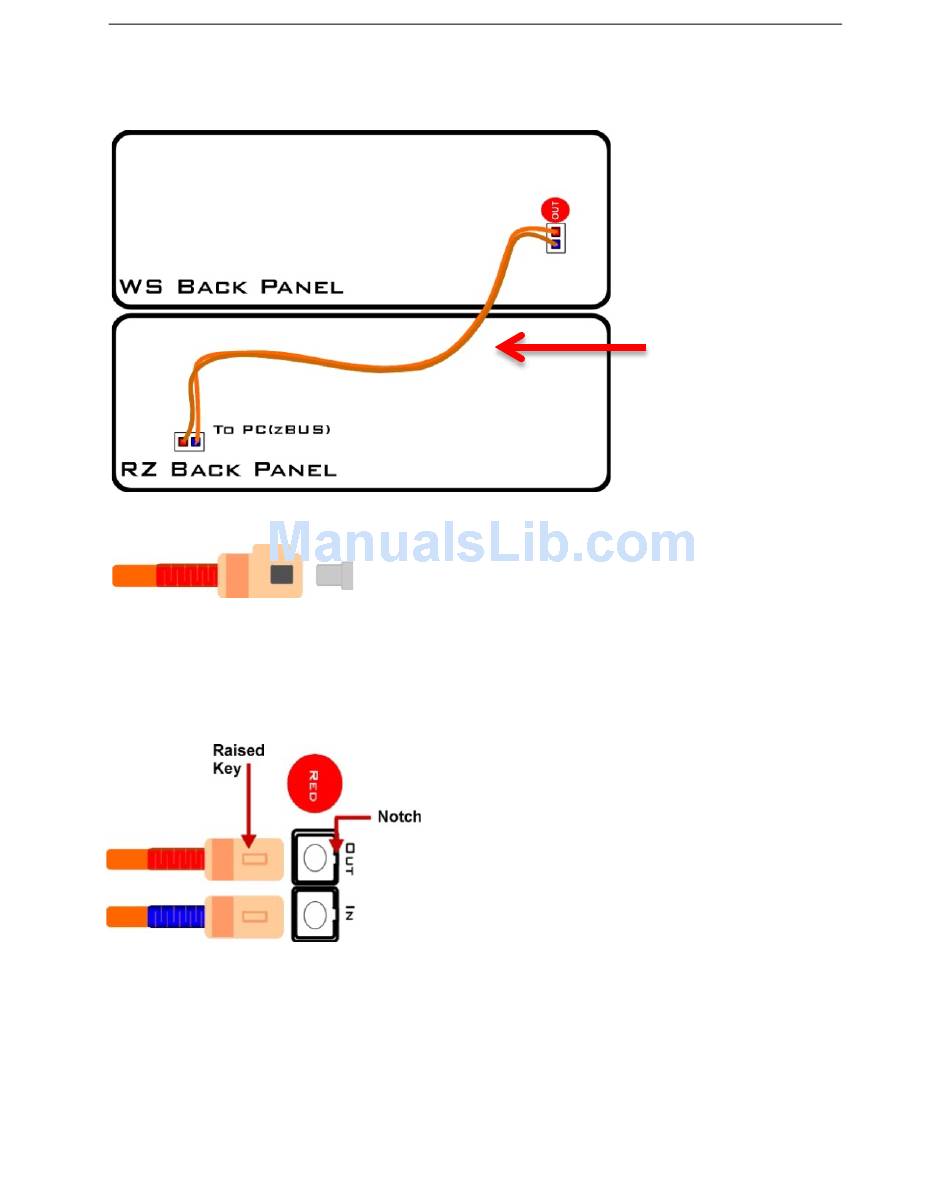

Connecting the WS to a Single RZ Device
1. Remove the protective caps covering the
ferrules on the fiber optic patch cable and
fiber optic ports.
2. Connect one end of the duplex cable to the
fiber optic port on the WS's factory-
installed, Optibit optical interface card.
a. Match the strand with a red collar
to the Out port connector adjacent
to the Red dot.
b. Line up the raised key on the boot
with the keyway notch on the
interface port connector.
Grasp the strand by the boot and
c.
push the end firmly into the port.
You will hear a click when the
strand is connected securely.
Note: When disconnecting, grasp
the boot and pull straight out. You
will first notice the connector
sliding backward slightly. This
unlocks the strand and allows it to
System 3 Installation Guide
Fiber Optic Patch Cable
