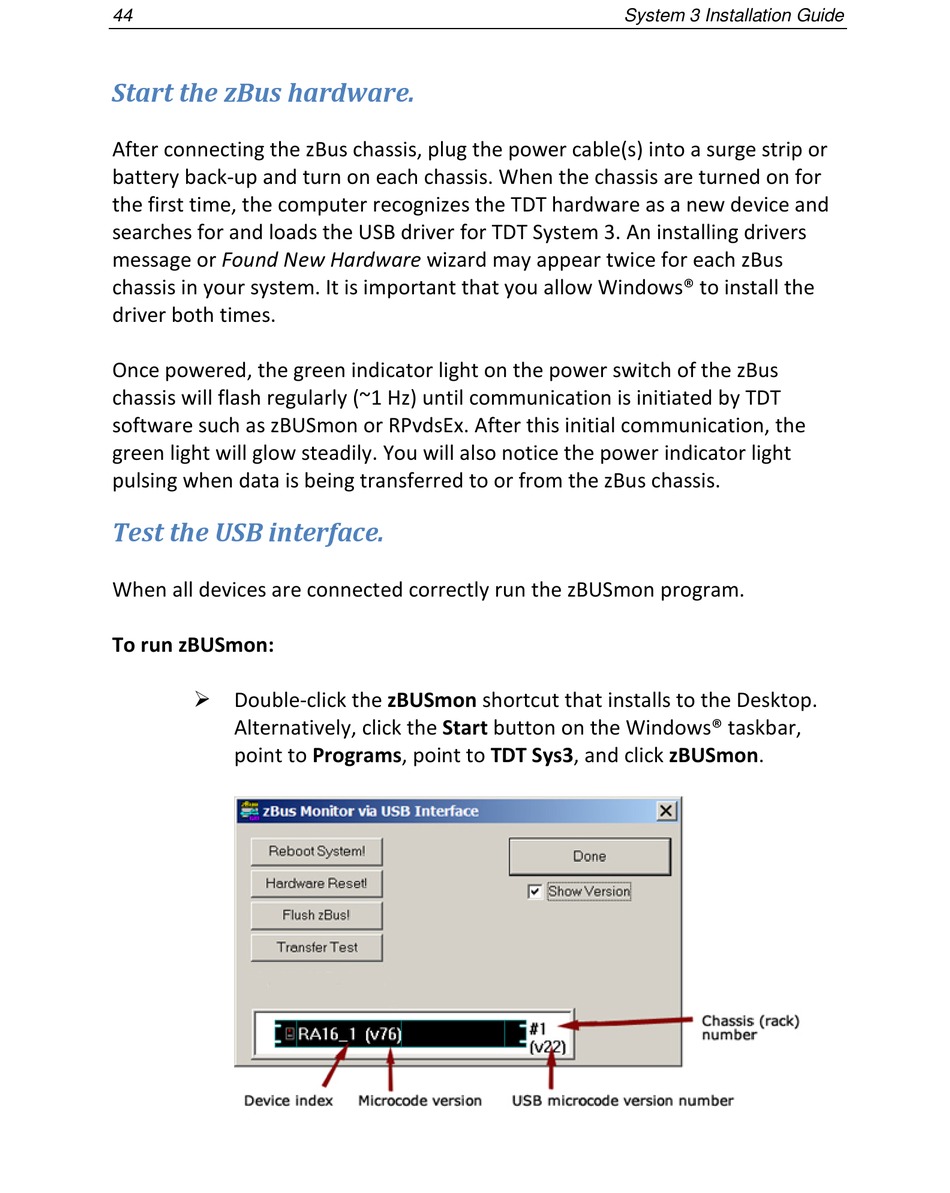

Start the zBus hardware.
After connecting the zBus chassis, plug the power cable(s) into a surge strip or
battery back-up and turn on each chassis. When the chassis are turned on for
the first time, the computer recognizes the TDT hardware as a new device and
searches for and loads the USB driver for TDT System 3. An installing drivers
message or Found New Hardware wizard may appear twice for each zBus
chassis in your system. It is important that you allow Windows® to install the
driver both times.
Once powered, the green indicator light on the power switch of the zBus
chassis will flash regularly (~1 Hz) until communication is initiated by TDT
software such as zBUSmon or RPvdsEx. After this initial communication, the
green light will glow steadily. You will also notice the power indicator light
pulsing when data is being transferred to or from the zBus chassis.
Test the USB interface.
When all devices are connected correctly run the zBUSmon program.
To run zBUSmon:
 Double-click the zBUSmon shortcut that installs to the Desktop.
Alternatively, click the Start button on the Windows® taskbar,
point to Programs, point to TDT Sys3, and click zBUSmon.
