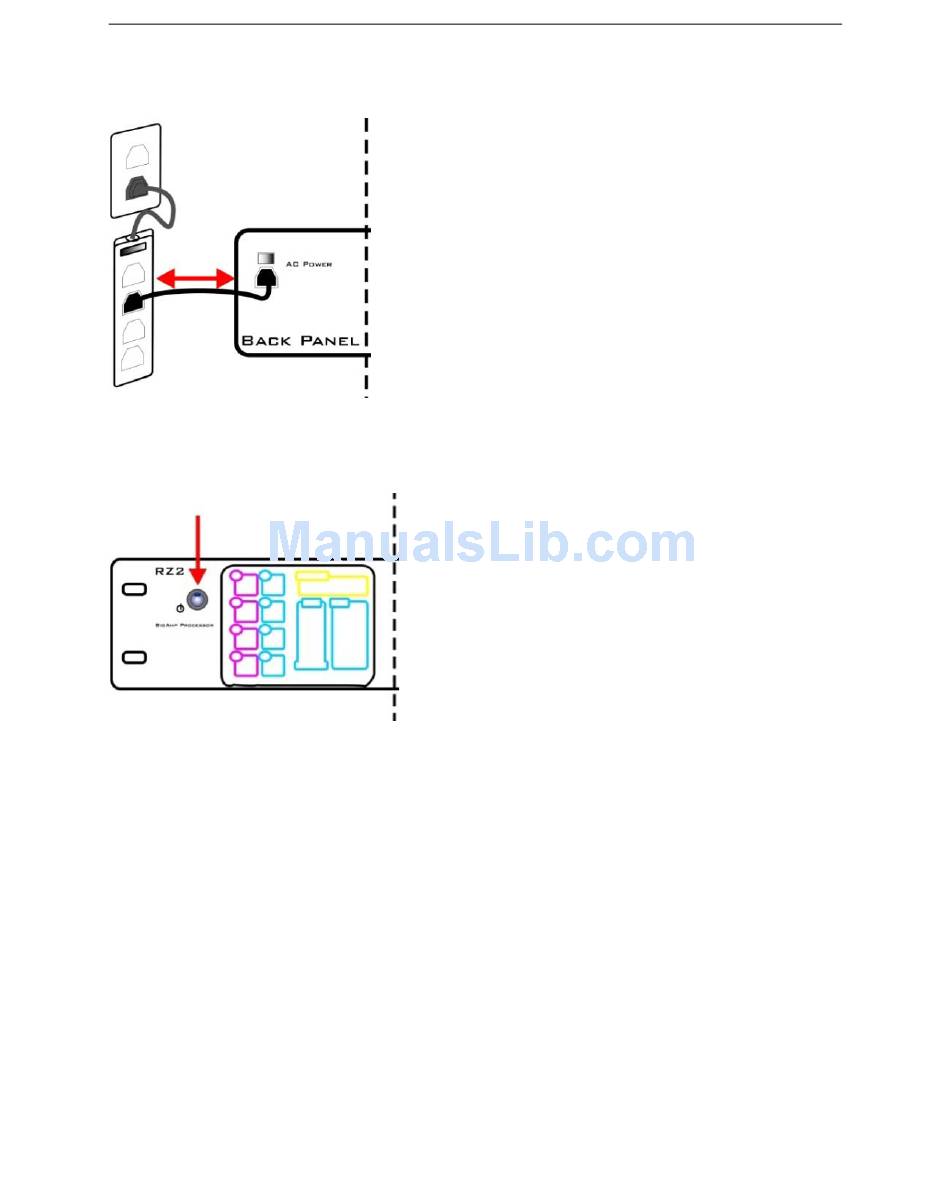

1. Plug the RZ or zBus device chassis
power cable into a surge strip or
battery backup connected to an AC
power outlet. The power plug
connector is located on the back panel
of each devices.
2. Press or switch on the power button
for each device. The TDT System 3
devices do not need to be powered on
in any particular order.
The RZ devices have a blue indicator
light to show that the device is
powered on.
The zBus chassis power switch has a
green indicator light and will flash
regularly (~1 Hz) until communication is
initiated by TDT software, such as
zBUSmon. After this initial
communication, the green indicator
light will glow steadily. The green
indicator light also pulses when data is
being transferred to or from the zBus
chassis.
