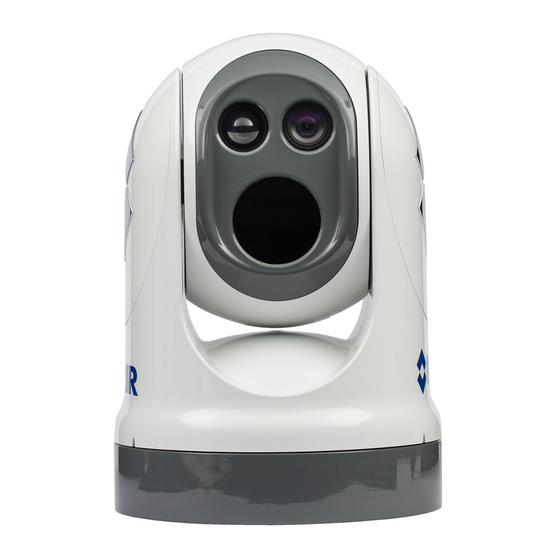

FLIR M400 Installation Manual

Multi-sensor marine thermal night vision
Hide thumbs Also See for M400:
Table of Contents

Advertisement

Quick Links

See also: Operator's Manual
Installation
Guide
M400
© 2016 FLIR Systems, Inc. All rights reserved worldwide. No parts of this manual, in whole or in part, may be
copied, photocopied, translated, or transmitted to any electronic medium or machine readable form without
the prior written permission of FLIR Systems, Inc.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M400 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for FLIR M400

Summary of Contents for FLIR M400

  • Page 1 Guide M400 © 2016 FLIR Systems, Inc. All rights reserved worldwide. No parts of this manual, in whole or in part, may be copied, photocopied, translated, or transmitted to any electronic medium or machine readable form without the prior written permission of FLIR Systems, Inc.
  • Page 2 Names and marks appearing on the products herein are either registered trademarks or trademarks of FLIR Systems, Inc. and/or its subsidiaries. All other trademarks, trade names, or company names referenced herein are used for identification only and are the property of their respective owners.

  • Page 3: Table Of Contents

    Installation of other Shipboard Systems ..............19 NMEA 0180 Interface ..................19 IP Interface and PC Operations M400 Web Browser Interface ..................20 View Camera and JCU II IP Address ..............21 Camera Web Server Login Accounts ..............21 Log in to the Camera Web Server ............... 21 Setup and Configuration Menus ................
  • Page 4 Specifications ......................43 External Standards ....................44 Acronyms ........................45 Mechanical ICD Reference M400 Top Down Riser Installation Template ............. 50 M400 Interface Control Document ................55 Joystick Control Unit Interface Control Document ............. 56 M400 Riser Installation Document ................58...

  • Page 5: Installing The M400

    Installing the M400 General Information This manual describes the installation of the M400 system. If you need help or have additional questions, please call to speak with our support experts; see the phone numbers on the back cover of this manual.

  • Page 6: Additional Installation Components

    • M400 Operator’s Manual (FLIR Doc. # 432-0012-00-10) contains information about how to configure and operate the camera. • M400 Quick Start Guide (FLIR Doc. # 432-0012-00-11) is a card used as a reference for the functions executed by the various JCU II buttons.

  • Page 7: Warnings And Cautions

    Caution: Be careful not to leave fingerprints on the M400 camera optics. Caution: The M400 requires a power supply of 12 Vdc to 24 Vdc nominal, 5.5 A maximum @ 24 Vdc, 11 A maximum @ 12 Vdc. Absolute voltage range: 12 Vdc to 32 Vdc. Operating the camera outside of the specified input voltage range or the specified operating temperature range can cause permanent damage.

  • Page 8: Installation Overview

    432-0012-00-00 5-port PoE+ Ethernet Switch PN 4141042 The standard cable set shipped with the M400 system is shown below in Figure 1-1. See “M400 Interface Control Document” on page 55 for the location of cable connections on the bottom of the M400 camera.
  • Page 9 Input from camera to display HD-SDI Isolation Transformer refer to the latest released ICD for installation requirements Figure 1-1: Standard Cable Set Additional Cables Available from FLIR TABLE 1.1 Part Number Description 308-0260-01-00 Cable - Ethernet to RJ45, 1 m...

  • Page 10: General Location Considerations

    • Power • Ethernet connection to the PoE switch from the M400 system body for the JCU II; the switch requires an Ethernet connection to the JCU II (customer supplied) and to a shipboard network (optional).

  • Page 11: System Installation

    40 cm (15.7 in). System Installation In most installations, the M400 is mounted upright on top of a mounting surface, with the pan/tilt base below the camera; this is known as the ball up orientation. Optionally, the unit can be hung upside down or ball down.

  • Page 12: Installing The Joystick Control Unit (Jcu Ii)

    Installing the Joystick Control Unit (JCU II) Mount the JCU II in an area that is close to the monitor being used to display the M400 video output. Make sure the area you choose leaves enough room for the cable under the JCU II. The magnetic compass safe distance from the JCU II is 55 cm (21.7...
  • Page 13 System Installation JCU II Connection to Camera The JCU II is a Power over Ethernet (PoE) device and can be connected to either the supplied PoE Ethernet Switch or a customer supplied PoE injector. To ensure a proper seal around the JCU II, the supplied gasket must be applied to the JCU II and the cutout opening for the JCU II should precisely match the template.
  • Page 14 System Installation Mounting the JCU II to a Thin Panel As shipped from the factory, the JCU II can be mounted to dash thicknesses ranging from 7.9 mm to 44.5 mm (0.31 in to Foot 1.75 in). The clamps are set with the small foot on each clamp facing away from the panel, as shown.

  • Page 15: Electrical Connections

    When power is supplied, the camera will be in one of three modes: Booting Up, Standby, Parked, or Powered On. The M400 Operator’s Manual has detailed information about powering and operating the camera.

  • Page 16: Proper Grounding

    Video Connections Video cables of various lengths with different connectors at one end are available from FLIR. The video cable used should be rated as RG6 to ensure an adequate quality video signal. For cable runs in excess of 100 ft, a video amplifier should be used.

  • Page 17: Installation Examples

    Dashed lines represent connection to power Figure 2-1: Basic Single-Station System Video Streams The M400 system provides five configurable video outputs. Two video streams are provided on separate connectors: • one analog composite video • one HD-SDI digital video Both video streams are configurable using the camera Web Server to show video from the active camera, the secondary camera, or to always show video from one or the other.

  • Page 18: Digital Video And Pc Interface

    Ethernet connection to a shipboard network for use by a video management system (VMS) or a network video recorder (for example, FLIR DNR400 Series) to record video streams and provide other features such as video storage and backup. Refer to the documentation for the VMS or video recorder for operation and setup details.

  • Page 19: Installation Of Other Shipboard Systems

    NMEA 0180 Interface Serial NMEA 0183 interface devices (radar interface for example) can be connected via a Serial port into the M400 system. The NMEA serial interface is included as pigtail leads on the composite analog video/serial cable. Customer supplied...

  • Page 20: Ip Interface And Pc Operations

    IP addresses. During installation or at other times the system may have been set to Static addressing and these addresses may have been changed. M400 Web Browser Interface This chapter describes how to use a Web browser to communicate with and configure the M400 cameras and JCU IIs: •...

  • Page 21: View Camera And Jcu Ii Ip Address

    M400 Web Browser Interface View Camera and JCU II IP Address Connect the camera and JCU II together through the switch and power on both the camera and the switch. (The JCU II is a PoE device getting power from the switch.) On the JCU II, press and hold the COLOR button while pushing the joystick forward.
  • Page 22 The Live Video page will be displayed, with a live image from the camera on the left part of the page and a virtual joystick and function buttons on the right part of the page. Next to the FLIR logo along the top of the screen are some menu choices, including Live Video (the red text indicates it is selected), Setup, Maintenance, Help, and Log out.
  • Page 23 If it is necessary to contact FLIR Technical Support for assistance, it will be helpful to have the information from this page (such as Software Version) on hand.
  • Page 24 M400 Web Browser Interface The functions of the buttons appearing for the M400 cameras are described below: Zoom In/Zoom Out These buttons zoom the active camera (IR or daylight). Plus zooms the camera in; minus zooms the camera out. Toggle Video Source This button changes the source of the Live Video image between the IR camera and the daylight camera.
  • Page 25 When selected, the keypad changes to an OSD control panel. Select the back arrow to return to the main keypad. Use the OSD menu keypad to navigate through the OSD menus and make selections. Refer to the M400 Operator’s Manual for descriptions of the menu functions. OSD Menu Keypad Display OSD menu...

  • Page 26: Setup And Configuration Menus

    Additional configuration options are available that are not described in this manual. For more information on setting or changing these camera parameters refer to the Nexus IP Camera Configuration Guide (FLIR Doc #427-0030-00-28) or contact the local FLIR representative or FLIR Technical Support.
  • Page 27 M400 Web Browser Interface Setup->IR->AGC Scene Presets The AGC parameters affect how the overall IR video image appears. The default Histogram algorithm is suitable for most installations, but in some cases one of the other selections may provide a more appealing image, depending on personal preferences. Be aware the settings that are optimal at one time may be less optimal a short time later, since conditions such as weather and time of day affect the image and are constantly changing.
  • Page 28 The Azimuth “0” direction should be directly toward the front of the vessel; the elevation may be set to the horizon or another preferred reference. The azimuth and elevation offsets can be set using the OSD menu. Refer to the M400 Operator’s Manual. Setup->Surveillance->Scan List...
  • Page 29 M400 Web Browser Interface Setup->Surveillance->Auto Scan To start Auto Scan: select width and speed, then select Start Set Autoscan at Startup: select speed, select limits, click Save The Relative Auto Scan (Surveillance mode) can be started and the settings changed from the OSD menu, JCU II (UPB), or the web page.

  • Page 30: Maintenance Menus

    M400 Web Browser Interface Maintenance Menus After making configuration changes, click the Save button at the bottom of the page. After saving, it is also necessary to stop and restart the server. The server has a configuration that is active and running, and another configuration that is saved.

  • Page 31: Changing The Ip Address Of The Camera

    The admin and expert log in accounts can change LAN settings. Maintenance->Server->LAN Settings The M400 system is shipped with DHCP IP address mode enabled. Some networks may require that a static IP address is set. The camera IP address, mask, and gateway is shown in the figure below.
  • Page 32 M400 Web Browser Interface Maintenance->Server->Security Options Use the Security Options page to restrict access through the camera web server to specific IP addresses and to set and change passwords. • To limit which computers have access to the web browser interface simply enter a computer’s IP address and click Add.

  • Page 33: Enable Onvif V2.0 Driver

    M400 Web Browser Interface • The expert log in, shown below, can use the Live Video page, the Setup page, the Maintenance page Server menus, and can reset the user password or select to allow the user log in account to change their own password, as well as restrict access to specific IP addresses.

  • Page 34: Configure Ball Down Installation

    M400 Web Browser Interface Maintenance->Sensor->Devices->Pan & Tilt Startup Mode Select an action the camera will perform at startup (power cycle or server reset). Scroll down to Save Select an action from the menu Select Yes for Ball Down installation Stop and start the server...

  • Page 35: Azimuth And Elevation Offsets

    M400 Web Browser Interface Azimuth and Elevation Offsets After the camera is installed, the azimuth may be set to account for variations required during installation. The azimuth direction should be directly toward the front of the vessel; the Elevation Offset should be zero. The azimuth/elevation offset can be set using the OSD menu.

  • Page 36: Changing Video Outputs

    M400 Web Browser Interface Changing Video Outputs The M400 camera system has two cameras with different video streams which are then processed to provide multiple display formats and video resolutions. Use the following web pages to control these video streams and how they are affected by Active Camera selections from the JCU II.
  • Page 37 M400 Web Browser Interface Maintenance->Sensor->Modules->Video VIDEO 0 is the daylight camera (DLTV) video stream, VIDEO 2, shown above and at the right, is the infrared camera video stream, and VIDEO 4 is the video stream shown on the Live Video web page.

  • Page 38: Geo-Referencing Of The Sensors

    M400 Web Browser Interface Maintenance->Sensor->Modules->Radar Interface Geo-Referencing of the Sensors The Camera Server and the Radar Server can each have a Georeference location. When the camera is installed on a vessel, the location information can come from a GPS and gyrocompass and the information is available as NMEA data directly from those devices or through the radar device.

  • Page 39: Firmware Update

    Accessing the JCU II Web Interface The JCU II communicates through the Ethernet IP protocol just like the M400 camera does. Changing the IP Address of the JCU II On the JCU II, the IP address is displayed by pressing the COLOR button and pushing the joystick forward at the same time.

  • Page 40: Enabling Universal Plug And Play (Upnp)

    M400 cameras and JCU IIs are UPnP devices so they broadcast their presence on the network. A PC configured to accept UPnP broadcasts will show all UPnP devices discovered under My Network Places.

  • Page 41: Enabling The Upnp User Interface

    Enabling Universal Plug and Play (UPnP) Enabling the UPnP User Interface In some cases, Windows will discover UPnP devices and provide its own user interface to control them. Windows Vista and Windows 7 automatically detect network devices in the Network page. If UPnP devices are hidden, a prompt at the top of the screen will ask to display hidden devices.

  • Page 42: M400 Reference

    If you have a problem with your thermal camera, do not attempt to repair it yourself. The M400 camera is a sealed unit and can not be opened or serviced in the field. Consult your installation dealer or FLIR Systems, Inc.

  • Page 43: Specifications

    Specifications Specifications Table 4.1 lists details about physical characteristics, power usage, and environmental features of your M400 camera. Specifications TABLE 4.1 Thermal Imaging Specifications M400 Sensor Type 640 x 480 VOx Microbolometer Field of View 18° to 6° HFOV / 1.5° HFOV with e-zoom...

  • Page 44: External Standards

    IEC 60945 Wind 100 knot (115 mph) IEC 60945 External Standards Table 4.2 lists other sources of information and standards definitions that may be useful during the installation of your M400 camera. External References TABLE 4.2 Standard Description IEC 60169-24...

  • Page 45: Acronyms

    Application Programming Interface Black and white DLTV Daylight TV, used to reference visible-band cameras Export Administration Regulations Electromagnetic Interference Flat Field Correction FLIR Forward Looking Infrared Field of View Frames per Second (refresh rate) HFoV Horizontal Field of View Interface Control Document...
  • Page 46 FLIR Systems, Inc. CS World Headquarters FLIR Systems, Inc. 6769 Hollister Ave. Goleta, CA 93117 PH: +1 888 747 3547, Option 5 maritimecamerasupport@flir.com 432-0012-00-12 Rev. 110 July 2016...

  • Page 47: Mechanical Icd Reference

    The following Mechanical Interface Control Documents detail the outline and mounting for the M400 systems. These documents are provided for reference only. You should consult your local sales representative or application engineer to obtain current ICD information. Also, the Thermal Imaging Camera Data Sheet available from the website contains important mechanical interface data as well.
  • Page 48 Down Riser and [7.72in ID x .275in DIA] mounting surface to be [96mm ID x 7mm DIA] supplied by the installer. 6 places M400 Weight: <12.25 kg (27 lb) Figure A-2: M400 Top Down Riser Installation—Ball down 432-0012-00-12 Version 110 July 2016...
  • Page 49 PIN 10 PIN 4 PIN 5 PIN 12 PIN 3 PIN 6 F-type connector PIN 11 NMEA and Factory Test serial interface PIN 2 PIN 7 PIN 1 PIN 8 PIN 9 Figure A-3: Analog Video and Serial Cable Analog Video and Serial Cable Pinout TABLE A.1 Pin # Signal Name...

  • Page 50: M400 Top Down Riser Installation Template

    The following four pages provide a mounting template for the M400 camera using the top down riser which can be printed on a standard printer using either 8.5x11 or A4 paper. See “M400 Riser Installation Document” on page 58. for dimensions.
  • Page 51 View looking down at top of cam 2 IN 2 IN 50.0 MM 50.0 MM Front of vessel Camera Cup Flat on bottom of came...
  • Page 52 ew looking down at top of camera 2 IN 2 IN 50.0 MM 50.0 MM ra Cup Flat on bottom of camera...
  • Page 53 View looking down at top of cam 2 IN 2 IN 50.0 MM 50.0 MM Front of vessel Camera Cup Flat on bottom of came...
  • Page 54 ew looking down at top of camera 2 IN 2 IN 50.0 MM 50.0 MM ra Cup Flat on bottom of camera...

  • Page 55: M400 Interface Control Document

    196mm ID x 7mm DIA Power connector All dimensions are in mm and (inches) HD/SDI BNC connector Analog video and serial connector Ethernet connector Warranty void if screws removed M400 Interface Control Document Sheet 1 432-0012-00-12, version 110 July 2016...

  • Page 56: Joystick Control Unit Interface Control Document

    M400 Installation Guide Appendix 1 Mechanical ICD Reference 3.03 3.58 77.0 90.8 3.32 84.2 5.06 5.62 128.5 142.8 WITH CABLE INSTALLED, TURN NUT 1/4 TURN BEYOND HAND TIGHT. GLAND SEAL DESIGNED FOR USE WITH DOUBLE SHIELDED CAT 5 ETHERNET CABLE. USE OF SINGL...
  • Page 57 M400 Installation Guide Appendix 1 2.85 72.4 CORNERS SHALL OPTIONAL BE SHARP. DRILL GUIDE IMPORTANT NOTE: PAPER SIZE: 11x17in TEMPLATE SHOULD PRINT 1:1 DUE TO VARIATION IN SOFTWARE AND 5.57 PRINTER, PLEASE VERIFY SCALE BELOW 141.4 BEFORE MODIFIYING MOUNTING SURFACE.

  • Page 58: M400 Riser Installation Document

    180.0 Base cup hole circle 12.75 323.9 Top Down Riser OD 4.79 121.6 Riser cable clearance hole Recommended deck port: 30.0 [1.18] min 130.0 [5.12] max NOT TO SCALE M400 Riser Installation Document Sheet 1 432-0012-00-12, version 110 July 2016...
  • Page 59 View looking down at top of camera 2 IN 2 IN 2 IN 2 IN 50.0 MM 50.0 MM 50.0 MM 50.0 MM ont of vessel Camera Cup Flat on bottom of camera...
