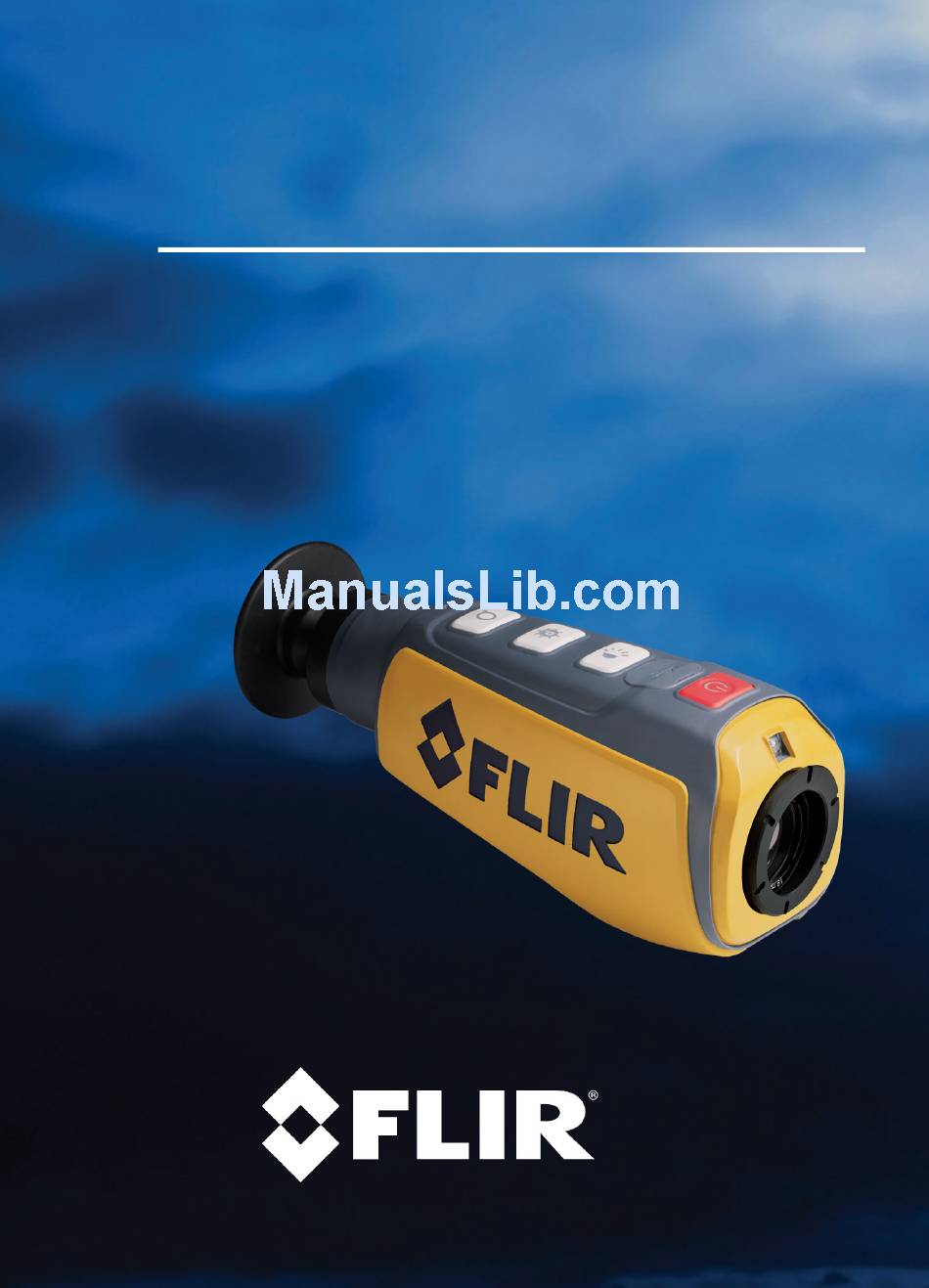

- Page 1 First Mate MS-Series Thermal Imager Operator’s Manual Document Number: 432-MS00-00-10 Revision: 110 October 2011...
- Page 2 FLIR for proper disposal. This document is controlled to FLIR Technology Level EAR 2. The information contained in this document is proprietary and/or restricted and pertains to a dual use product controlled for export by the Export Administration Regulations (EAR).
-
Page 3: Table Of Contents
Table of Contents Introduction........... 1 First Mate MS-Series Camera Features. - Page 4 — First Mate MS-Series Operator’s Manual October 2011...
-
Page 5: Introduction
Boat with confidence at night knowing that you can see harbor entrances and waterways in total darkness • See with FLIR’s award-winning maritime thermal night vision technology in the palm of your hand Visible Image First Mate MS-Series Camera Image... -
Page 6: First Mate Ms-Series Camera Features
1—Introduction First Mate MS-Series Operator’s Manual 1–1 First Mate MS-Series Camera Features • Rugged design—Built to withstand the demands of outdoor use. • 240×180 or 320×240 microbolometer sensor for excellent image quality and clarity • 19 mm lens with 24° field of view •... -
Page 7: Getting Started
Refer to the packing list enclosed with your camera shipment to determine the actual contents of your camera package. • MS24 and MS32 Cameras In addition to the camera, Quick Start card, and Documentation/ Training CD or DVD; the following items are included in the camera... - Page 8 2—Getting Started First Mate MS-Series Operator’s Manual • MS24 and MS32 Camera Options The following optional accessories are available for the First Mate MS- Series camera Floating Lanyard Camera Carrying Pouch Hard Shell Storage Case October 2011...
-
Page 9: Operating Your First Mate Ms-Series Camera
3 Operating Your First Mate MS-Series Camera 3–1 Camera Features and Controls Power Display Brightness/ × zoom/ (Tasklight On/Off Freeze Frame when Camera in off state) Eyepiece White hot/ Adjustable LED Tasklight USB/Charging Black hot/ diopter ±2 Plug Marine red Lanyard Clip 432-MS00-00-10, Revision 110... -
Page 10: Charging The Camera
3—Operating Your First Mate MS-Series Camera First Mate MS-Series 3–2 Charging the Camera Caution! To assure proper charging, First Mate MS-Series cameras should be turned OFF throughout the charging cycle. Charging MUST only be done when the camera is at room temperature; 0 to 40°C (32 to 104°F) or battery damage may occur. -
Page 11: First Mate Ms-Series Power Management
When the camera is turned on from the Off state, it takes about four seconds to become operational. During the Bootup process, The FLIR splash screen is shown and then the software version is displayed briefly. Pressing the Power button will toggle the camera between On and Off. - Page 12 3—Operating Your First Mate MS-Series Camera First Mate MS-Series When the highest brightness level is reached, subsequent button presses advance to the next lower brightness levels. When the lowest brightness level is reached, subsequent button presses advance to the next higher brightness level. One of the following icons is displayed for approximately three seconds after the button is pressed indicating the current brightness level:...
- Page 13 2× is selected. When zoom has been selected the icon is continuously shown in the display: Freeze Frame Button—MS24 models only Use this button to freeze the video so that a single frame may be inspected closely. Diopter Controls The diopter adjustment lever allows a ±2 diopter setting range.
-
Page 14: Battery
3—Operating Your First Mate MS-Series Camera First Mate MS-Series 3–5 Battery Your First Mate MS-Series camera is equipped with a sophisticated power system using a rechargeable internal Li-Ion battery. Battery Status Indicator While the camera is On, a battery status full charge indicator is always shown in the corner of the display image. -
Page 15: Technical Data
Detector Type VOx Microbolometer × Resolution 180 pixels MS24 × 240 pixels MS32 Image Processing FLIR Proprietary Digital Detail Enhancement × Focus, Zoom Fixed focus. 2 electronic zoom on applicable models only. Video Display NTSC 7.5 Hz refresh rate 4–2... -
Page 16: Environmental
4—Technical Data First Mate MS-Series Operator’s Manual 4–3 Environmental MS24 and MS24 Operational Temp. -4°F to 122°F (-20°C to 50°C) Storage Temp. -40°F to 140°F (-40°C to 60°C) Ratings IP-67, 1 meter drop 4–4 Physical MS24, MS32 Weight 12 oz. (340 g) with battery ×... - Page 18 Santa Barbara Portland FLIR Commercial Systems, Inc. FLIR Corporate Headquarters World Headquarters FLIR Systems, Inc. FLIR Systems, Inc. 27700A SW Parkway Ave. 70 Castilian Dr. Wilsonville, OR 97070 Goleta, CA 93117 PH: +1.888.747.FLIR (+1.888.747.3547) Europe FLIR Commercial Systems B.V. Charles Petitweg 21...
