- Page 1 Operator’s Manual M400 1.800.561.8187 information@itm.com www. .com...
- Page 2 © 2015 FLIR Systems, Inc. All rights reserved worldwide. No parts of this manual, in whole or in part, may be copied, photocopied, translated, or transmitted to any electronic medium or machine readable form without the prior written permission of FLIR Systems, Inc.Names and marks appearing on the products herein are either registered trademarks or trademarks of FLIR Systems, Inc.
-
Page 3: Table Of Contents
Contents M400 Overview General Information....................7 Additional References ..................7 Documentation Conventions ................8 Warnings and Cautions .................... 8 System Description ....................9 Standard Features ....................9 M400 Components: ..................10 Multiple Cameras, Joysticks, and Other Devices: ..........10 Thermal Video Display ................... 11 Video Screen Icons .................. - Page 4 Home Button ......................17 Scene Button—IR imaging only ..............18 Color Button—IR Imaging only ..............18 Focus Buttons ....................18 Camera Button .....................18 User Buttons ....................18 Display Camera and JCU II IP Address ............19 Button Summary....................19 M400 System Configuration Overview ........................ 20 Main Menu......................20 Park camera: .....................
- Page 5 Activate Spotlight Demo: ................27 Activate Pan and Tilt Pattern: ..............27 Reset IR Lens: ................... 27 Set Az & El zero reference: ............... 27 User Interface Preferences Menu..............28 Joystick mode: ................... 28 User button 1: User button 2: User button 3: ....................
- Page 6 Image too dark or too light ................42 Performance varies with time of day ............42 Eastern or Western exposure ...............42 Multiple Cameras and/or JCU IIs on a single network ........42 432-0012-00-10 Version 110 June 2016 1.800.561.8187 information@itm.com www. .com...
-
Page 7: M400 Overview
• M400 Installation Guide (FLIR Doc. # 432-0012-00-12) contains information about how to install the camera. • M400 Quick Start Guide (FLIR Doc. # 432-0012-00-11) is a double-sided card that shows the functions executed by the Joystick Control Unit. 432-0012-00-10 Version 110 June 2016 1.800.561.8187... -
Page 8: Documentation Conventions
Warnings and Cautions Documentation Conventions For safety, and to achieve the highest levels of performance from the M400 system, always follow the warnings and cautions in this manual when handling and operating the M400 system. Warning: Warning notices are used to emphasize that hazardous voltages, currents, temperatures, or other conditions that could cause personal injury or death exist with this equipment, or may be associated with its use. -
Page 9: System Description

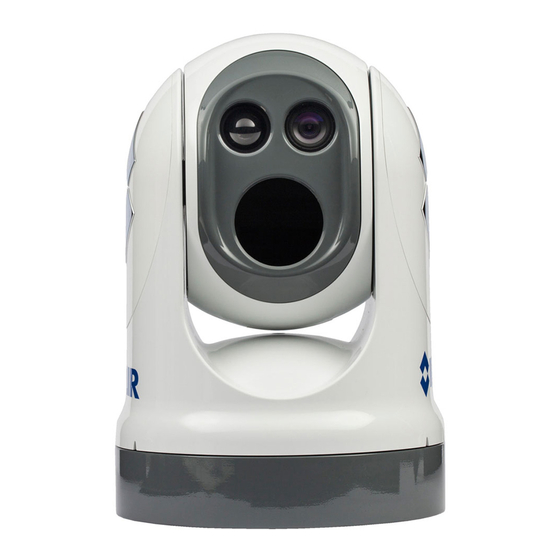

System Description System Description The multi-sensor M400 is a stabilized maritime thermal and high definition (HD) visible-light camera system for use on most types of vessels. The long wave infrared (LWIR) thermal camera provides excellent nighttime visibility and situational awareness, without any form of natural or artificial illumination. -
Page 10: M400 Components
JCU II to change the camera position (pan or tilt). Contact FLIR Systems, Inc. for more information regarding available accessories including PoE equipment, video distribution amplifiers, cables, connectors, mounting hardware, etc. Contact information is listed on the back of this manual. -
Page 11: Thermal Video Display
FLIR Systems, Inc. offers a comprehensive selection of training courses to help you to get the best performance and value from your thermal camera. Find out more at the FLIR training Web page: Video Screen Icons Depending on the system settings, various symbols are shown on the screen. -
Page 12: Position Indicator Icons
Thermal Video Display Position indicator icons The azimuth position indicator shows the direction the camera is pointing relative to the vessel. The shaded triangle shows the approximate camera field of view (FOV). The elevation position indicator shows the vertical tilt of the Azimuth Elevation camera above or below the horizontal plane of the vessel. -
Page 13: M400 System Startup
1. If starting from a full shutdown, make sure the monitor is turned on, then power on the system. 2. The FLIR splash screen is shown, then live video with a counter showing boot progress. 3. When the bootup is complete (about 4 minutes), the monitor shows the welcome screen with icons, live video, and the OSD menus are enabled. -
Page 14: Powering The Jcu Ii
JCU II Power Menu Powering the JCU II When the JCU II is receiving power, the Power button will Power be lit amber. When the button is pressed for approximately three seconds, the JCU II will turn on and screen search for cameras on the network. - Page 15 JCU II Power Menu • JCU Stndby?—select to power down the JCU II. • Camera Stndby?—select to power down the camera, leaving the JCU II powered to connect to a different camera. • System Stndby?—select to power down the camera and the JCU II. •...
-
Page 16: M400 Joystick Control Unit
M400 Joystick Control Unit Introduction The Joystick Control Unit (JCU II) is the primary method of controlling the M400 camera. Use it to move the camera, zoom the camera, switch between infrared and visible-light cameras, adjust image settings, and access the on-screen menus. This chapter describes how to use the JCU II buttons to operate the camera features. -
Page 17: Jcu Ii Buttons
JCU II Buttons JCU II Buttons All of the buttons on the JCU II perform multiple functions. In most cases, each performs one function when it is pressed briefly (short press) and a different function when it is pressed and held (long press). -
Page 18: Scene Button-Ir Imaging Only
JCU II Buttons Scene Button—IR imaging only The M400 thermal sensor automatically adjusts to changing conditions providing optimized high-contrast images. The preset automatic gain control (AGC) settings offer the most balance and image quality for specific conditions. Experiment with the different settings to find out which settings work best in different conditions. -
Page 19: Display Camera And Jcu Ii Ip Address
JCU II Buttons Display Camera and JCU II IP Address Press the Color button while pushing the joystick forward; the IP address of the JCU II and then the camera will display on the JCU II screen. Button Summary Table 3.1 summarizes the action of each button on the JCU II. Summary of Button Actions TABLE 3.1 Button... -
Page 20: M400 System Configuration
M400 System Configuration Overview This chapter describes how to configure the system options using on-screen-display (OSD) menus. Operating the M400 camera does not require modifying any of the factory configuration settings. However, the OSD menus allow setting the following: • Choose configuration options that match personal preferences such as Joystick Mode or the default color scheme. -
Page 21: Park Camera
Main Menu Use the joystick to navigate through the menus and select options. Press the Menu button to exit the menus. Note: During navigation in the OSD menu, camera zoom is disabled, but manual focus/Auto focus is still enabled. Some features are directly accessible from the main menu. Selecting a menu button below invokes the action immediately and closes the Back Select... - Page 22 Main Menu pressing the Menu button will show the IceAlert settings menu. The Highlight setting controls the percentage of the coldest temperatures to display in Blue-Green. 432-0012-00-10 Version 110 June 2016 1.800.561.8187 information@itm.com www. .com...
-
Page 23: Surveillance
Main Menu Surveillance: When the camera is in surveillance mode, it pans continuously left and right, until it is taken out of surveillance mode or until the JCU II is used to move the camera. The camera does not automatically resume panning; enable surveillance again by pressing a User button (if it is programmed to enable this mode) or selecting it in the main menu. -
Page 24: Spotlight
Image Settings Menu Spotlight: Select this option and then select one of the active spotlight modes (On, Flash, SOS). The Spotlight turns on in the selected mode. A user programmable button (UPB) can be programmed as Spotlight on/off or as Signal Light to control the light. When set to Signal Light, the UPB will turn on the Spotlight when pressed and turn off the Spotlight when released. -
Page 25: Polarity-Ir Camera Only
Selecting Minimal turns off most of the on-screen icons except when their corresponding controls are actively in use. The pan position (azimuth) icon, tilt (elevation) position icon, and the FLIR logo are always displayed. Other icons such as home and scene display on the screen only momentarily when they are changed. -
Page 26: Icon & Text Color
Set-up Menu Icon & text color: Red/White VIS low light mode: On/Off Set-up Menu When Setup is selected from the main menu, the following OSD menu is shown. Save current settings as start-up defaults: Select this option to store the current camera settings described below for start-up or anytime Restore settings from defaults is selected. -
Page 27: Calibration & Diagnostics
Set-up Menu Calibration & diagnostics… Manual FFC This function applies to the IR camera only. When selected, the camera drives the camera to a preset position and performs the FFC calibration (< 5 s). The camera then returns to its Home position. IR Test Pattern: On/Off) Activate Spotlight Demo: Activate Pan and Tilt Pattern:... -
Page 28: User Interface Preferences Menu
NMEA Data User Interface Preferences Menu Joystick mode: Gaming/Pilot) In managing the elevation (tilt) of the camera, the joystick can be used in one of two modes. Gaming Mode: Moving the joystick forward causes the camera to tilt up. Moving the joystick back causes the camera to tilt down. - Page 29 NMEA Data The NMEA protocol allows the camera to automatically point toward vessels and other objects that show up on the display and to track their movement. The M400 can receive three types of NMEA messages. • Radar Cursor Tracking, which is implemented using the NMEA Radar System Data (RSD) sentence format •...
-
Page 30: Nmea Settings
NMEA Data NMEA Settings Configure how the NMEA interface works with settings on the NMEA Menu. Select NMEA Data from the Main Menu or when in NMEA mode, select Menu to see the following OSD menu. Radar cursor (RSD): When this option is enabled, you can control the camera by using the cursor on the radar display screen to highlight a target. -
Page 31: Firefighter Mode-M400Xr Only
Firefighter Mode—M400XR only Overview When the system is in firefighter mode, the estimated temperature of a spot meter target area is monitored and displayed on the screen. In Firefighter mode the color palette is changed to use colored gradients that represent temperatures. When in Firefighter mode, select the MENU key on the JCU II to open the Firefighter menu to set the temperature units or Isotherm thresholds. -
Page 32: Firefighter Settings Menu
Firefighter Settings Menu Firefighter Settings Menu Use the options on this menu to define the color ranges for temperature tracking. When you select Menu when in Firefighter mode, the following on-screen menu is shown. Exit Firefighter Select this option to exit firefighter mode. If you have enabled firefighter mode, the setting reverts to disabled when the system is rebooted. -
Page 33: Video Tracking Mode-M400Xr Only
Video Tracking Mode—M400XR only Overview To enable Video Tracking mode press the right joystick button and manually center the target in the acquisition gate by pointing the camera using the joystick. Press the right joystick button again to engage the target and begin tracking. When a target is selected, the acquisition gate is no longer shown and the Tracking icon is shown on the display. - Page 34 Overview Tracking state—When the target is acquired, the acquisition gate disappears and the tracking icon is shown. Tracking icon Joystick Buttons: Left - Cancel tracking Figure 6-2: Video Tracking Mode—Tracking state Seeking state—In the seeking state, orange cross-hairs will be shown within the acquisition gate and flash at 2 Hz, while trying to acquire the target.
-
Page 35: Joystick Operation
Joystick Operation Joystick Operation When the Video Tracking mode is enabled by pressing the right joystick button, the behavior of the joystick changes so that tracker-specific features can be controlled. When acquiring a target, use the JCU II to: • Point the camera at the area containing a possible target (normal pan and tilt joystick operation). -
Page 36: M400 Reference Information
Application Programming Interface Black and White DLTV Daylight TV, used to reference visible-band cameras Export Administration Regulations Electromagnetic Interference Flat Field Correction FLIR Forward Looking Infrared Field of View Frames per Second (refresh rate) HFoV Horizontal Field of View Interface Control Document... -
Page 37: List Of Icons
List of Icons Acronyms TABLE 7.1 Acronym/Term Definition NTSC National Television System Committee on-screen-display Pan/Tilt Phase Alternating Line Power over Ethernet SCTE Society of Cable Telecommunications Engineers Software Developer’s Kit UPnP Universal Plug and Play Volts, Direct Current Visible (visible-band camera reference) List of Icons Table 7.2 lists the icons that may be shown on the screen during various operations, with a brief description of their meaning. - Page 38 List of Icons Video Display Icons (Continued) TABLE 7.2 Icon Name Description Elevation (Tilt) Shows the vertical tilt of the camera. The shaded triangle shows the approximate camera position. Focus Scale Shown when autofocus is invoked to indicate the progress of the operation.
- Page 39 List of Icons Video Display Icons (Continued) TABLE 7.2 Icon Name Description NMEA TTM Receiving NMEA messages using the NMEA Tracked Target Message Message (TTM) sentence format has been enabled; this is also known as radar tracking The camera is shutting down. Power down Scene: Night One of four scene presets (automatic gain control settings)
-
Page 40: System Specifications
System Specifications System Specifications Table 7.3 lists details about physical characteristics, power usage, and environmental features of the M400 camera. Specifications TABLE 7.3 Physical Characteristics Camera Size 32.4 cm (12.75 in) diameter by 46 cm (18.1 in) tall Camera Weight 12.22 kg (27 lb), depending on the camera model Joystick Size 9.1 X 14.2 X 8.13 cm (3.6 X 5.6 X 3.2 in) -
Page 41: Cleaning
If the camera still does not produce an image, contact the FLIR dealer or reseller who provided the camera, or contact FLIR directly (contact information is provided on the rear cover of this manual). - Page 42 Troubleshooting Tips Image too dark or too light By default, the M400 thermal camera uses an automatic gain control (AGC) setting that has proven to be superior for most applications. However, a specific environment may benefit from a different AGC setting. For example, a very cold background (such as the sky) could cause the camera to use a wider temperature range than appropriate.
- Page 43 432-0012-00-10 Rev. 110 June 2016 1.800.561.8187 information@itm.com www. .com...
