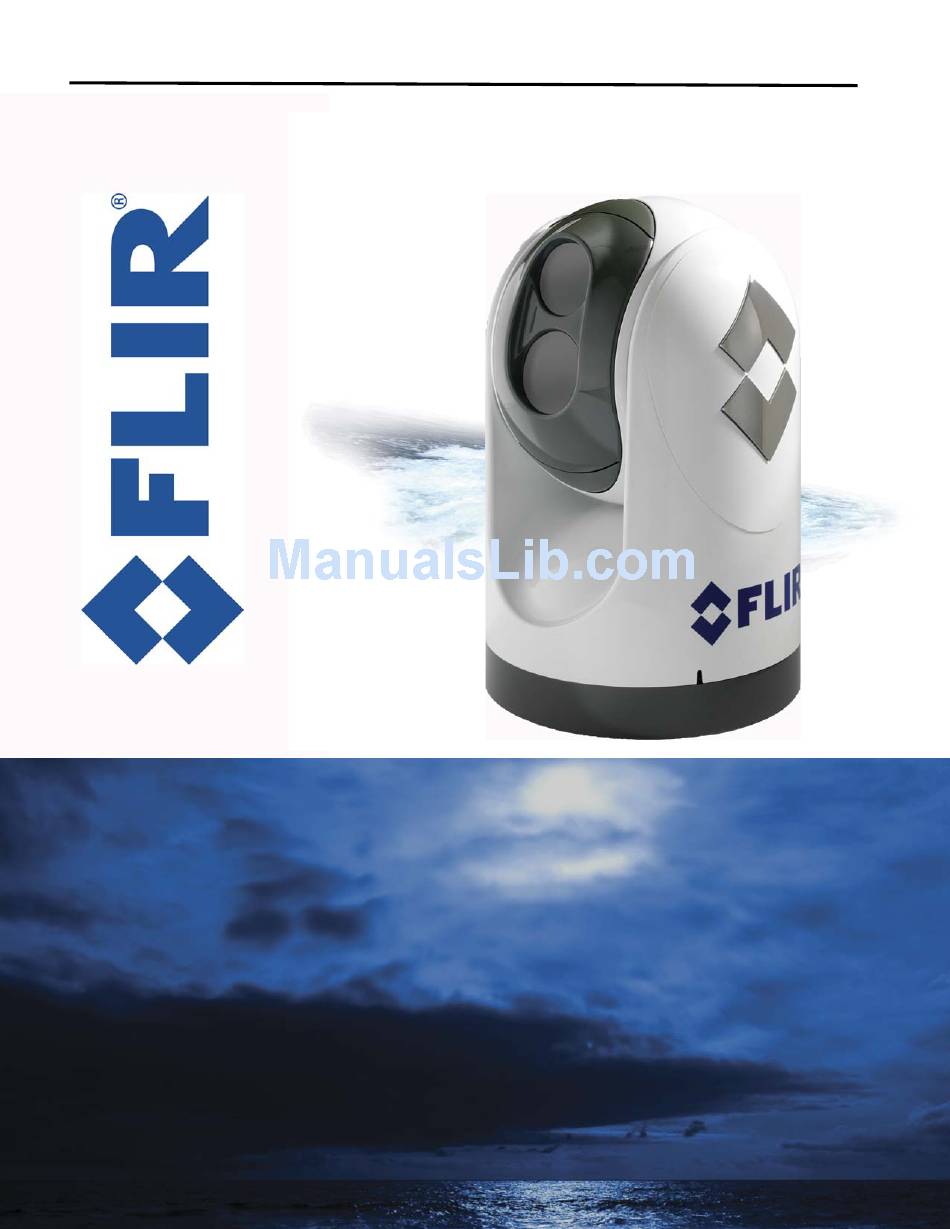

- Page 1 M-Series 432-0003-00-12 Installation Guide Revision 100 June 2009...
- Page 2 © FLIR Systems, Inc., 2009. All rights reserved worldwide. No parts of this manual, in whole or in part, may be copied, photocopied, translated, or transmitted to any electronic medium or machine readable form without the prior written permission of FLIR Systems, Inc.
-
Page 3: Table Of Contents
Contents Warnings and Cautions ........6 Installation Overview........7 Installation Components ............7 Location Considerations ............8 Camera Mounting Options ...........8 Camera Video Options ............9 JCU Mounting Options ............9 Prior to Cutting/Drilling Holes ...........10 Physical Installation ........11 Camera Unit..............11 Mounting Upside Down............11 Joystick Control Unit (JCU) ..........11 Electrical Connections........ - Page 4 Glossary Acronym/Term Definition Automatic Gain Control ANSI American National Standards Institute Electromagnetic Interference FLIR Forward Looking Infrared Interface Control Document International Electrotechnical Commission IEEE Institute of Electrical and Electronics Engineers Infrared Joystick Control Unit NMEA National Marine Electronics Association Pan/Tilt...
- Page 5 • Mounting the camera and its components • Connecting the electronics • Camera maintenance Refer to the M-Series Operator’s Manual (FLIR Doc. # 432-0003-00-10) for information about how to configure, use and operate the camera. 432-0003-00-12 rev 100 M-Series Installation Guide...
-
Page 6: Warnings And Cautions
Warnings and Cautions For safety, and to achieve the highest levels of performance from the M-Series system, always follow the warnings and cautions in this manual when handling and operating the M-Series camera system. Warning: Warning notices are used in this publication to emphasize that hazardous voltages, currents, temperatures, or other conditions that could cause personal injury or death exist with this equipment, or may be associ- ated with its use. -
Page 7: Installation Overview
Camera Mounting Options section for more details. • Four (4) captive screws for attaching the JCU as required Top down installation using Contact FLIR (+1.888.747.3547 or +33 (0) 765.79.41.94) for more mounting plate information regarding available accessories including JCUs, PoE equipment,... -
Page 8: Location Considerations
For example, you may want to add an additional monitor, or perhaps a JCU and monitor pair. Refer to the M-Series ICD (FLIR Document Number 432-0003-00) for interconnect diagrams showing several possible system configurations. Camera Mounting Options... -
Page 9: Camera Video Options
“top down” mounting accessory kits. This type of installation will make use of either a mounting plate or mounting riser (these optional accessories are available from FLIR). To install, the camera is first mounted to the accessory plate or riser, then the plate or riser is secured to the surface with screws from above. -
Page 10: Prior To Cutting/Drilling Holes
Installation Overview dimensions). The magnetic compass safe distance for the JCU is 21.7 inches (55 cm). The JCU can be mounted to the dash (or other surface) in any orientation, using four (4) captive mounting screws that hold panel mounting clamps. When the mounting screws are tightened, the panel mounting clamps rotate and extend away from the JCU at a right angle, and come into contact with the mounting surface. -
Page 11: Physical Installation
Physical Installation Physical Installation Use a thread locking compound such as Loctite 242 or equivalent with all metal to metal threaded connections Camera Unit Using the template supplied with the camera as a guide, mark the location of the holes for mounting the camera. Make sure the template is oriented properly relative to the bow of the vessel;... - Page 12 Physical Installation console. Be sure to follow the template closely when cutting the hole.In par- ticular, ensure the corners are marked precisely and cut square. Apply the adhesive side of the rubber gasket to the back of the JCU on the surface that faces the mounting platform.
-
Page 13: Electrical Connections
Ensure the camera is properly grounded. Typical to good grounding prac- tices, the camera chassis ground should be provided using the lowest resis- tance path possible. FLIR recommends using a grounding strap anchored to one of the M6 mounting bolts in the base of the camera and connected... -
Page 14: Video Connections
The video cables from the camera are terminated with F-type male connec- tors. Video cables of various lengths with F-type (female) connectors at one end and BNC- connectors at the other end are available from FLIR. The video cable used should be rated as RG59U or better to ensure an ade- quate quality video signal. -
Page 15: M-Series Maintenance
M-Series Reference CHAPTER 2 M-Series Maintenance The M-Series components are designed for years of rugged, trouble-free use. When the system is not in use, keep the JCU cover in place for addi- tional protection. Cleaning The JCU To clean the JCU, use a soft cloth and clean water. Mild household cleaner such as Windex can also be used to remove tougher stains or spots. -
Page 16: Cleaning The Camera Body
Drawings Cleaning the camera body Ball Do not pressure wash the camera, especially around the FLIR logos, as Side that could force water through the camera seals. Clean the interface Cover between the yoke and base often to prevent accumulation of debris or salt deposits. -
Page 17: Specifications
The drawings included in this document provide more detailed dimensions and mounting information. If you have any questions, call the Applications Experts at FLIR: +1.888.747.3547 or +33 (0) 765.79.41.94. Caution: If the installation template is printed from the .pdf file, the printout may not be to scale. -
Page 18: External References
Specifications External References Reference FLIR 432-0003-00-10 M-Series Operator’s Guide ANSI/SCTE 01 2006 “F” Port, Female, Outdoor (http://www.scte.org) IEC 60169-24: Radio-frequency coaxial connectors with screw coupling, typically for use in 75 O cable distribution systems (Type F). IEC 60945 Maritime navigation and radio communication equipment and... - Page 19 NOTES 432-0003-00-10 rev 100 M-Series Operator’s Manual...
- Page 20 PH:+ 1 805 964 9797 FX: + 1 805 685 2711 sales@flir.com EUROPE CVS Eurasian Headquarters FLIR Systems CVS BV Charles Petitweg 21 4847 NW Teteringen - Breda Netherlands PH: + 31 (0) 765 79 41 94 FX: + 31 (0) 765 79 41 99 flir@flir.com...
