Introduction

1.8 Exploded Views

1
16
15
14
13
12

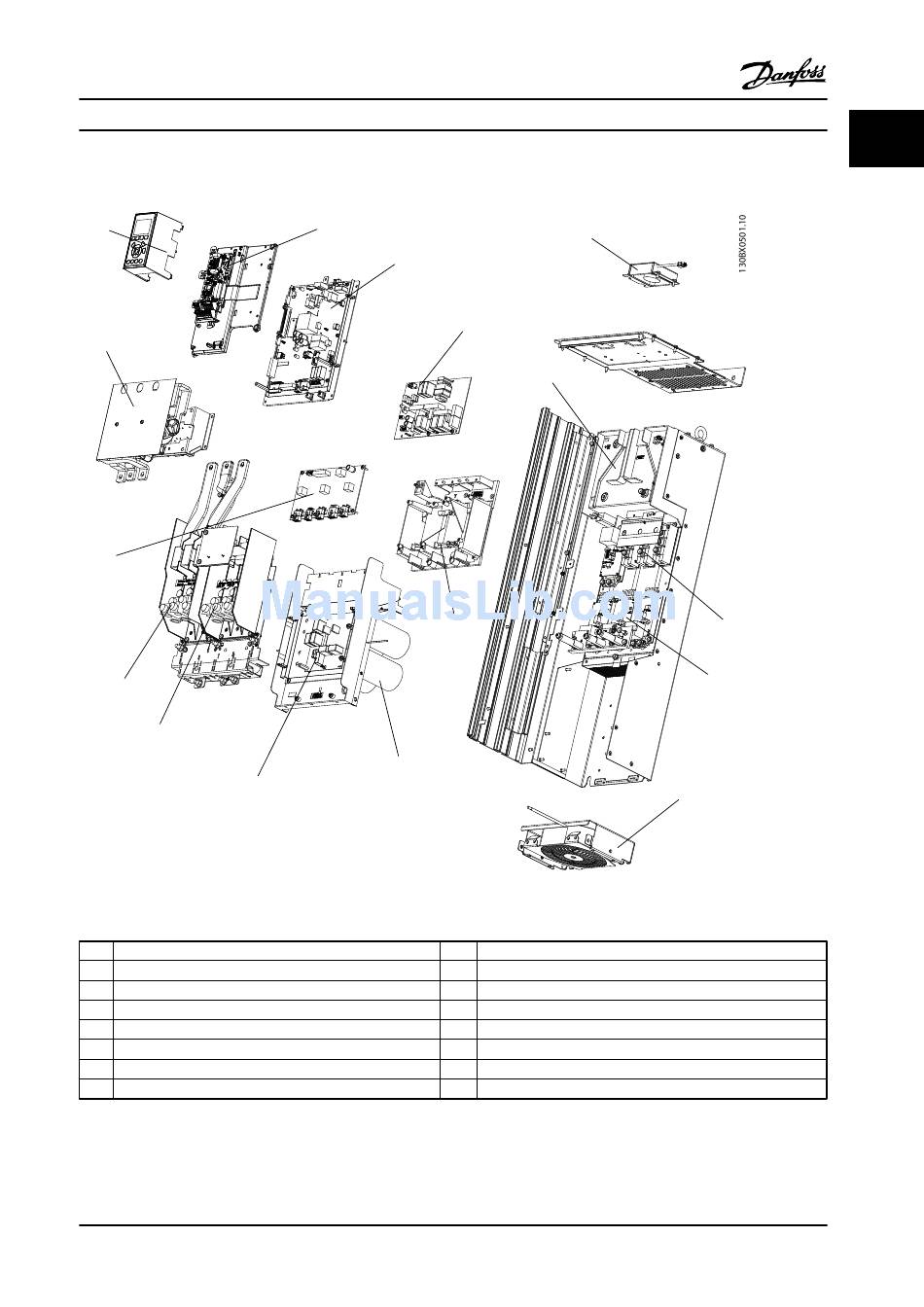

Figure 1.1 Exploded View D3h Frame Size (D1h Frame is similar)
1 Local control panel mounting bracket
2 Control card and mounting plate
3 Power card and mounting plate
4 Inrush card
5 Top fan (IP20 only)
6 DC inductor
7 SCR/Diode modules
8 IGBT modules
Table 1.9 Legend to Figure 1.1
MG94A222
Service Manual
2
3
4
10
11
9 Heatsink fan
10 Gate drive support bracket
11 Capacitor bank
12 Balance/High frequency card
13 Motor output terminals
14 Line power input terminals
15 Gate drive card
16 (optional) RFI filter
Danfoss A/S © Rev. 2014-02-10 All rights reserved.
5
6
8
9
1 1
7
11
