Operator Interface and Adju...
The display is divided into three sections
2 2
Top section
(a) shows the status when in Status mode or up to two
variables when not in Status mode and in the case of
Alarm/Warning.
The number of the Active Set-up (selected as the Active
Set-up in 0-10 Active Set-up) is shown. When programming
in another set-up than the Active Set-up, the number of
the set-up being programmed appears to the right in
brackets.
Middle section
(b) shows up to 5 variables with related unit, regardless of
status. When there is an alarm/warning, the warning is
shown instead of the variables.
It is possible to toggle between three status readout
displays by pressing [Status].
Operating variables with different formatting are shown in
each status screen.
Several values or measurements can be linked to each of
the displayed operating variables. The values/
measurements displayed can be defined via 0-20 Display
Line 1.1 Small, 0-21 Display Line 1.2 Small, 0-22 Display Line
1.3 Small, 0-23 Display Line 2 Large and 0-24 Display Line 3
Large, which can be accessed via [QUICK MENU] Q3
Function Setups, Q3-1 General Settings, Q3-13 Display
Settings.
Each value/measurement readout parameter selected in
0-20 Display Line 1.1 Small to 0-24 Display Line 3 Large has
its own scale and number of digits after a possible decimal
point. Larger numeric values are displayed with few digits
after the decimal point.
Ex.: Current readout
5.25 A; 15.2 A 105 A.
Status display I
This read-out state is standard after start-up or initiali-
zation.
Press [Info] to obtain information about the value/
measurement linked to the displayed operating variables
(1.1, 1.2, 1.3, 2, and 3).
22
Service Manual
See the operating variables shown in the display in this
figure. 1.1, 1.2 and 1.3 are shown in small size. 2 and 3 are
shown in medium size.
Status display II
See the operating variables (1.1, 1.2, 1.3, and 2) shown in
the display in this figure.
In the example, speed, motor current, motor power, and
frequency are selected as variables in the first and second
lines.
1.1, 1.2 and 1.3 are shown in small size. 2 is shown in large
size.
Status display III
This state displays the event and action of the Smart Logic
Control.
Danfoss A/S © Rev. 2014-02-10 All rights reserved.
Status
799 RPM
1.1
1.2
Auto Remote Ramping
2
3

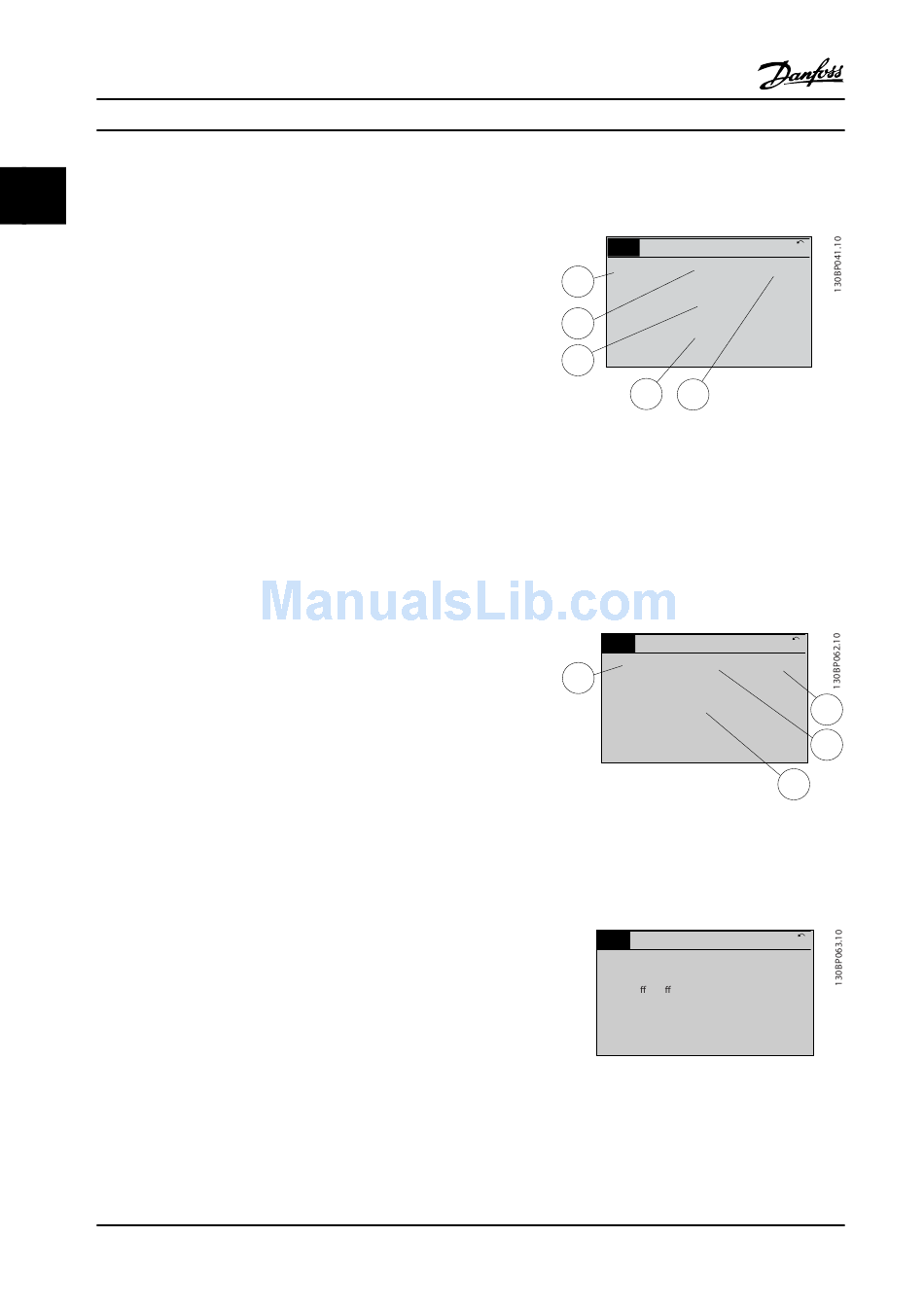

Figure 2.2 Status Display I
Status
207RPM
1.1
Auto Remote Running
Figure 2.3 Status Display II
Status
778 RPM
State: 0 o 0 (o )
When: -
Do: -
Auto Remote Running
Figure 2.4 Status Display III
1 (1)
7.83 A 36.4 kW
0.000
53.2%
1.3
1 (1)
5.25A 24.4 kW
6.9Hz
1.3
1.2
2
1 (1)
0.86 A 4.0 kW
