Danfoss VLT FC 100 Service Manual page 129

Spare Parts
Graphic
Reference
FC 102, FC 103, and FC 202
Figure 9.1 N110T4
Figure 9.2 N132T4
Figure 9.2 N160T4
Figure 9.3 N200T4
Figure 9.4 N250T4
Figure 9.5 N315T4
Table 9.1 DC Capacitor Bank Layout 380-500 V

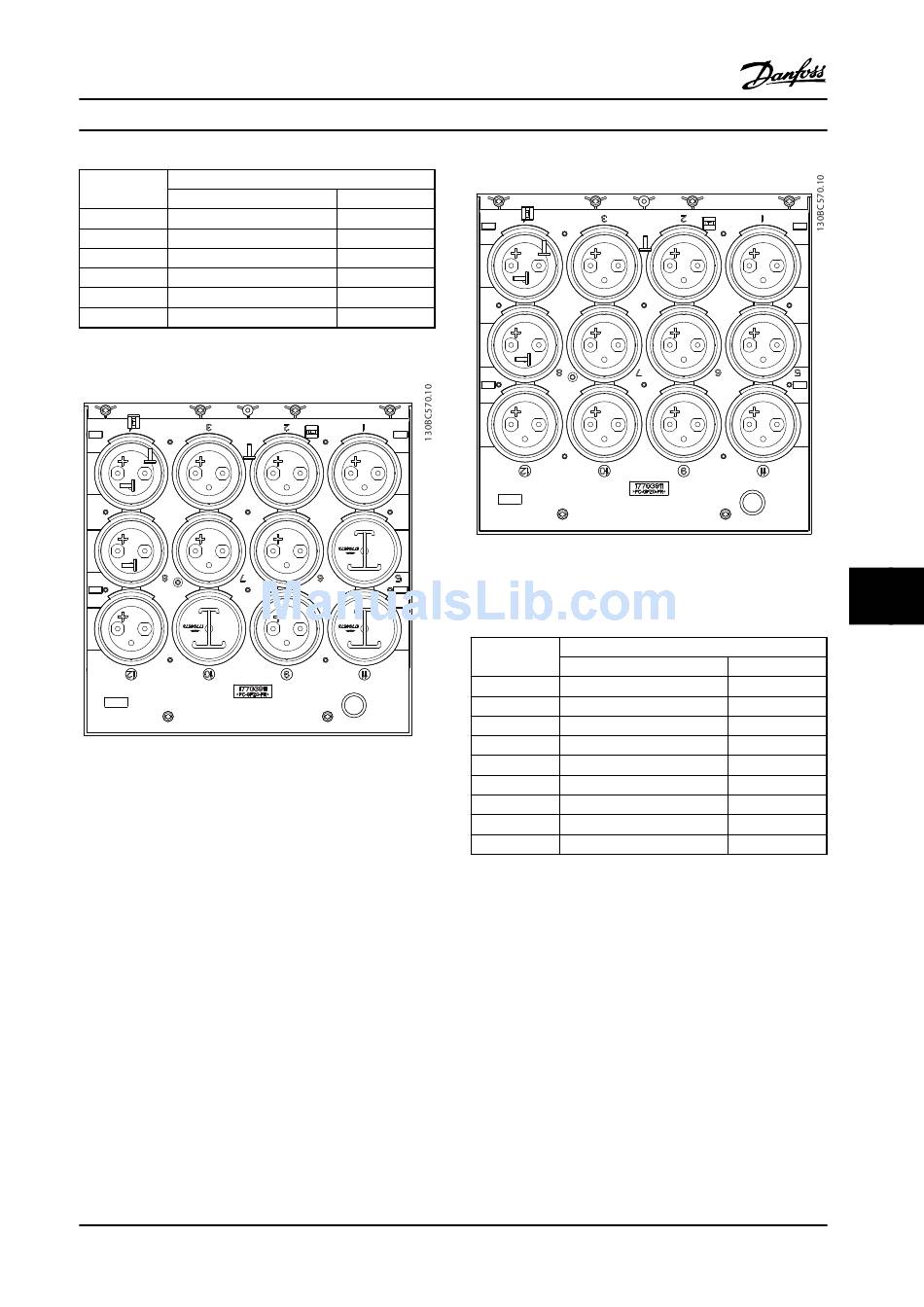

Figure 9.6 DC Capacitor Bank Layout.
See Table 9.2 for Details.
MG94A222
Service Manual
Model
FC 302
N90kT5
N110T5
N132T5
N160T5
N200T5
N250T5
Danfoss A/S © Rev. 2014-02-10 All rights reserved.
Figure 9.7 DC Capacitor Bank Layout.
SeeTable 9.2 for Details.
Graphic
Reference
FC 102, FC 103, and FC 202
Figure 9.2 N75kT7
Figure 9.2 N90kT7
Figure 9.2 N110T7
Figure 9.2 N132T7
Figure 9.2 N160T7
Figure 9.6 N200T7
Figure 9.6 N250T7
Figure 9.7 N315T7
Figure 9.7 N400T7
Table 9.2 DC Capacitor Bank Layout 525-690 V
Model
FC 302
N55kT7
N75kT7
N90kT7
N110T7
N132T7
N160T7
N200T7
N250T7
N315T7
127
9 9
