3 Installation

You can install the EntryProx unit by using a standard installation method or a secure installation
method. Both installation methods require that you mount the EntryProx unit to a wall or glass
surface.
3.1

Assembly Parts

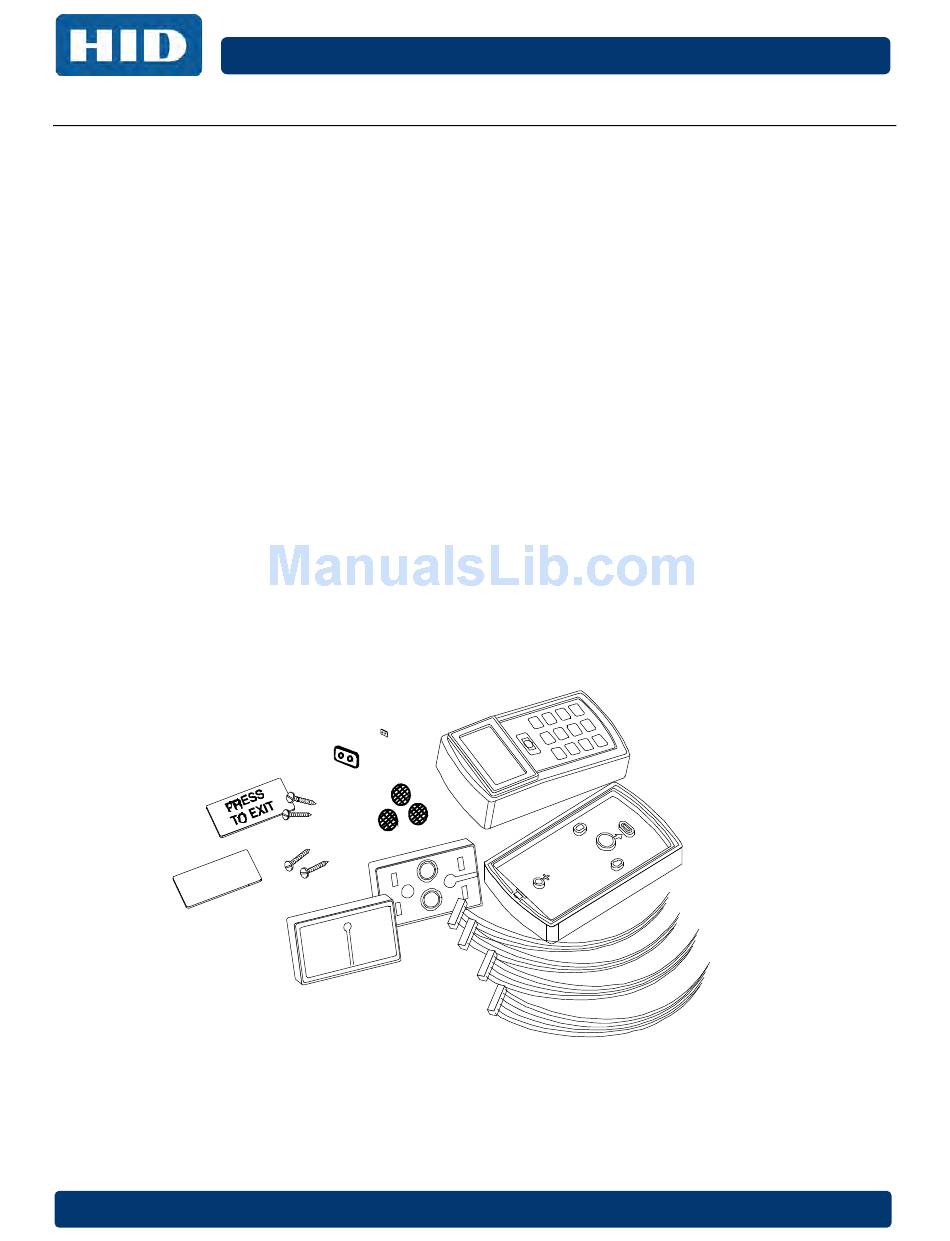

Before you install the EntryProx, be sure that you have the correct factory and installer supplied
parts listed and illustrated below.
A. Controller Keypad Unit
B. Controller Keypad Backplate
C. Cable Assemblies
D. Antenna Backplate
E. Antenna Housing
F. Blank Label
G. Mounting Screws
H. Press to Exit Label
1 Pre-installed on main board connector P2, pins 5 & 6.
2
Not shown in the following figure.
3 Caution: Replace Battery with Panasonic BR1225 only. Use of another battery may present a risk of
fire or explosion. Battery may explode if mistreated. DO NOT recharge, disassemble or dispose of
battery in fire.
Factory Supplied Parts
H
Page 8 of 38
K
I
J
G
F
E
EntryProx User Manual, 4045-905, Rev. C.4
I. Silicone Rubber Cushion
J. Self-Adhering Pads
K. 2-pin Jumper
L. Filler Piece
M. Lithium "Coin Cell" Battery
N. Cover screws – hex and tamper
O. Hex wrench
L
D
C
1
2, 3
2
2
A
B
