5 Wiring

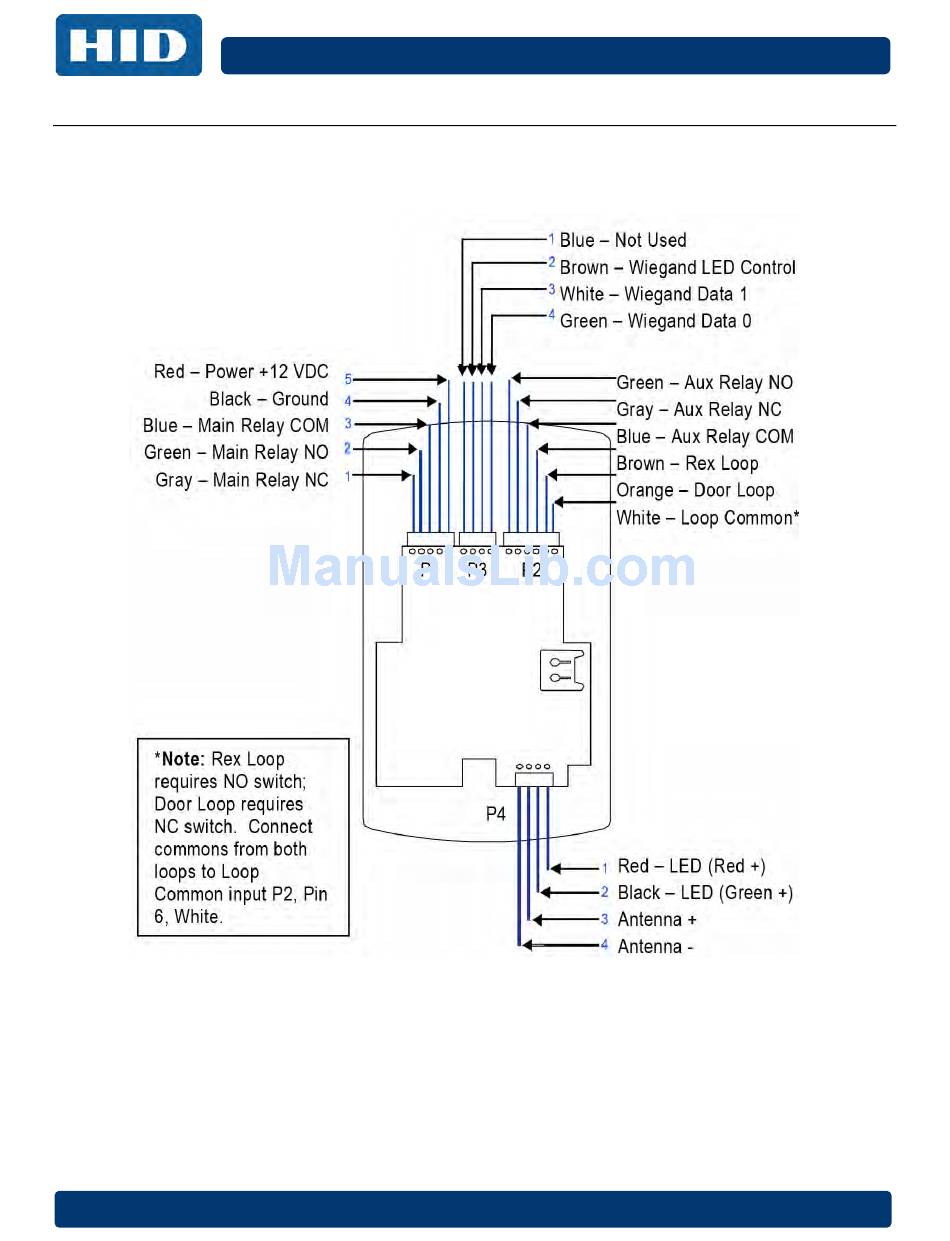

The following figure illustrates the location and description of the four pin connectors on the main
circuit board and its use. Connector P5 is not used.
Pin Locator Diagram
The main relay for the door-locking device is wired to connector P1 on the EntryProx main circuit
board.
5.1

Gate Actuator

You can make the wire connections for a gate actuator by connecting the Blue (C) wire and the
Green (N/O) wire directly to the input.
Note: If you connect a gate actuator, DO NOT connect a power supply to the relay.
