HID BluFi-UP00 Install Manual

HID® BluFi-UP00
Install Guide
Overview
BluFi-UP are gateways with Universal Power Options:
• DC power supply 9v-24v
• Power Over Ethernet connections.
BluFi devices make it easy and cost efficient to cover an area with BLE to internet connectivity to take advantage of centralized
management, realtime condition monitoring, or location services with a fraction of the effort required by alternative technologies.
System components
1
2
1
BluFi™ model BluFi-UP00 – Bluetooth to Eithernet/WiFi
Gateway.
2
Bluzone – Cloud Fleet Management and Condition
Monitoring dashboard.
3
BEEKs™ Bluetooth Low Energy Beacons.
Best practices
• Maximum of 15 – 20 beacons per BluFi for best results
• Maximum 20 – 30 meters from beacon to BluFi for best
results (distance will decrease for increased interference/
blockages). For RTLS applications, the BEEKS Duress
Badge signal must be received by at least three BluFis in
the vicinity.
Network troubleshooting
• 2.4 - 5 GHz WiFi & Ethernet
• HTTPS port 443 must be open
• DHCP required
• 1 Mbps upload speed required
• Captive WiFi portals not compatible
• Compatible certificate formats: .pem, .der
• Some networks may require adding the BluFi MAC
address to an allow list
PLT-05543, Rev. A.4

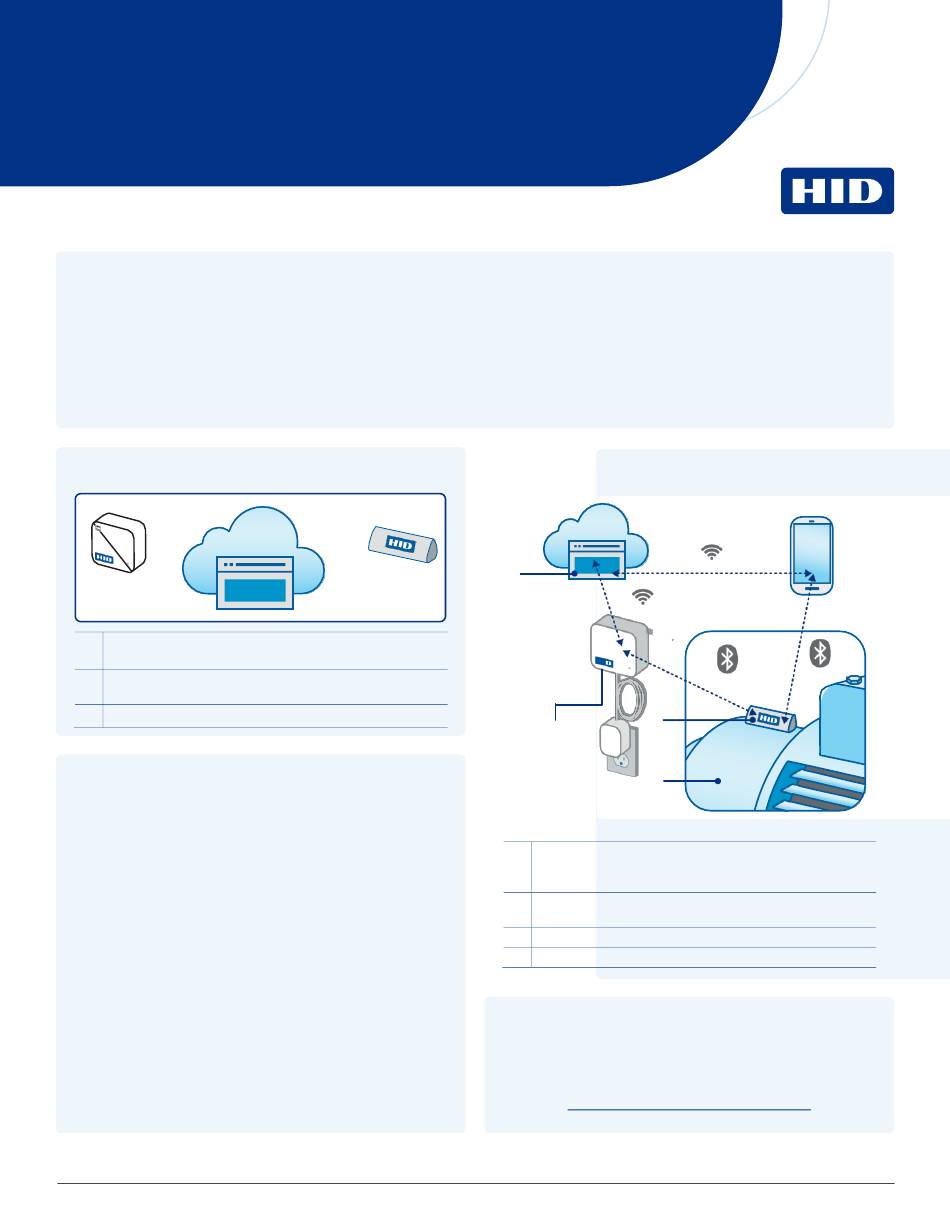

Terminology
3
1
1
Bluzone – Secure cloud-based SaaS to centrally manage BEEKs
via BluFi gateways. Additionally, monitor, store and analyze
performance data collected from deployed BEEKs fleet.
2
BluFi Gateway – Receives data from BEEKs over Bluetooth
and sends to Bluzone Cloud.
3
BEEKs CM – Sends vibration and temperature data to BluFi.
4
Asset – Equipment to be monitored or tracked
Prerequisites
• Set up Bluzone account
• Download Bluzone mobile app
• Additional installation guides are available and can be
found at:
1
WiFi
WiFi
or
Bluetooth
3
2
4
https://hid.gl/HID-BluFi-installation
Bluetooth
