4.4 Controller Keypad Wiring – Secure Installation
In a secure installation, the waterproof antenna housing is removed from the controller keypad and
mounted outside of a secured area. The control unit is installed inside the secured area. The blank
filler piece is then inserted into the controller keypad in its place.
Note: This is appropriate for exterior doors or medium-to-high risk locations.
To wire the EntryProx unit for a secure installation, refer to the following two figures as applicable
and perform these instructions.
1. Touch a grounded object before touching the main circuit board to guard against possible
static discharges.
2. Remove the main circuit board by pushing outward on the two spring tabs in the direction
shown in the figure in Section 4.3: Controller Keypad Wiring.
3. Lift the main circuit board.
4. Unplug the four-pin cable assembly from connector P4 on the main circuit board.
5. Release the antenna housing from the controller keypad by pressing inward on the four
securing tabs.

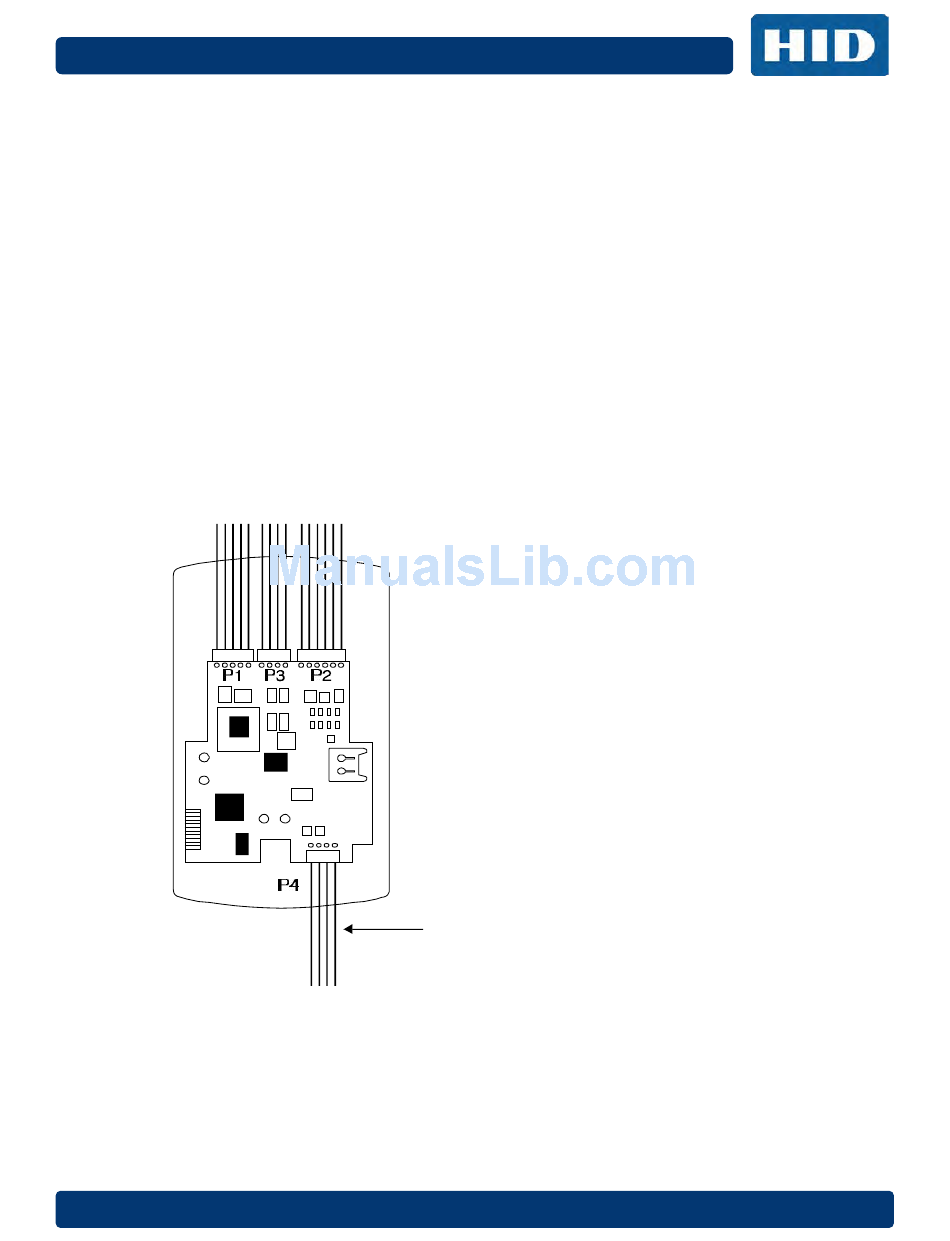

Removing the P4 Connector
September 2016
P4 Connector Cable Assembly
