6. Remove the antenna housing from the controller keypad by pushing forward as shown in
the following figure.

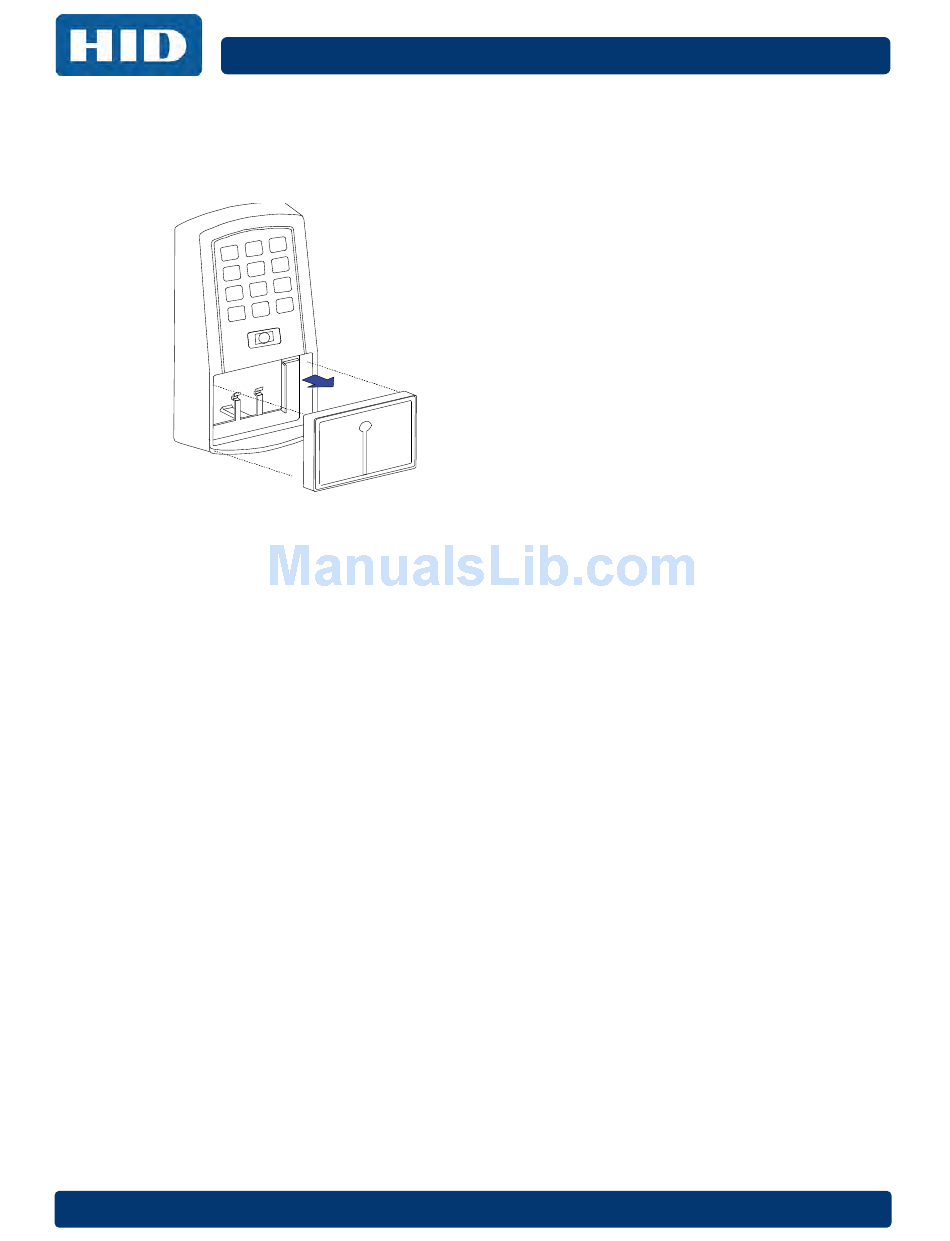

Removing the Antenna Housing
7. Insert the extra 10-inch antenna cable assembly into connector P4.
8. Splice in additional antenna cable Alpha 1174C (22AWG) up to a maximum of 10 feet.
Note: The Alpha 1174C antenna cable is not supplied with the EntryProx unit.
9. Make the wiring connections for the Request to Exit switch, the door locking devices, the
power supply, and the alarm inputs and outputs. See Section 5: Wiring for wiring diagrams.
10. Reattach the main circuit board to the controller keypad unit.
11. Insert the blank filler piece into the controller keypad unit.
12. Attach the controller keypad unit to the mounted backplate and secure the EntryProx unit
with a hex screw or tamper screw.
13. Run the additional antenna cable to the antenna housing location.
14. Mount and wire the antenna housing
