EntryProx User Manual, 4045-905, Rev. C.4

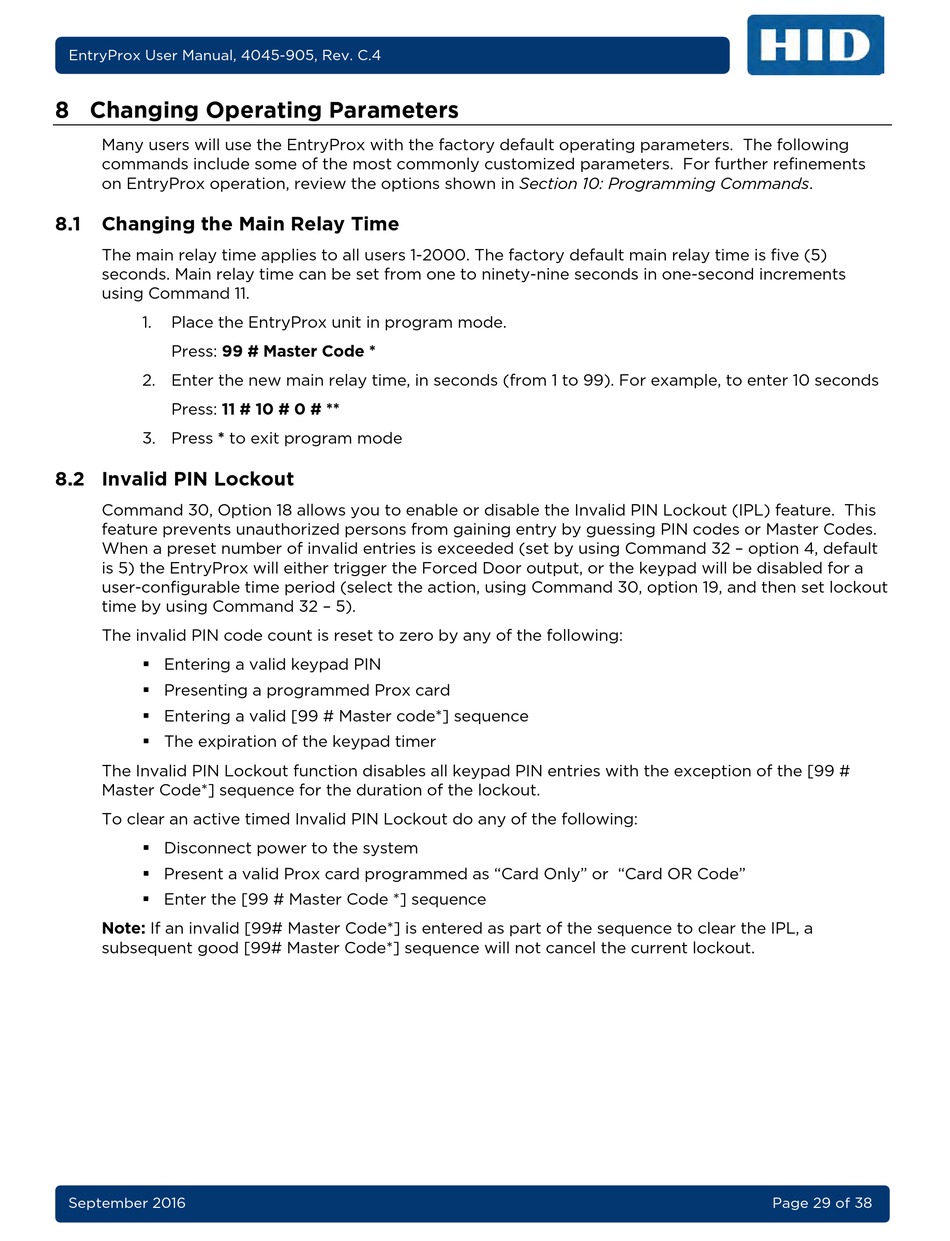

8 Changing Operating Parameters

Many users will use the EntryProx with the factory default operating parameters. The following
commands include some of the most commonly customized parameters. For further refinements
on EntryProx operation, review the options shown in Section 10: Programming Commands.
8.1

Changing the Main Relay Time

The main relay time applies to all users 1-2000. The factory default main relay time is five (5)
seconds. Main relay time can be set from one to ninety-nine seconds in one-second increments
using Command 11.
1. Place the EntryProx unit in program mode.
Press: 99 # Master Code *
2. Enter the new main relay time, in seconds (from 1 to 99). For example, to enter 10 seconds
Press: 11 # 10 # 0 # **
3. Press * to exit program mode

8.2 Invalid PIN Lockout

Command 30, Option 18 allows you to enable or disable the Invalid PIN Lockout (IPL) feature. This
feature prevents unauthorized persons from gaining entry by guessing PIN codes or Master Codes.
When a preset number of invalid entries is exceeded (set by using Command 32 – option 4, default
is 5) the EntryProx will either trigger the Forced Door output, or the keypad will be disabled for a
user-configurable time period (select the action, using Command 30, option 19, and then set lockout
time by using Command 32 – 5).
The invalid PIN code count is reset to zero by any of the following:
 Entering a valid keypad PIN
 Presenting a programmed Prox card
 Entering a valid [99 # Master code*] sequence
 The expiration of the keypad timer
The Invalid PIN Lockout function disables all keypad PIN entries with the exception of the [99 #
Master Code*] sequence for the duration of the lockout.
To clear an active timed Invalid PIN Lockout do any of the following:
 Disconnect power to the system
 Present a valid Prox card programmed as "Card Only" or "Card OR Code"
 Enter the [99 # Master Code *] sequence
Note: If an invalid [99# Master Code*] is entered as part of the sequence to clear the IPL, a
subsequent good [99# Master Code*] sequence will not cancel the current lockout.
September 2016 Page 29 of 38
