Assembly Instructions

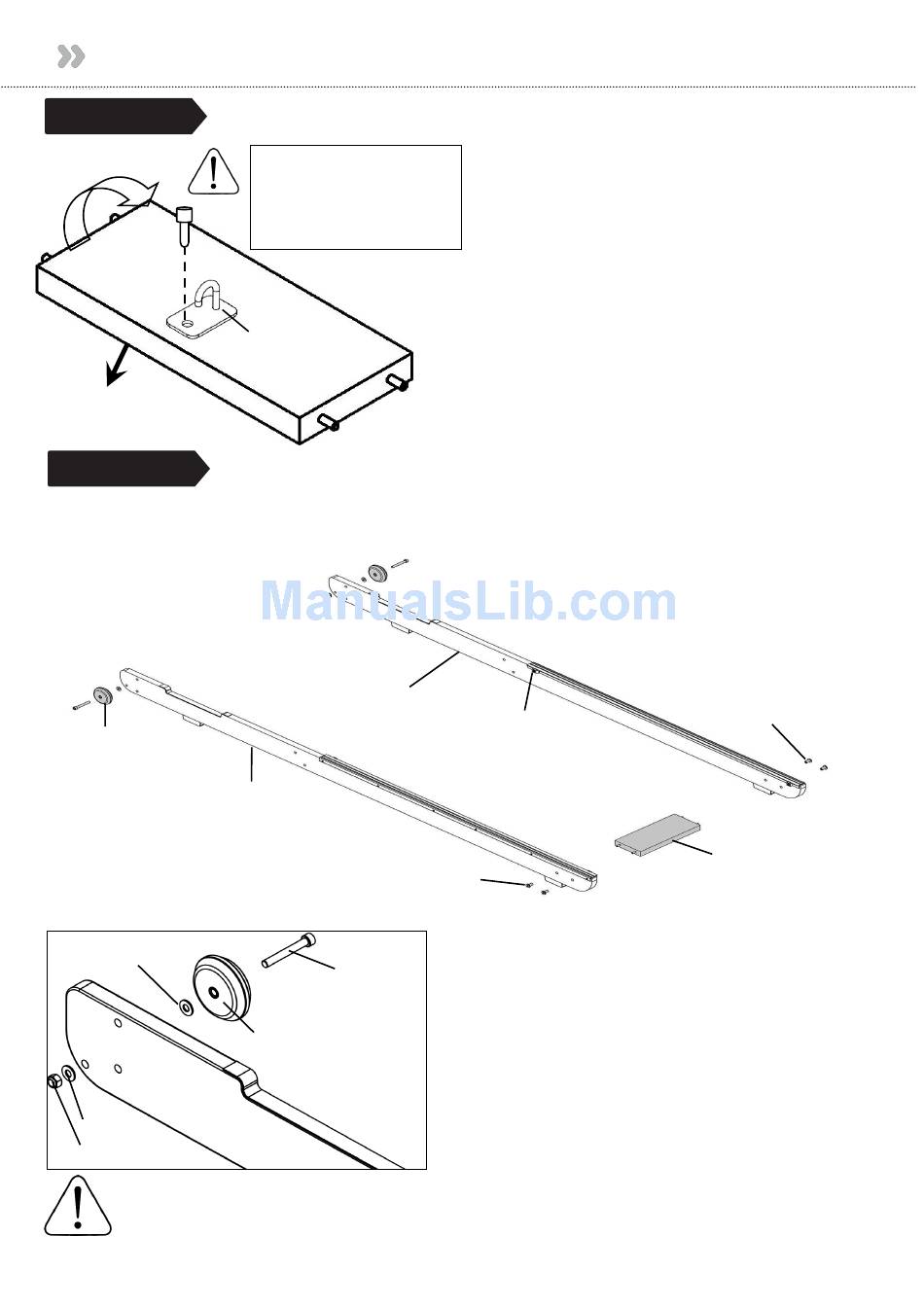

STEP 1
Pre-installed bolt
Towards Front of Rower
STEP 2
Next, connect the Side Rail Left[2] and Side Rail Right[2] using 4x M6x15mm Bolts
[10] and Rear Brace[4]. DO NOT TIGHTEN.
Transport Wheel
Assembly
Side Rail Left
Tip: Bumpstops facing inside of rail for correct assembly orientation.
Washer
Washer
Nylock Nut
Note Transport wheels must be
mounted on the outside of Side
Rails as pictured above.
Rear Brace Assembly
Rotate Rear Brace to
correct orientation
before assembly onto
Side Rails
Bungee Hook Mount
Rear Brace
(Underside)
Side Rail/Transport Wheel Assembly
Side Rail Right
M6x15mm Bolts
Transport Wheel Axle
Transport Wheel
Start with the Rear Brace and on the
underside you will find a pre-installed bolt.
From the hardware kit, take the Bungee
Hook Mount and install it onto the Rear
Brace as shown. Note the orientation of
the Brace and hook must be correct in
order to hold the end of the Bungee
Shock Cord as depicted by the arrow
in the illustration, which points toward
the front of rower.
Bumpstop
Once the Rear Brace and Side Rails are
assembled, mount the Transport Wheel
Assembly[6] onto the Left/Right Side Rails[2].
Note: One washer on outside and one washer
on the inside of the side rail.
Do not over tighten the Transport Wheel Axle
as it may inhibit Transport Wheel rotation.
9
M6x15mm Bolts
Rear Brace
