3--3

AD101 Analog Input Modules

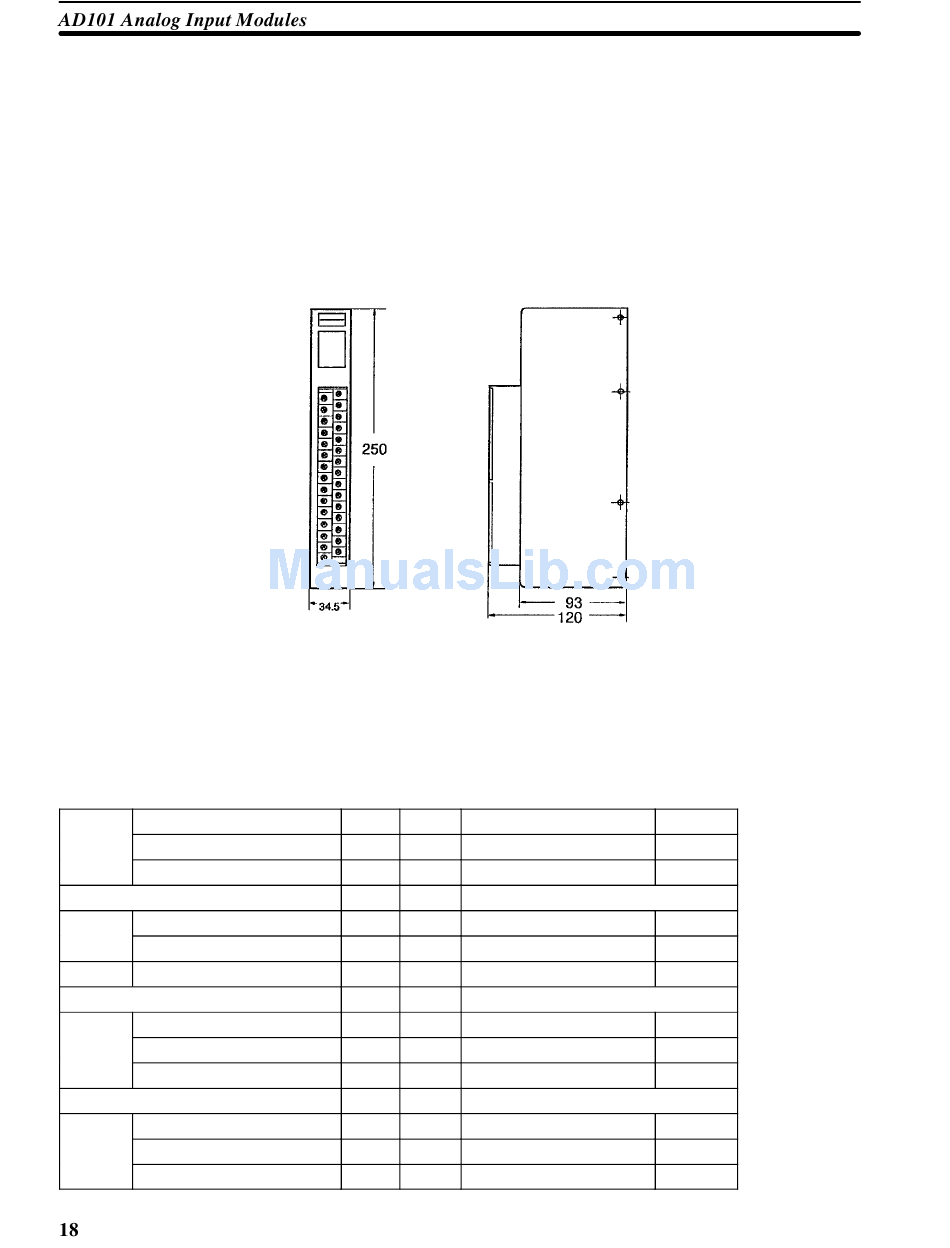

3--3--1 Dimensions
3--3--2 Wiring
Terminal Allocations
Point 1 + Voltage/current input 1 0
-- Current input 1 1
-- Voltage/current input 1 2
Point 2 + Voltage/current input 2 4
-- Current input 2 5
-- Voltage/current input 2 6
Not connected 7
Point 3 + Voltage/current input 3 8
-- Current input 3 9
-- Voltage/current input 3 10
Point 4 + Voltage/current input 4 12
-- Current input 4 13
-- Voltage/current input 4 14
All dimensions given below are in millimeters.
15 + Voltage/current input 5
16 -- Current input 5
17 -- Voltage/current input 5
Shield 3 18 Shield
19 + Voltage/current input 6
20 -- Current input 6
21 -- Voltage/current input 6
22 Not connected
23 + Voltage/current input 7
24 -- Current input 7
25 -- Voltage/current input 7
Shield 11 26 Shield
27 + Voltage/current input 8
28 -- Current input 8
29 -- Voltage/current input 8
Section 3--3
Point 5
Point 6
Point 7
Point 8
