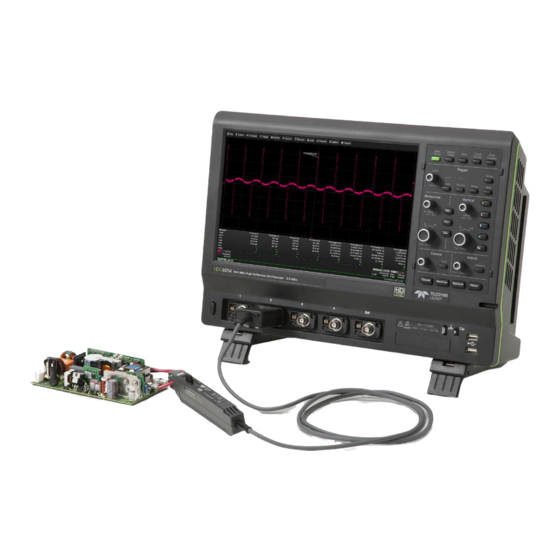

- Page 1 Operator’s Manual CP030/CP030A CP031/CP031A Current Probes...
- Page 3 CP03x/CP03xA Current Probes Operator’s Manual September, 2016...
- Page 4 Teledyne LeCroy documentation for internal educational purposes. Teledyne LeCroy is a registered trademark of Teledyne LeCroy, Inc. Windows is a registered trademark of Microsoft Corporation. Other product or brand names are trademarks or requested trademarks of their respective holders. Information in this publication supersedes all earlier versions.
-
Page 5: Table Of Contents
Environmental Characteristics ......................5 Physical Characteristics ........................5 Safety Ratings ............................ 6 CP030/CP030A Derating Curve - Maximum Input Current vs. Frequency*........7 CP030/CP030A Insertion Impedance vs. Frequency* ..............7 CP031/CP031A Derating Curve - Maximum Input Current vs. Frequency ........8 CP031/CP031A Insertion Impedance vs. - Page 6 CP03x Test Record ..........................17 Care and Maintenance .........................18 Cleaning ............................18 Calibration Interval ..........................18 Service Strategy ..........................18 Troubleshooting ..........................18 Returning a Product for Service ......................19 Teledyne LeCroy Service Centers .......................20 Warranty ...............................21 Certifications ............................22 EMC Compliance ..........................22 Safety Compliance ...........................23 Environmental Compliance ......................24...
-
Page 7: Safety Instructions
Comply with the following safety precautions to avoid personal injury or damage to your equipment: Use only as specified. The probe is intended to be used only with compatible Teledyne LeCroy instruments. Using the probe and/or the equipment it is connected to in a manner other than specified may impair the protection mechanisms. - Page 8 CP03x/CP03xA Current Probes Do not overload; observe all ratings. To avoid electric shock or fire, do not connect the current probe to any wire that carries voltages or currents that exceed the ratings of the probe. Connect and disconnect properly. Connect the probe to the measurement instrument before connecting to the circuit/conductor being measured.
-
Page 9: Introduction
DC, AC and impulse currents. The CP030 and CP030A have a 50 MHz bandwidth and are designed to measure continuous currents up to 30 Amp. The CP030-3M probe has a 10 MHz bandwidth and is designed to measure continuous currents up to 30 Amp. -
Page 10: Specifications
CP03x/CP03xA Current Probes Specifications For the most current specifications, see the probe product pages at teledynelecroy.com. Specifications are subject to change without notice. Warranted Characteristics CP030/CP030-3M CP030A CP031 CP031A Amplitude Accuracy ±1.0 % of reading to 30 Arms ±1.0 % of reading to 30 Arms... -
Page 11: Typical Characteristics
Operator’s Manual Typical Characteristics CP030/CP030-3M CP030A CP031 CP031A Output voltage 0.1 V/A 0.1 V/A & 1 V/A 0.1 V/A 0.1 V/A & 1 V/A Sensitivity Temperature ±2% or less (0⁰C to +40⁰C) ±2% or less (0⁰C to +40⁰C) Coefficient Noise 2.5 mArms or less 320 µArms... -
Page 12: Safety Ratings
CP03x/CP03xA Current Probes Safety Ratings Probe Designation Type D Measurement Category No rated measurement category Safe Voltage Rating Use only on fully insulated conductors Pollution Degree Definitions (per IEC/EN 61010-2-032:2012) Type D current probe is intended to be applied around or removed from insulated conductors. No rated measurement category;... -
Page 13: Cp030/Cp030A Derating Curve - Maximum Input Current Vs. Frequency
Operator’s Manual CP030/CP030A Derating Curve - Maximum Input Current vs. Frequency* * Does not apply to CP030-3M. CP030/CP030A Insertion Impedance vs. Frequency* * Does not apply to CP030-3M. -
Page 14: Cp031/Cp031A Derating Curve - Maximum Input Current Vs. Frequency
CP03x/CP03xA Current Probes CP031/CP031A Derating Curve - Maximum Input Current vs. Frequency CP031/CP031A Insertion Impedance vs. Frequency... -
Page 15: Operation
Operator’s Manual Operation Precautions The sensor head is a precision assembly consisting of a molded component with a ferrite core and a Hall effect element. It may be damaged if subjected to sudden changes in temperature, mechanical strain or shock, or application of static electricity. The mating surfaces of the sensor are precision ground and should be treated with care. -
Page 16: Connecting To The Test Instrument
CP03x/CP03xA Current Probes Connecting to the Test Instrument The probe has been designed for use with the Teledyne LeCroy instruments equipped with the ProBus interface. When you attach the probe output connector to the instrument’s input connector, the instrument will: Recognize the probe model •... -
Page 17: Operating With An Oscilloscope
The front panel Volts/div knob controls the oscilloscope’s scale factor and the probe’s internal attenuation to give full available dynamic range from 10mA/div to 15 A/div for CP030 and CP031, or 1 mA/div to 15 A/div for CP030A and CP031A. CP031A and CP031A will automatically adjust attenuation based on the A/div setting. - Page 18 CP03x/CP03xA Current Probes AC Coupling In general, using offset to adjust a DC current on the screen is the preferred method to measure transient signals in the presence of a larger DC currents. The offset has limits that will cause a signal that is beyond the linear operating range of the probe to go off the screen, preventing measurement errors.
-
Page 19: Performance Verification
Performance Verification This procedure can be used to verify the warranted characteristics of the probe. The recommended calibration interval for the models CP030, CP030-3M, CP030A, CP031, and CP031A Current Probes is one year. The complete performance verification procedure should be performed as the first step of annual calibration. Performance verification can be completed without removing the probe covers or exposing the user to hazardous voltages. -
Page 20: Test Equipment Required
Description Minimum Requirements Example Equipment Wide Band Oscilloscope 200 MHz bandwidth Teledyne LeCroy WaveRunner 6 Zi ProBus interface equipped Digital Multimeter (2) DC: 0.1% Accuracy Agilent Technologies 34401A 5½ digit resolution... -
Page 21: Functional Check
Operator’s Manual Functional Check The functional check will verify the basic operation of the probe functions. It is recommended to perform the functional check prior to the performance verification procedure. 1. Open the C1 setup dialog and confirm that the bandwidth is set to Full (BWL OFF). -
Page 22: Performance Verification Test Record
CP03x/CP03xA Current Probes 1. Set the Function generator to 50 Hz sine wave, output voltage at 3 Vrms with 50Ω output. 2. Remove the probe from the instrument and reconnect using the ProBus extension cable. Connect the BNC male connector of the ProBus extension to DMM #1 using a BNC Female to Dual Banana adapter. -
Page 23: Cp03X Test Record
Operator’s Manual CP03x Test Record Model: _________________________________ Serial Number: _________________________________ Asset/Tracking Number: _________________________________ Date: _________________________________ Technician: _________________________________ Equipment Model Serial Number Calibration Due Date Digital Multimeter #1 Digital Multimeter #2 Function Generator * The function generator is used for making relative measurements. The output of the generator is measured with a DMM or oscilloscope. -
Page 24: Care And Maintenance
Service Strategy Defective probes must be returned to a Teledyne LeCroy service facility for diagnosis and exchange. A defective probe under warranty will be replaced with a factory refurbished probe. A probe that is not under warranty can be exchanged for a factory refurbished probe. -
Page 25: Returning A Product For Service
4. Package the probe case in a cardboard shipping box with adequate padding to avoid damage in transit. 5. Mark the outside of the box with the shipping address given to you by Teledyne LeCroy; be sure to add the following: ATTN: <RMA code assigned by the Teledyne LeCroy>... -
Page 26: Teledyne Lecroy Service Centers
CP03x/CP03xA Current Probes Teledyne LeCroy Service Centers World Wide Corporate Office China Teledyne LeCroy LeCroy Corporation Beijing 700 Chestnut Ridge Road Rm. 2001, Unit A, Horizon Plaza Chestnut Ridge, NY, 10977, USA No. 6, Zhichun Road, Haidian Dist. teledynelecroy.com Beijing 100088, China Sales and Service: www.lecroy.com.cn... -
Page 27: Warranty
Spare parts, replacement parts and repairs are warranted for 90 days. In exercising its warranty, Teledyne LeCroy, at its option, will either repair or replace any assembly returned within its warranty period to the Customer Service Department or an authorized service center. -
Page 28: Certifications
EMC Compliance EC Declaration of Conformity - EMC The CP030, CP030A, CP031, and CP031A probes meet the intent of EC Directive 2014/30/EU for Electromagnetic Compatibility. Compliance was demonstrated to the following specifications as listed in the Official Journal of the European Communities: EN 61326-1:2013 EMC requirements for electrical equipment for measurement, control, and laboratory use. -
Page 29: Safety Compliance
Operator’s Manual UROPEAN ONTACT Teledyne LeCroy Europe GmbH Im Breitspiel 11c D-69126 Heidelberg Germany Tel: (49) 6221 82700 Australia & New Zealand Declaration of Conformity - EMC The probe complies with the EMC provision of the Radio Communications Act per the... -
Page 30: Environmental Compliance
Many countries prohibit the disposal of waste electronic equipment in standard waste receptacles. For more information about proper disposal and recycling of your Teledyne LeCroy product, visit teledynelecroy.com/recycle. Restriction of Hazardous Substances (RoHS) The product and its accessories conform to the 2011/65/EU RoHS2 Directive. - Page 32 926878-00 Rev A September, 2016...
