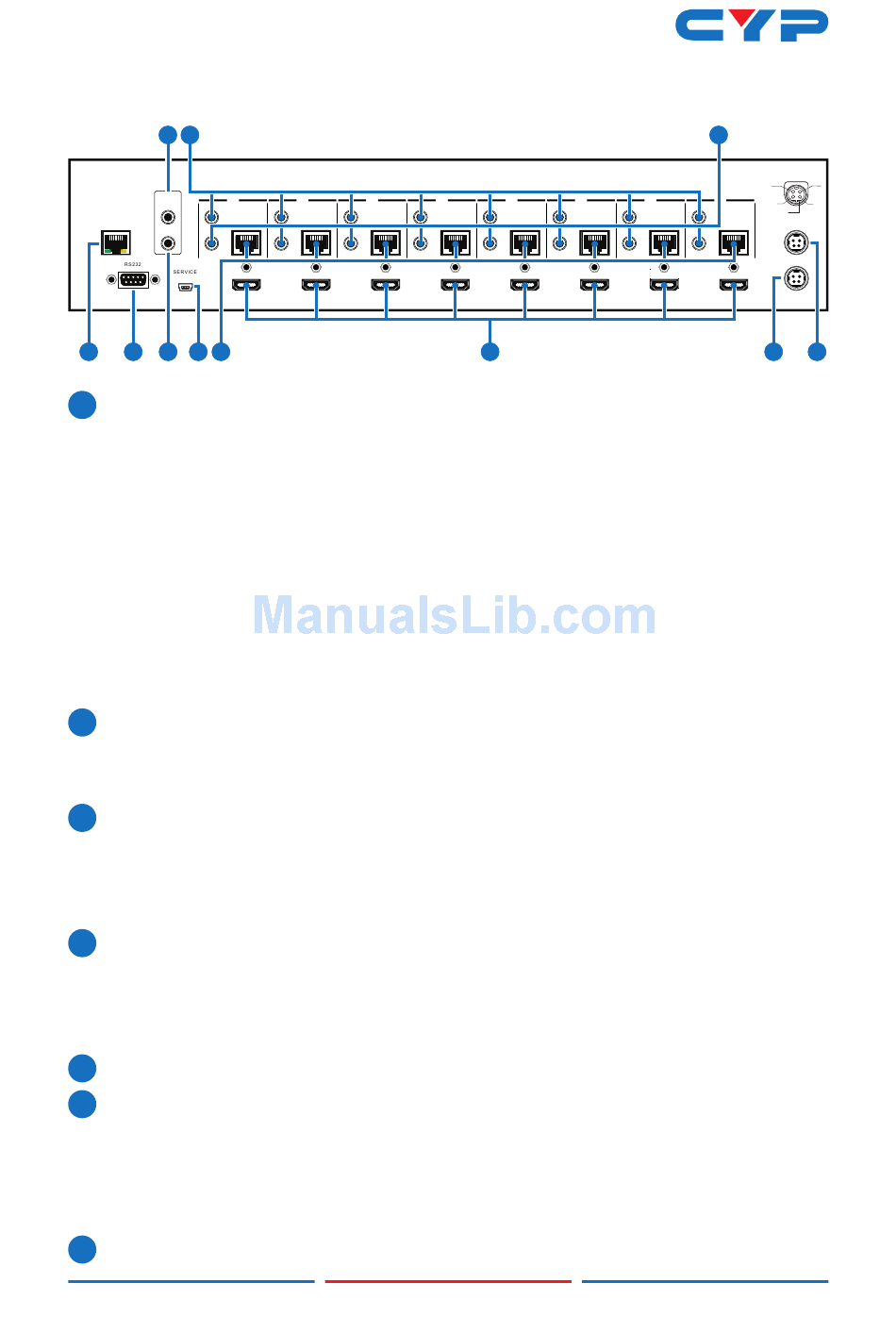

6.2 Rear Panel

3 6
ALL
A
IR OUT IR OUT
LAN CAT5e/6 OUT
IR IN IR IN
HDMI IN
1 2 4 5 8
1 LAN: Connect to an active network for LAN serving and Telnet and
Web GUI control (refer to Sections 6.8 and 6.9).
When the Matrix or any compatible LAN equipped receivers are
connected to a network, this allows the network access (including
internet access if available) to be shared between the Matrix and
all connected receivers. Connect any Ethernet equipped device
e.g. a Smart TV or games console to the LAN port of a receiver for
that device to share the network/internet access.
Warning: Please do not connect this port directly to the PC/Laptop
as the Telnet function will not work.
2 RS-232: Connect to a PC or control system with D-Sub 9-pin cable
to control the matrix with RS-232 commands (refer to Sections 6.6
and 6.7.
ALL IR OUT: Connect an IR Blaster for IR signal transmission to the
3
source/input location. Place the IR Blaster in direct line-of-sight
of the equipment to be controlled. It will transmit all IR signals
received by any IR extenders connected to the matrix or receivers.
4 ALL IR IN: Connect an IR extender for IR signal reception. Ensure
that remote being used is within the direct line-of-sight of the
IR extender. IR signals received will transmitted by all IR blasters
connected to the matrix or receivers.
5 SERVICE: Manufacturer use only.
6 IR OUT 1~8: Connect to the IR blasters for IR signal transmission.
Place the IR blaster in direct line-of-sight of the equipment to be
controlled. It will transmit the IR signal received from IR extenders
connected to the matrix or receivers according to the selected
input.
7 IR IN 1~8: Connect to the IR extenders for IR signal reception. Ensure
