6. OPERATION CONTROLS AND FUNCTIONS

6.1 Front Panel

1

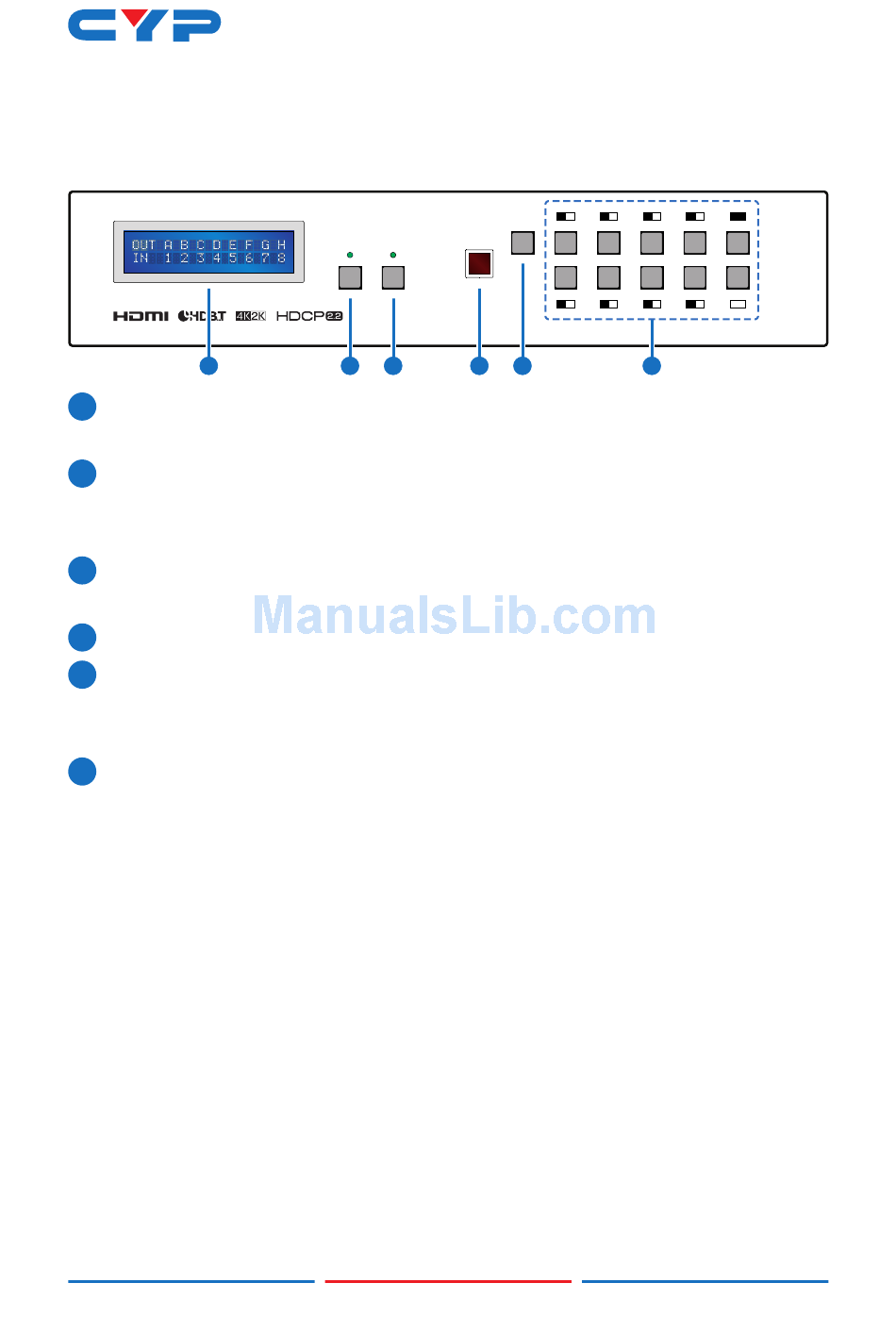

1 LCM : Displays the setting information of each input and output
setting.
POWER: Press this button to power the device ON/OFF. The LED will
2
illuminate green when the power is on, red when it is in 'Standby'
mode.
3 LOCK: Press this button to lock all the buttons on the panel; press
again to unlock. The LED will illuminate orange when locked.
4 IR WINDOW: Accepts the remote control signal of this device only.
5 MENU: Press this button to access the LCM menu system, from
here EDID settings can be managed and IP system settings are
displayed.
6 1~8/A~H and IN/OUT: Press the Out or In button to select the
output or input mode and then press the required number button
to make the selection accordingly.
For example, if outputs A~D need to be set to input 1 and outputs
E~H need to be set to input 2, then the following sequence of
button presses need to be performed:
Press: Out →A→B→C→D→In→1→Menu,
and then press: Out→E→F→G→H→In→2→Menu.
Note: If the menu button is not pressed the selection will not be
changed.
3
POWER LOCK
2 3 4
MENU A 1 B 2 C 3
E 5 F 6 G 7
5 6
D 4 OUT
H 8 IN
