that remote being used is within the direct line-of-sight of the IR
extender. The IR signal will be tranmitted to the selected receiver's
IR OUT.
8
CAT5e/6/7 OUT 1~8: Connect from these CAT outputs to the CAT
input port of the receiver units with a single CAT5e/6/7 cable for HDMI
Audio/Video and IR/RS-232 control signal transmission.
Warning: Please do not connect the CAT5e/6/7 output into the
receiver's LAN port.
9
HDMI IN 1~8: Connect to the HDMI input source devices such as a
DVD player or a Set-top Box with HDMI cable or DVI to HDMI cable.
10
DC 24V MAIN POWER: Plug the 24 V DC power supply into the unit
and connect the adaptor to an AC outlet.
11
PoE 24V: Plug the 24 V PoE power supply into the unit and connect
the adaptor to an AC outlet. This unit provides the power supply for
PoE (Power over Ethernet) capable receiver units.

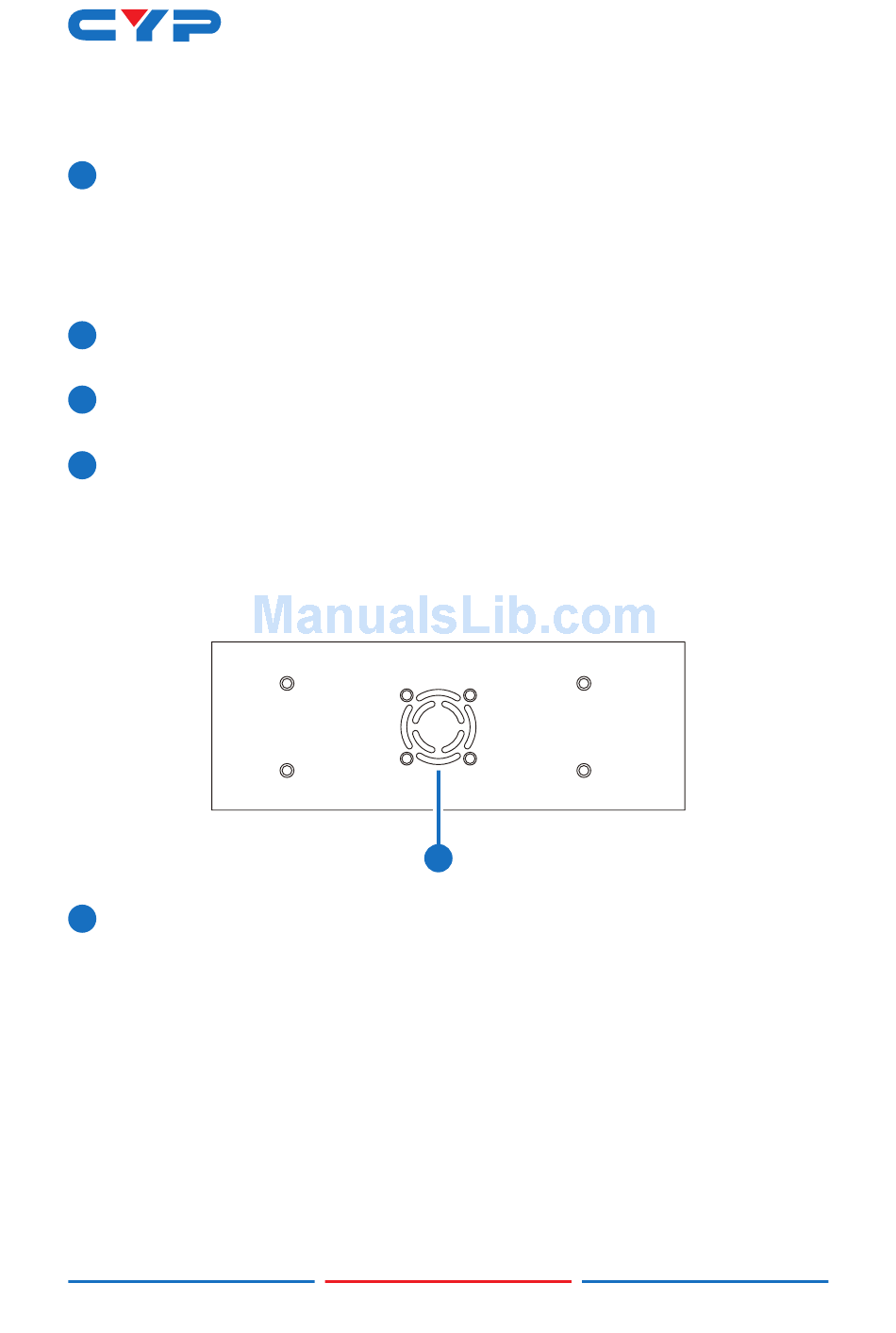

6.3 Side Panel
1
Fan Ventilator: These are air ventilation areas, DO NOT block these
areas or cover with any object. Please allow adequate space
around the unit for air to circulate.
5
1
