KMT12/KMT18
OUTPUT TAB
From this window users can manage the EQ, polarity, gain and limiting threshold and of the three output
channels separately.
G8 G9 G10 G11 G12
G1)
Frequency response display. Show the frequency response curve resulting from the filters set in the Input EQ window.
G2)
Output EQ window button. Open the Output EQ window, where users can set up to six parametric filters for each
output channel.
G3)
Polarity inverter button. When lighted, the signal polarity of the corresponding channel is inverted (180° phase rotation).
G4)
Output Volume buttons. Regulate the amplitude of each output channel.
G5)
Output Volume display. Show the gain or reduction currently applied to each output channel. User can directly write the
desired amount of volume inside the Output Volume display instead of using the Output Volume buttons.
G6)
Limiter threshold selection buttons. Use these buttons to select the different thresholds availables for each output channel.
G7)
Limiter threshold display. Shows the threshold currently applied to the corresponding output channel. User can directly write
the desired amount of threshold inside the Limiter Threshold display instead of using the Limiter Threshold selection buttons.
N.B.: The XLR DSP section of the Output tab does not provide the management of any limiter for this output.
Output EQ window
G8)
Frequency response curve
G9)
Filter type menu
22
G1 G2 G3 G4 G5 G6 G7

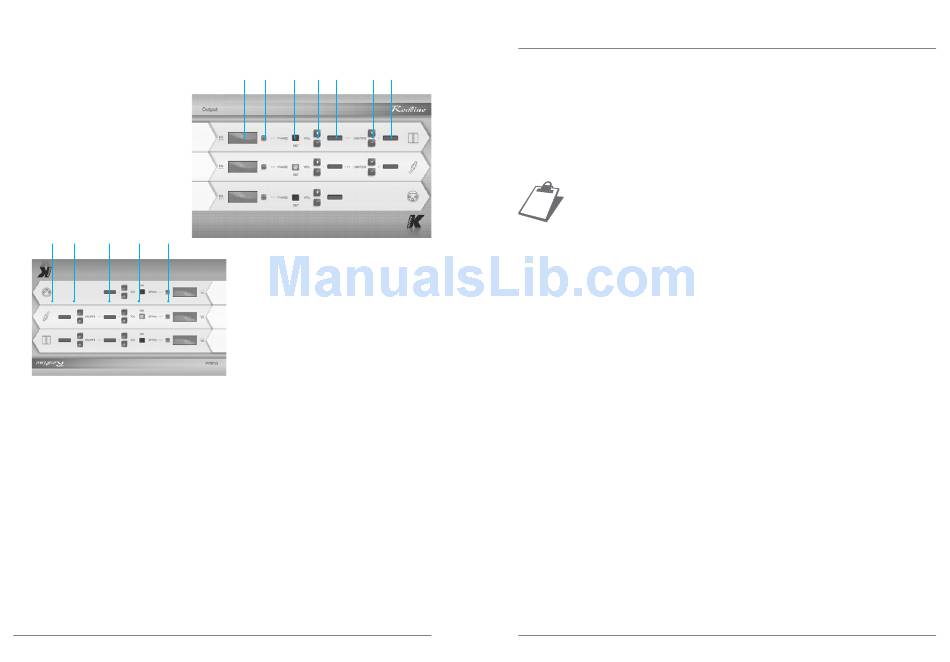

img. G
G10)
Filter frequency knob
G11)
Filter gain knob
G12)
Filter Q knob
REV. A

10. SERVICE

To obtain service:
1) Contact the official K-array distributor in your country. They will direct you to the service centre.
2) If you are calling for service, have the serial number(s) of the unit(s) to hand for reference. Ask for Customer Service, and be
prepared to describe the problem clearly and completely.
3) If the problem cannot be resolved over the phone, you must return the unit for service. 4) You will be given an RA (Return
Authorization) number for job tracking. Refer to this number on shipping materials and in all correspondence concerning the
repair. Shipping charges are the responsibility of the purchaser.
Any attempt to modify or replace components of the device will invalidate your warranty. Service must be performed by an
authorized K-array service center.
Cleaning:
Clean the product enclosures using a soft, dry cloth only. Do not use any solvents, chemicals, or cleaning
solutions containing alcohol, ammonia, or abrasives. Do not use any sprays near the product or allow liquids
to spill into any openings.
