KMT12/KMT18
A3
A2
A1
A4
A1)
Connected Devices Indicator shows the quantity of detected connected devices. N.B.: at startup, the indicator
will show 0 devices even if one or more units are connected. To detect all connected devices, just click the "Connect"
button.
A2)
Connect Button detects connected devices.
A3)
Demo Mode Button activates the demo mode of K-Framework. In this mode, all devices that can be mangaed
with the K-Framework software appear in the Connected Devices Menu on the left, so that the user can navigate
through all the dedicated tabs and have a glimpse of the different functions available for each of them.
A4)
Device List displays all devices presently connected to the network.
N.B.: at startup the List will look empty even if one or more units are connected. To detect all connected devices, just
click the "Connect" button.
A5)
Account Button opens the Account Settings Window where users can insert User Name and Password to access
the K-Array Community and the shared preset database.
A6)
Zoom Buttons zoom in (+) and out (-) of the window view.
Click the Connect Button to detect all presently connected devices.
Once a connected device is detected by K-Framework it will appear in the K-Array Device List as shown in the following
picture:
18

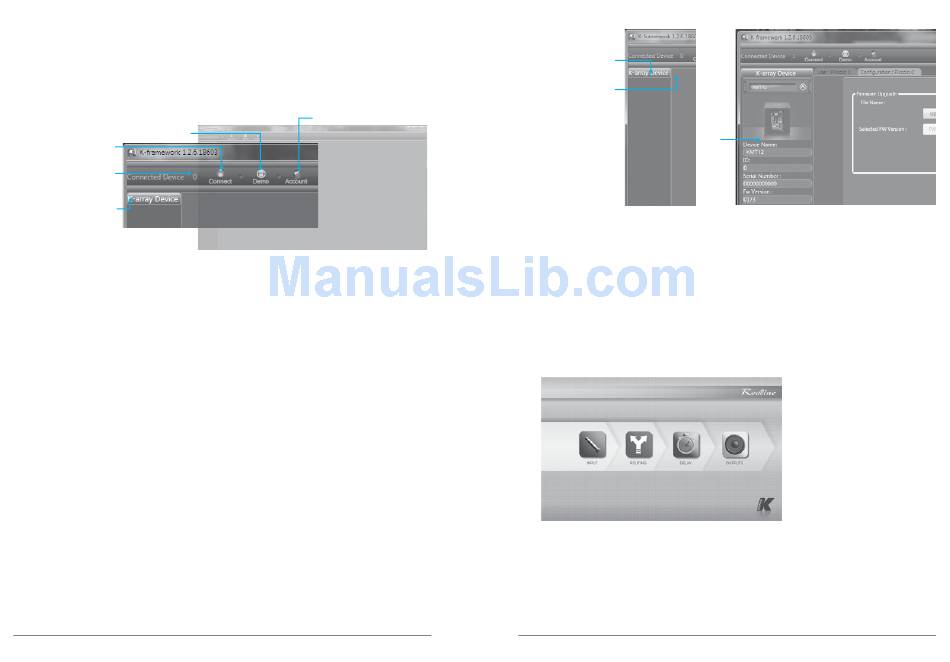

At startup K-Framework will show the following window:
A5
B1)
Connected Device Name.
B2)
Device Menu Button shows and hides the device menu.
img. A
B3)
Device Menu displays the basic information about the device and the shortcuts to open all available Editing
Tabs.
9.4 User Tabs:
HOME
From the Home window users can acccess the dedicated tabs, ordered according to the signal flow from input
stage to ouput stage.
REV. A REV. A
B1
B2
B3
KMT12/KMT18
img. B
img. C
19
