Summary of Contents for Satel PERFECTA

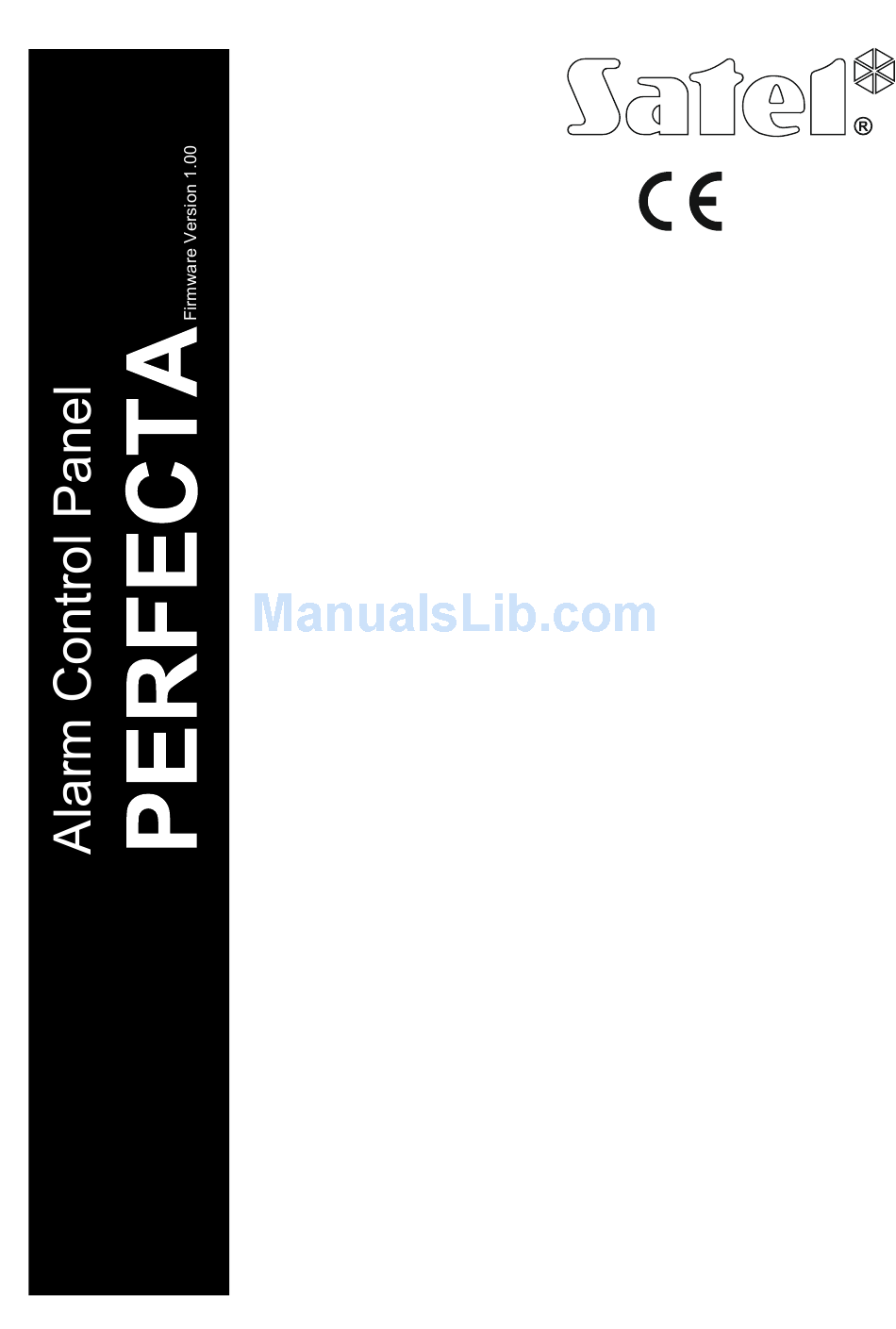

- Page 1 1471 USER MANUAL SATEL sp. z o.o. ul. Budowlanych 66 80-298 Gdańsk POLAND tel. +48 58 320 94 00 www.satel.eu perfecta_u_en 02/17...
- Page 2 Thus, it can deter any would-be intruders. SATEL's goal is to continually upgrade the quality of its products, which may result in some changes of their technical specifications and firmware. The current information on the introduced modifications is available on our website.
-
Page 3: Table Of Contents
Users ........................... 16 6.9.1 Adding a user..........................16 6.9.2 Editing a user ..........................17 6.9.3 Removing a user........................17 6.9.4 Adding keyfob PERFECTA 16-WRL / PERFECTA 32-WRL ..........17 6.9.5 Configuring keyfob settings PERFECTA 16-WRL / PERFECTA 32-WRL ......17 6.9.6 Removing keyfob PERFECTA 16-WRL / PERFECTA 32-WRL..........17... - Page 4 6.17.1 Checking the balance of SIM card ..................23 6.17.2 Topping up the SIM card......................23 6.17.3 Unblocking the SIM card......................23 6.18 Service access ........................23 6.19 Establishing communication with PERFECTA S via GPRS .......... 24 6.20 Service mode ........................24 7. Listening in ........................24 8.
-
Page 5: Introduction
The SATEL Company is manufacturer of a broad range of devices dedicated for use in security alarm systems. Further information is available on our website www.satel.eu or at the points of sale offering our products. -
Page 6: Glossary
PERFECTA SATEL 4. Glossary arm – reaction of t he alarm system to detection by the detectors of an intruder in the protected area, or to another event within the protected area (e.g. glass pane break, gas detection, etc.). The alarm can be signaled in keypads or by sirens (during a defined time or until cleared). -
Page 7: En 50131 Standard For Grade 2 Consequences
SATEL PERFECTA Service code – a code that allows access to the service mode, as well as some functions in the user menu. rvice technician – the person whose function is to contr ol operability of the installed alarm system and its components, as well as to eliminate possible problems. These duties can be fulfilled by the installer or a person assigned by him. -

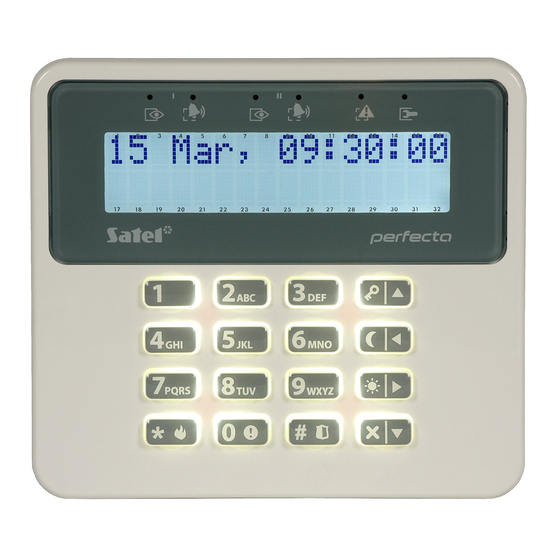

Page 8: Keypads
(PRF-LCD-WRL – which is supported by the PERFECTA 16-WRL and PERFECTA 32-WRL control panels). Response of the wired keypad to the user's actions is faster than that of the wireless one. If the wireless keypad is not in use for 20 seconds, it enters inactive mode. -
Page 9: Display
SATEL PERFECTA – burglary / panic alarm memory , – warning alarm memory, – tamper alarm memory. yellow blinking when the system requires user's attention (e.g. because of a trouble or trouble memory) The LED goes off, if one or both partitions are armed. -
Page 10: Keys
PERFECTA SATEL The keypad displays the following messages (the higher position on the list, the higher the priority): alarm, countdown of entry delay, countdown of exit delay, alarm memory. Messages about alarm and alarm memory will not be displayed, if the G... -
Page 11: Codes
SATEL PERFECTA – turning off the CHIME in the keypad, using the key, – switching over the display from the normal mode to the zone status presentation mode, and vice versa, by means of the key. 4 short beeps and 1 long beep – confirmation of: –... -
Page 12: Arming
PERFECTA SATEL The factory default codes should be changed before you start using your alarm system (see: “Changing code”). Arming Completion of the steps below will start the arming procedure. The procedure ends when the exit delay time elapses (if the countdown is completed successfully, the system becomes armed –... -
Page 13: Terminating The Exit Delay Countdown
SATEL PERFECTA 6.3.5 Terminating the exit delay countdown When the exit delay countdown is running, you can terminate it, thus shortening the exit delay time. Press and hold down for about 3 seconds (it is of no consequence which key you will press). -
Page 14: Disarming And Alarm Clearing Without Partition Selection
PERFECTA SATEL 6.4.1 Disarming and alarm clearing without partition selection Enter the code and then press . Disarming / alarm clearing will take place in the partitions to which you have access. 6.4.2 Alarm clearing without disarming If the partition is armed and you want to clear the alarm without disarming the partition, enter... -
Page 15: Data Editing
SATEL PERFECTA Using the arrow keys 1. Using the keys, find the required submenu or function. 2. Press to open a submenu (use the key to go back to the main menu) or run a function. Using the number shortcuts Most submenus and functions are designated by numbers. -
Page 16: User Functions List
PERFECTA SATEL Use the keys to move the cursor. The key deletes the character on the left side of the cursor. Character av ilab e a er n xt eys rok " & < > Table 1. Characters available when entering names. The upper case letters are available... -
Page 17: Changing Code
[06] 6.SIM2 PUK code entering PUK code SIM2 card Service access defining service access rules PERFECTA Soft establishing communication with PERFECTA S via GPRS Service mode starting service mode Changing code 1. Enter the user menu and press to run 1.C function. -
Page 18: Users
PERFECTA SATEL Users There can be up to 15 users in the system. 6.9.1 Adding a user 1. Enter the user menu and press in turn to run 1.C function. 2. Enter the new user's code. 3. Press to save the code. -
Page 19: Editing A User
3. Press to remove selected user. 6.9.4 Adding keyfob PERFECTA 16-WRL / PERFECTA 32-WRL You can add a keyfob when adding or editing a user. 1. Press to run 4.A function. -
Page 20: Outputs Reset
PERFECTA SATEL 1. Press to run 5.R function. EMOV KEY FOB 2. Type and serial number of the keyfob being removed will be displayed. 3. Press to remove the keyfob. 6.10 Outputs reset Using 3.O function you can: UTPUTS RESET ... -
Page 21: Zone Isolating
SATEL PERFECTA 4. If you want to see the status of all zones which you can inhibit/unbypass, press . The numbers around the display enable identification of the zones. Use the keys to move the cursor. To inhibit/unbypass a zone, hover the cursor over it and press any numbe r key. -
Page 22: Checking The Troubles / System State
PERFECTA SATEL 6.14 Checking the troubles / system state When the LED is blinking, check what is the cause of this signaling. Enter the user menu and press . To scroll the list, use the keys. 6.14.1 Info rmation on system state... -
Page 23: Tests
SATEL PERFECTA – output is activated. The numbe rs above the display make identification of the outputs possible. If no symbol is displayed b elow the number, you cannot control the output. 3. Use the key to hover the cursor over the output you want to control. The name of the outp ut will be presented in the lower line of the display. -
Page 24: Starting The Test Transmission
. The existing ID number will be deleted and the SATEL server will assign a new ID number. The ID number will not be changed until the control panel is connected to the SATEL server. 6.16.6 Checking the IMEI number / ID number Using the 7.IMEI/ID function you can check:... -
Page 25: Sim Cards
ERVICE ACCESS person using the service code (installer/service technician). These rules apply to all methods getting access to the alarm system, i.e. by using keypad, PERFECTA S program and RFECTA C application. -
Page 26: Oft
– it is possible to configure the alarm system by using the PERFECTA S program. Partition 1 – if this option is enabled, the installer/service technician can operate the... -
Page 27: Sms Control
SATEL PERFECTA Fig. 2. MPT-350 keyfob. 9. SMS control You can control your alarm system by using SMS messages containing appropriate control commands. The SMS message must be sent to the number of the currently used SIM card. Agree with the installer: ... -
Page 28: Perfecta Control Application
enter the control p anel ID number (the individual identification number for the purpose of communication via the SATEL server), enter the user code (it will be used when the alarm system is operated by using the application), ... -
Page 29: Sirens
SATEL PERFECTA Fig. 3. PERFECTA C application (Android system): configuring the new system ONTROL settings. 11. Sirens The main task of the siren is to provide information about emergency situations by means of sound or light signals. The installer can configure the alarm system so that the siren will additionally signal the following: 1 sound / flash –...
