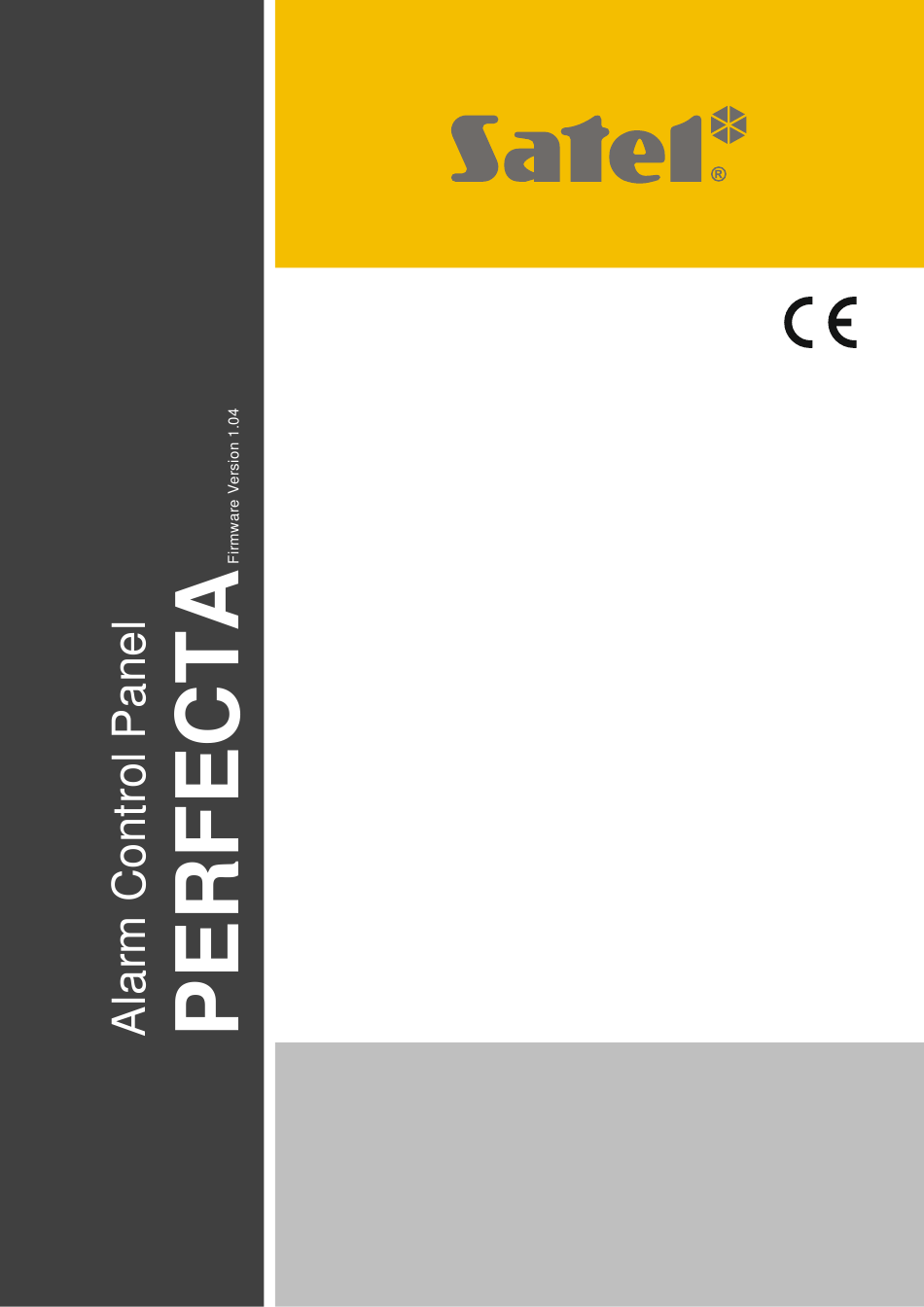

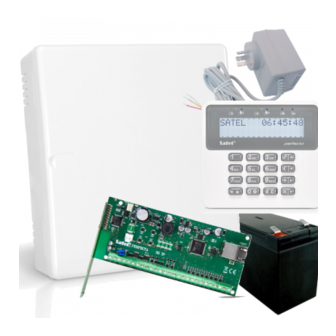

- Page 1 INSTALLER MANUAL perfecta_i_en 07/20 SATEL sp. z o.o. ul. Budowlanych 66 • 80-298 Gdańsk • POLAND tel. +48 58 320 94 00 www.satel.eu...
- Page 2 Changes, modifications or repairs not authorized by the manufacturer shall void your rights under the warranty. SATEL aims to continually improve the quality of its products, which may result in changes in their technical specifications and software. Current information about the changes being introduced is available on our website.
- Page 3 Changes made to the firmware version 1.04 Troubles When “Grade 2” option is enabled, AC power loss will cause a trouble condition if it lasts longer than 10 seconds (it has no effect on the operation of the “19. Trouble status” type output, which is activated immediately after AC power is lost).
-
Page 4: Table Of Contents
PERFECTA SATEL CONTENTS 1. Introduction ........................3 2. Features ..........................3 3. Keypads ..........................5 Keypads features ........................6 4. Expansion modules ......................6 5. MICRA wireless devices PERFECTA 16-WRL / PERFECTA 32-WRL ......6 6. System installation ......................7 Installation plan ........................ -
Page 5: Introduction
• Electrical protection of communication bus. Wireless devices only PERFECTA 16-WRL and PERFECTA 32-WRL • Support for 433 MHz radio devices manufactured by SATEL: – up to 16 (PERFECTA 16-WRL) / 32 (PERFECTA 32-WRL) detectors, – up to 4 sirens,... -
Page 6: Users
PERFECTA SATEL – up to 4 keypads, – up to 15 keyfobs. • Encrypted radio communication. • Two-way communication with wireless keypads and sirens. • Up to 6 control functions available from keyfob. Communication • Built-in cellular communicator (GSM/GPRS module designed for use in the 2G cellular network). -
Page 7: Keypads
• Switching-mode power supply 12 V / 2 A. • Short-circuit protection. • Battery status monitoring and low battery cut-off circuit. 3. Keypads Fig. 1. PRF-LCD / PRF-LCD-WRL keypad. SATEL offers the following keypads for PERFECTA alarm control panels: PRF-LCD – hardwired LCD keypad with mechanical keys,... -
Page 8: Keypads Features
PERFECTA SATEL PRF-LCD-WRL – wireless keypad with mechanical keys (supported PERFECTA 16-WRL and PERFECTA 32-WRL control panels). The alarm system should include at least one keypad. The wireless keypads respond to the user actions more slowly than the wired ones. -
Page 9: System Installation
SATEL PERFECTA The MPD-310 and MPD-310 Pet detectors are identified as the MPD-300 detector. The MSD-350 detector is identified as the MSD-300 detector. The MXD-300 detector is identified as the MMD-302 detector. The MRU-300 repeater is identified as the MMD-300 detector. When registering the repeater to the control panel and configuring it, proceed in the same way as with a detector. -
Page 10: Cabling
PERFECTA SATEL Cabling It is recommended that an unshielded non-twisted cable be used for making electric connections between devices included in the system. If you use the twisted-pair type of cable, remember that CLK (clock) and DTA (data) signals must not be sent through one pair of twisted conductors. -
Page 11: Description Of The Mainboards
(red +, black -). ANT-GSM-I antenna cable / cable terminated with a connector for antenna (the recommended antenna: ANT-GSM-E from SATEL). Connect the antenna only when the control panel power is off. Be particularly careful when connecting the antenna. After the antenna has been connected, put in place the plastic locking device of the connector. -
Page 12: Connecting Devices To The Communication Bus
PERFECTA SATEL SIM2 slot in which the second SIM card is to be installed. Inserting the SIM card into its slot before programming the card PIN code in the control panel is not recommended. wireless system module. only PERFECTA 16-WRL and PERFECTA 32-WRL mini-jack socket for connecting microphone. - Page 13 SATEL PERFECTA keypads must be set within the range from 0 to 3. For how to program addresses of the keypads, please refer to p. 20. Mounting the PRF-LCD keypad The keypad is designed for indoor installation. The place of installation should be readily accessible to the system users.
-
Page 14: Connecting 433 Mhz Keyfobs Receiver Expansion Module Perfecta 16 / Perfecta
PERFECTA SATEL Fig. 4. Connecting keypad to the control panel. 6.5.2 Connecting 433 MHz keyfobs receiver expansion module PERFECTA 16 / PERFECTA 32 You can connect the INT-RX-S expansion module to the PERFECTA 16 / PERFECTA 32 control panel. The module enables 433 MHz keyfobs to be assigned to the users (up to 15 keyfobs). - Page 15 SATEL PERFECTA Fig. 7. Connecting the INT-E expander to the control panel. The following address must be set in the zone expander: • PERFECTA 16 / PERFECTA 16-WRL: 12 (0Ch), • PERFECTA 32 / PERFECTA 32-WRL: 12 (0Ch), 13 (0Dh) or 14 (0Eh).
-
Page 16: Connecting The Hardwired Output Expander
PERFECTA SATEL The expander can be identified as INT-E (no dedicated power supply is connected to the expander) or INT-EPS (dedicated power supply is connected to the expander). 6.5.4 Connecting the hardwired output expander You can connect the INT-O or INT-ORS expander to the control panel. This enables expansion of the system by adding 8 programmable wired outputs. - Page 17 SATEL PERFECTA EOL – wiring configuration that allows connecting a detector with NC or NO alarm output. An EOL resistor must be used in the circuit. Alarm will be triggered by closing or opening the circuit. 2EOL/NC – wiring configuration that is recommended when connecting a detector with NC alarm output and tamper output.
- Page 18 PERFECTA SATEL PERFECTA Fig. 13. Example of connecting an NC detector (NO detector connect in the same way). PERFECTA Fig. 14. Example of connecting an NC detector in Single EOL configuration.
-
Page 19: Connecting The Sirens
SATEL PERFECTA PERFECTA Fig. 15. Example of connecting an NO detector in Single EOL configuration. PERFECTA Fig. 16. Example of connecting an NC detector in Double EOL (2EOL) configuration (NO detector connect in the same way). End-of-line resistors For the Single EOL configuration, use a 2.2 kΩ resistor to close the circuit. For the Double EOL (2EOL) configuration, use two 1.1 kΩ... -
Page 20: Connecting The Microphone
The microphone will allow the users to listen in to the sounds from the protected premises after establishing telephone connection with the control panel. SATEL offers the MIC-1 microphone, which can be connected to the mini-jack socket on the control panel. If you decide to use another type, it should be an electret microphone, e.g. -
Page 21: Backup Power Supply
SATEL PERFECTA and/or short-circuit protection with a 16 A time-delay fuse. The owner or user of the alarm system should be instructed on how to disconnect the transformer from the mains (e.g. by indicating the fuse which protects the control panel supply circuit). -
Page 22: Emergency Procedure Of The Control Panel Start-Up
PERFECTA SATEL 1. Enter the service code (by default: 12345) and press 2. User menu appears. 3. Press 4. When the cursor shows the S function, press ERVICE MODE 5. Service mode menu will be displayed (the cursor will show the E SM function). -
Page 23: Programming The Address By Means Of The Service Function
SATEL PERFECTA settings, all keypads connected to the bus are supported, no matter what their addresses are. This allows you to program individual address for the keypads. Remember to program an individual address if a new keypad is connected to the already functioning alarm system. -
Page 24: Starting The Identification Function From Keypad
PERFECTA SATEL Disconnecting an identified device from the communication bus will trigger the tamper alarm. 6.11.1 Starting the identification function from keypad 1. Start the service mode (see: “Starting the service mode” p. 19). 2. Press successively to run the 21.I . -
Page 25: Connecting The Computer To The Control Panel
6.13 Connecting the computer to the control panel You can connect the control panel RS-232 (TTL) port with the USB port on a computer. To make the connection, use the USB-RS converter offered by SATEL. Having connected the computer to the control panel, you can: •... - Page 26 PERFECTA SATEL Adding wireless detector 1. Click on the “Zones” tab. 2. Click on one of the unused zones. The wireless detector will be assigned to this zone after the adding procedure is finished. 3. Click on 4. The wireless device adding panel will be displayed.
-
Page 27: Removing Wireless Devices
SATEL PERFECTA 6.14.2 Removing wireless devices PERFECTA S program Removing wireless keypad 1. Click on the “Hardware” tab. 2. Click on the wireless keypad that is to be removed. 3. Click on 4. In the window that will be displayed, click on “Delete” to confirm that you want to remove the keypad. -
Page 28: Numeration Of Zones And Outputs In The System
PERFECTA SATEL 7. Numeration of zones and outputs in the system Numeration of zones 7.1.1 Hardwired zones The zones on control panel main board have numbers from 1 to 8. The zones in expanders are numbered depending on the address which is set in them: •... -
Page 29: Prf-Lcd Keypad
SATEL PERFECTA Power supply output current ....................2 A Battery charging current....................500 mA Battery failure voltage threshold ................11 V ±10% Battery cut-off voltage .................... 10.5 V ±10% High-current programmable outputs ............1000 mA / 12 VDC Low-current programmable outputs ..............25 mA / 12 VDC KPD output .................... -
Page 30: Manual Update History
PERFECTA SATEL Weight ..........................246 g 9. Manual update history Manual version Introduced changes • 10/17 Description of how to run the identification function from the PERFECTA S program has been added (p. 22). • 10/18 Information on INT-RX-S expansion module has been added (p. 6 and 12).
