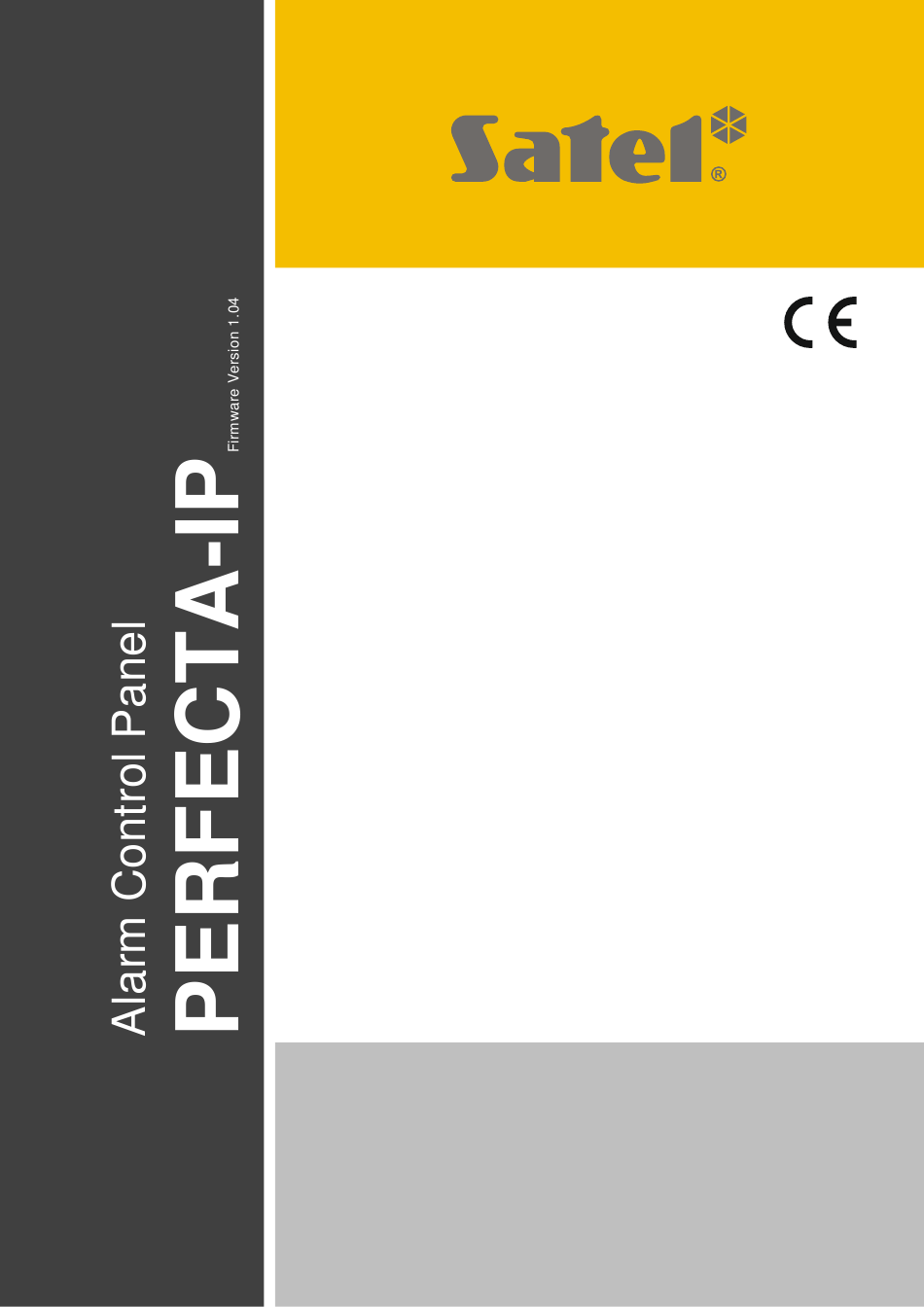

- Page 1 USER MANUAL perfecta-ip_u_en 07/20 SATEL sp. z o.o. ul. Budowlanych 66 • 80-298 Gdańsk • POLAND tel. +48 58 320 94 00 www.satel.eu...
- Page 2 Thus, it can deter any would-be intruders. SATEL aims to continually improve the quality of its products, which may result in changes in their technical specifications and software. Current information about the changes being introduced is available on our website.
-
Page 3: Table Of Contents
CONTENTS 1. Introduction ........................3 2. Technical reliability of the alarm system ............... 3 3. Glossary ........................... 3 4. EN 50131 standard for Grade 2 consequences ............5 5. Keypads ........................... 6 Keypads description ......................6 5.1.1 LEDs presenting partition and system state ................6 5.1.2 Display ............................ - Page 4 PERFECTA-IP SATEL 5.16.2 Output test ..........................22 5.16.3 Checking the level of radio signal ..................22 5.16.4 Starting the test transmission ....................22 5.16.5 ID change ..........................22 5.16.6 Checking the MAC address / ID number / network address ..........23 5.16.7 Checking the firmware version of devices in system .............
-
Page 5: Introduction
The SATEL Company is manufacturer of a broad range of devices dedicated for use in security alarm systems. Further information is available on our website www.satel.eu or at the points of sale offering our products. - Page 6 PERFECTA-IP SATEL Day armed mode – the status in which only some zones in the partition are armed, as selected by the installer. The installer should indicate the zones to be armed when a user stays in the protected area, but there is no risk of the zones being violated by the user during the daytime.
-
Page 7: 50131 Standard For Grade 2 Consequences
SATEL PERFECTA-IP Tamper alarm – reaction of the alarm system to opening the housing of a device which is part of the alarm system, tearing off the device from the wall, cutting through the alarm system cables, etc. Actions taken by the alarm system may be similar as in the event of alarm, however, if the tamper alarm occurs, it is advisable to call in the installer so that he can make a checkup. -
Page 8: Keypads

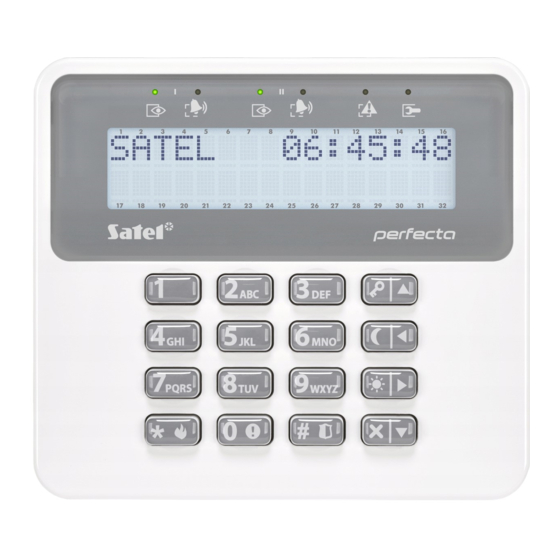

You can operate the alarm control panel by using a wired keypad (PRF-LCD) or a wireless keypad (PRF-LCD-WRL – which is supported by the PERFECTA-IP 32-WRL control panel). Response of the wired keypad to the user's actions is faster than that of the wireless one. If the wireless keypad is not in use for 20 seconds, it enters inactive mode. -
Page 9: Display
SATEL PERFECTA-IP – burglary / panic alarm memory , – warning alarm memory, – tamper alarm memory. yellow flashing when the system requires user's attention (e.g. because of a trouble or trouble memory) The LED goes off, if one or both partitions are armed. -
Page 10: Keys
PERFECTA-IP SATEL The keypad displays the following messages (the higher position on the list, the higher the priority): • alarm, • countdown of entry delay, • countdown of exit delay, • alarm memory. Messages about alarm and alarm memory will not be displayed, if the G... -
Page 11: Codes
SATEL PERFECTA-IP – selecting the partition which is to be armed or disarmed, or where alarm is to be cleared – in such a case the keypad is waiting for the code to be entered, – turning output off, – turning off the CHIME in the keypad, using the key, –... -
Page 12: Factory Default Codes
PERFECTA-IP SATEL Using an incorrect code three times may block the keypad for 90 seconds. As long as the keypad is blocked, entering the correct code is treated as entering an incorrect code (“Wrong code” message is displayed). 5.2.1 Factory default codes... -
Page 13: Arming Without Delay
SATEL PERFECTA-IP 5.3.4 Arming without delay If there is nobody in the partition or nobody is leaving the partition which is to be set to the day / night armed mode, you can arm the partition without exit delay (there will be no beeps accompanying the exit delay countdown). -
Page 14: Disarming And Alarm Clearing
PERFECTA-IP SATEL If you want to bypass a violated zone or unbypass a bypassed zone, press (you need to have the Z right). A prompt will appear asking you whether to execute the ONE INHIBITION function. Press to confirm or to deny. -
Page 15: Turning The Chime On /Off
SATEL PERFECTA-IP Turning the CHIME on /off The CHIME is five short sounds by means of which the keypad will inform you e.g. that a door / window is open. The installer defines which zones of the alarm system can trigger the CHIME and whether it can be turned on/off by the users. -
Page 16: User Functions List
PERFECTA-IP SATEL – displayed item is not selected / option is disabled. Press any number key to change the currently shown symbol for another one. If you want to see the status of all items (these can be e.g. zones, outputs, options, etc.), press . - Page 17 SATEL PERFECTA-IP [212] 2.Schedule selecting user schedule [213] 3.Partitions selecting supported partitions [214] 4.Add key fob adding keyfob [215] 5.Remov.key fob removing keyfob ○ ○ Button selecting function to run with button □ □ Button selecting function to run with button ▲...
-
Page 18: Changing Code
PERFECTA-IP SATEL [97] 7.MAC/ID/ADR checking the MAC address / ID number / network address [98] 8.FW versions checking firmware version of devices [90] 0.FW update starting remote update of the control panel firmware Replace battery enabling battery replacement in wireless keypad... -
Page 19: Editing A User
SATEL PERFECTA-IP Schedule name and number Right Arming Disarming Alarm clearing DURESS Zone inhibition Zone isolation Change access code ... -
Page 20: Removing A User
PERFECTA-IP SATEL 4. Functions that allow editing the user data will be displayed. 5. Use available functions to modify the user data (proceed in the same way as when adding a user). 6. Having made all changes, press to finish editing the user. -
Page 21: Zone Bypassing
SATEL PERFECTA-IP • deactivate for 16 seconds the 11. F function output (to clear IRE DETECTORS POWER SUPPLY the alarm memory of fire detectors), • activate the 21. D function output. ETECTORS RESET Enter the user menu and press to run 3.O function. -
Page 22: Viewing The Event Log
PERFECTA-IP SATEL zones, but pressing any number key will change the displayed symbol to one of the following symbols: – the zone is to be isolated, – the zone is to be unbypassed. 5.12 Viewing the event log Enter the user menu and press to run 5.E... -
Page 23: Trouble Memory And Clearing The Trouble Memory
SATEL PERFECTA-IP 5.14.3 Trouble memory and clearing the trouble memory The installer defines whether only the current troubles are to be presented, or also those which have already ended. The flashing letter “M” in the upper right corner of the display means that the trouble has already ended. -
Page 24: Output Test
5.16.5 ID change The 6.ID function makes it possible to change the individual identification number CHANGE assigned for the needs of communication via the SATEL server. 1. Enter the user menu and press in turn to run 6.ID function. CHANGE... -
Page 25: Checking The Mac Address / Id Number / Network Address
. The existing ID number will be deleted and the SATEL server will assign a new ID number. The ID number will not be changed until the control panel is connected to the SATEL server. 5.16.6 Checking the MAC address / ID number / network address Using the 7.MAC/ID/ADR function you can check:... -
Page 26: Service Access
6. Keyfobs You can operate the PERFECTA-IP 32-WRL alarm system by using the MPT-350 keyfob. To operate the PERFECTA-IP 32 alarm system, you can use any SATEL 433 MHz keyfob, provided that the 433 MHz keyfob receiver expansion module (INT-RX-S) is connected to the... -
Page 27: Perfecta Control Application
SATEL PERFECTA-IP The keyfob can start up to 6 functions. For information about functions assigned to individual buttons / button combinations, please consult the person who has configured the keyfob settings. The alarm system may be configured so that, in some circumstances, arming the system by using the keyfob will fail (see “System problems and arming failure”). - Page 28 • enter the MAC address of the built-in Ethernet module, • enter the control panel ID number (the individual identification number for the purpose of communication via the SATEL server), • enter the user code (it will be used when the alarm system is operated by using the application), •...
-
Page 29: Sirens
SATEL PERFECTA-IP 8. Sirens The main task of the siren is to provide information about emergency situations by means of sound or light signals. The installer can configure the alarm system so that the siren will additionally signal the following: 1 sound / flash –...
