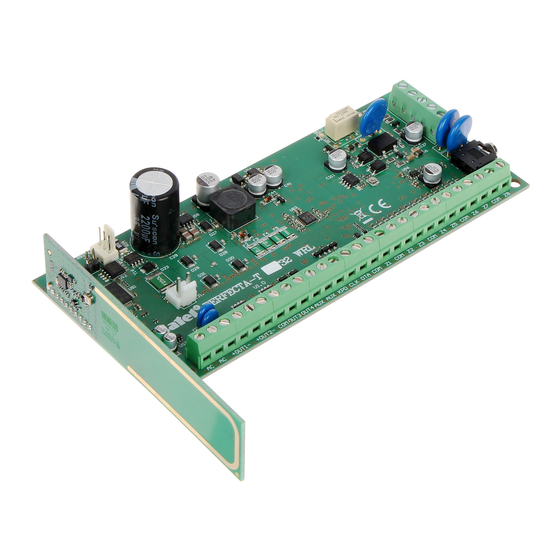

Alarm control panel
Hide thumbs Also See for PERFECTA-T:
Table of Contents

Advertisement

Quick Links

Download this manual

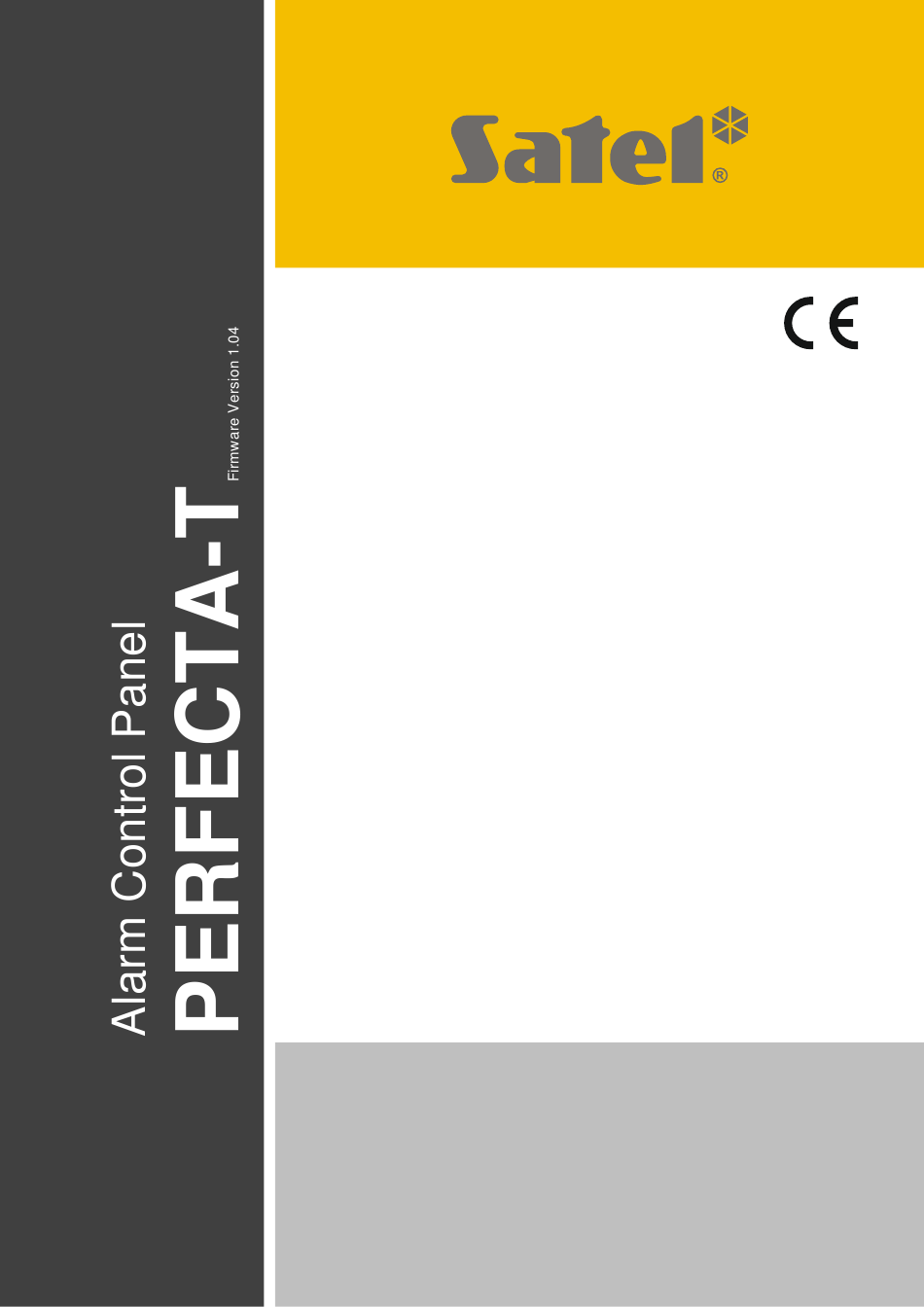

PROGRAMMING
perfecta-t_p_en 07/20
SATEL sp. z o.o.
ul. Budowlanych 66 • 80-298 Gdańsk • POLAND
tel. +48 58 320 94 00
www.satel.eu

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PERFECTA-T and is the answer not in the manual?

Questions and answers

Related Manuals for Satel PERFECTA-T

Summary of Contents for Satel PERFECTA-T

  • Page 1 PROGRAMMING perfecta-t_p_en 07/20 SATEL sp. z o.o. ul. Budowlanych 66 • 80-298 Gdańsk • POLAND tel. +48 58 320 94 00 www.satel.eu...
  • Page 2 Before you start programming, please read carefully this manual in order to avoid mistakes that can lead to malfunction or even damage to the equipment. SATEL aims to continually improve the quality of its products, which may result in changes in their technical specifications and software. Current information about the changes being introduced is available on our website.
  • Page 3 Changes made to the firmware version 1.04 When “Grade 2” option is enabled, AC power loss will cause a trouble Troubles condition if it lasts longer than 10 seconds (it has no effect on the operation of the “19. Trouble status” type output, which is activated immediately after AC power is lost).

  • Page 4: Table Of Contents

    Display and keys ........................17 4.3.3 Chime ............................. 18 4.3.4 Volume ........................... 18 4.3.5 Wireless keypad PERFECTA-T 32-WRL ................18 Keyfobs module ......................... 18 Zone module ........................19 Output module ........................20 5. Partitions ........................20 Partition parameters ......................20 6.
  • Page 5 SATEL PERFECTA-T Wireless siren PERFECTA-T 32-WRL ................28 8. Communication ......................28 9. Reporting ........................29 Reporting parameters and options ..................29 9.1.1 Station 1 / Station 2 ......................... 30 9.1.2 Test transmissions ........................30 9.1.3 Events selection ........................31 10.

  • Page 6: Introduction

    PERFECTA-T SATEL 1. Introduction You can configure the PERFECTA alarm system by using:  a computer running the PERFECTA S program,  a keypad. The control panel can be configured when the A option is enabled (see U CTIVE SER MANUAL As required by the standards, the service access after completion of the installation has to be limited by the administrators.

  • Page 7: Service Mode Indication

    SATEL PERFECTA-T displayed on the keypad with the lowest address. You can press to restore the factory default settings. The service mode menu will not be displayed until the factory settings are restored. Service mode indication The service mode is indicated on the keypads by means of the LED.

  • Page 8: Selection From The Single-Choice List

    PERFECTA-T SATEL 2.5.1 Selection from the single-choice list In the lower line of the display, the currently selected item is presented. You can scroll the list using the keys. 2.5.2 Selection from the multiple-choice list In the lower line of the display, one of the items you can choose from is presented. You can scroll the list using the keys.

  • Page 9: Entering Names

    SATEL PERFECTA-T Special character Function description switch-over to pulse dialing switch-over to tone dialing (DTMF) waiting for additional signal 3 second pause 10 second pause signal in DTMF mode signal # in DTMF mode other signals generated in DTMF mode Table 2.

  • Page 10: Exiting The Service Mode

    3. Configuring the system with the PERFECTA S program You can download the PERFECTA S program from the www.satel.eu website. Required program version: 1.05 (or newer). Communication between the program and the control panel is encrypted. You can program the control panel from a computer connected to the RS-232 (TTL) port on the control panel.
  • Page 11 SATEL PERFECTA-T Menu bar in the “Projects” tab Fig. 2. Appearance of the menu bar when the “Projects” tab is displayed. The search field is displayed on the menu bar. If you want to find a project file, click on the search field and start entering characters.

  • Page 12: Side Menu

    PERFECTA-T SATEL click to display information on the status of partitions, zones, outputs etc. The button is active after connection to the control panel is established. click to display additional menu. 3.1.2 Side menu The side menu is displayed on the left side of the program window. Appearance of the menu depends on the contents presented in the window.
  • Page 13 SATEL PERFECTA-T Buttons OK – click to confirm the changes. Cancel – click to close window without saving changes. Fig. 4. “Connection” window. “Configuration” window Fig. 5. “Configuration” window. PERFECTA Soft password – if you want to protect the program against unauthorized access, you can enter the password.

  • Page 14: Establishing Connection Between The Program And The Control Panel

    The control panel has a built-in analog telephone communicator. To the control panel communication bus, you can connect additional devices that will be needed in the alarm system (keypads, zone modules and output module). The PERFECTA-T 32-WRL control panel also supports wireless keypads.

  • Page 15: Clock

    SATEL PERFECTA-T 4.1.1 Clock Daylight saving time [061.DST] – the control panel can automatically adjust the clock settings due to a change from the summer time to the winter time and vice versa. The following correction schemes are available: – no correction, –...

  • Page 16: Options

    PERFECTA-T SATEL Arm even if not ready after exit delay [Arm ExDly w.trbl] – if this option is enabled, the control panel will not check conditions after finishing the exit delay countdown (it will only check the conditions before starting the arming procedure). The option is available, when the P option is enabled.

  • Page 17: Telephone

    SATEL PERFECTA-T – partial entering of the code is interpreted as entering an incorrect code, – the keypad will be blocked after entering an incorrect code three times (cf. B LOCK AFTER option), THREE INCORRECT CODES – during arming, the control panel checks for problems that prevent arming (cf. P...

  • Page 18: Options

    PERFECTA-T SATEL 4.2.1 Options Tone dialing [Tone dialing] – if the option is enabled, the control panel will tone dial the telephone numbers (pulse dial, if this option is disabled). Pulse 1/1.5 (off 1/2) [Pulse 1/1.5] – this option applies to pulse dialing. Before you enable it, make yourself familiar with the valid standard of pulse dialing.

  • Page 19: Display And Keys

    SATEL PERFECTA-T Show partition 1 status [Show part.1] – if this option is enabled, the keypad LEDs and display indicate the status of partition 1. The keypad will indicate the status of partition 2 only after entering code by the user who has access to partition 2.

  • Page 20: Chime

    [258.New trouble] – volume level when signaling troubles. 4.3.5 Wireless keypad PERFECTA-T 32-WRL For the wireless keypad, additional parameters and options are available. Filter [1272.Filter] – the time counted from receiving of the transmission from the keypad. After it has elapsed and no other transmission is received, trouble will be reported.

  • Page 21: Zone Module

    SATEL PERFECTA-T Fig. 9. Tab with 433 MHz keyfobs receiver expansion module settings. Zone module Fig. 10. Tab with zone expander settings. Name [28.Names] – individual name of the module (up to 16 characters). Alarm in part. [22.Partitions] – partition in which alarm will be triggered in the event of module tamper.

  • Page 22: Output Module

    PERFECTA-T SATEL Output module Fig. 11. Tab with output expander settings. Name [2815.Ex.0F name] – individual name of the module (up to 16 characters). Alarm in part. [2215.Ex0F part] – partition in which alarm will be triggered in the event of module tamper.
  • Page 23 SATEL PERFECTA-T Warning time [14.Warn.delay] – duration of the warning alarm. You can enter from 0 to 255 seconds. Entering any value different from 0 means enabling the warning alarm feature. The alarm alerts the user that he or she has forgotten to disarm the partition or made mistakes when arming the partition.

  • Page 24: Zones

     hardwired – on the control panel PCB and in expanders. The number of available hardwired zones is determined by the control panel during the identification procedure.  wireless – in the PERFECTA-T 32-WRL control panel, after adding wireless detectors. The number of available wireless zones depends on the number of wireless detectors registered in the system.
  • Page 25 SATEL PERFECTA-T circuit for 200 ms or longer – irrespective of the programmed Opening the V IBRATION number of pulses and sensitivity (see below) – will result in a zone violation. This solution enables a magnetic contact to be connected in series with the vibration detector.

  • Page 26: Zone Types

    PERFECTA-T SATEL Delay activation time [34.Entry delay] – the time during which the 2. I type zones NTERNAL act as delayed ones. It is counted from the moment of violation of the 18. E NTRY OUTE type zone. You can enter from 0 to 255 seconds.

  • Page 27: Wireless Detector Perfecta-T 32-Wrl

    Zone restore means the trouble restore. ROUBLE CODE Wireless detector PERFECTA-T 32-WRL If a wireless detector is assigned to the zone, an additional parameter is available. Filter [1272.Filter] – time counted from the moment of receiving a transmission from the detector.

  • Page 28: Outputs

    7. Outputs The system supports the following outputs:  hardwired – on the control panel PCB and in the expander.  wireless – in the PERFECTA-T 32-WRL control panel. There are 4 outputs that support wireless sirens. Output functions 0. N OT USED –...

  • Page 29: Output Parameters And Options

    SATEL PERFECTA-T – output is active, when the control panel is running in service 22. S ERVICE MODE STATUS mode. ) – output is active, when the system is armed and information 23. A RM STATUS REPORTED about arming has been sent to the monitoring station (if reporting is disabled, the output is active when the system is armed).

  • Page 30: Quick Control Of Outputs

    One output can be assigned to each number key. Wireless siren PERFECTA-T 32-WRL If a wireless siren is assigned to the output, additional parameters and options are available (outputs 13-16).

  • Page 31: Reporting

    SATEL PERFECTA-T Fig. 15. “Communication” tab. 9. Reporting The control panel can send event codes to the monitoring station by using analog telephone line. Reporting parameters and options Fig. 16. “Reporting” tab. Reporting [Monitoring] – if the option is enabled, the control panel can send event codes to...

  • Page 32: Station 1 / Station 2

    PERFECTA-T SATEL Reporting mode [72.Stations] – defines how event codes are to be sent to the monitoring stations: Station 1 or station 2 – the control panel will make an attempt to send the event code to station 1 and, if unsuccessful, to station 2.

  • Page 33: Events Selection

    SATEL PERFECTA-T When armed [793.Armed] – if the test transmission is to be sent at regular intervals when the system is armed, define every how many days, hours and minutes. When disarmed [792.Disarmed] – if the test transmission is to be sent at regular intervals when the system is disarmed, define every how many days, hours and minutes.

  • Page 34: Audio Messaging

    PERFECTA-T SATEL control panel or from playing back the voice message. If 0 has been programmed, the listening-in function will be unavailable. Rings to answer [173.Rings ToAns] – number of rings after which the control panel will go off hook. If 0 has been programmed, the control panel will not be receiving any calls.

  • Page 35: Timers

    SATEL PERFECTA-T You can download the Microsoft Speech Platform 11 from the www.microsoft.com web site. Installation of the following files is required:  SpeechPlatformRuntime.msi (x86 i.e. 32-bit version),  MSSpeech_TTS_xx-XX_yyyy.msi (where xx-XX is language, and yyyy is voice). - click to read the voice messages from the control panel.

  • Page 36: Editing The Timer Parameters

    When the firmware update is running, the control panel does not execute its normal functions. 1. Download the update program for control panel firmware from www.satel.eu. 2. Connect the control panel RS-232 (TTL) port with the computer port 3. Run the update program for control panel firmware.

  • Page 37: User Schedules

    SATEL PERFECTA-T 13.1 User schedules The user schedule defines the user rights. The control panel offers 5 user schedules. When adding or editing a user, one of the user schedules is selected. Changing the rights in user schedule results in a change of rights of all the users to whom that schedule was assigned.

  • Page 38: Default Functions Of Keyfob Buttons

    PERFECTA-T SATEL Schedule name [121.Schedules] – individual name of the user schedule (up to 16 characters). Right [121.Schedules] – defines which functions are available to the user. The following rights are available: Arming – the user can arm the system.

  • Page 39: Manual Update History

    SATEL PERFECTA-T 15. Manual update history Manual version Introduced changes  12/19 Information on the required version of PERFECTA S program has been modified (p. 8).  Description of “AC loss report delay” control panel parameter has been modified (p. 13).
