Summary of Contents for Satel PERFECTA-T

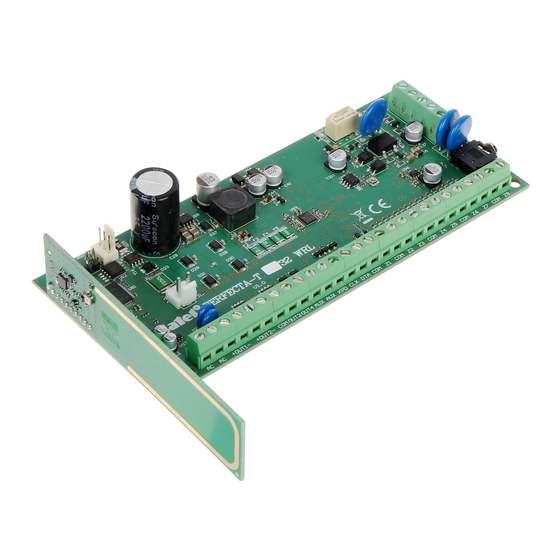

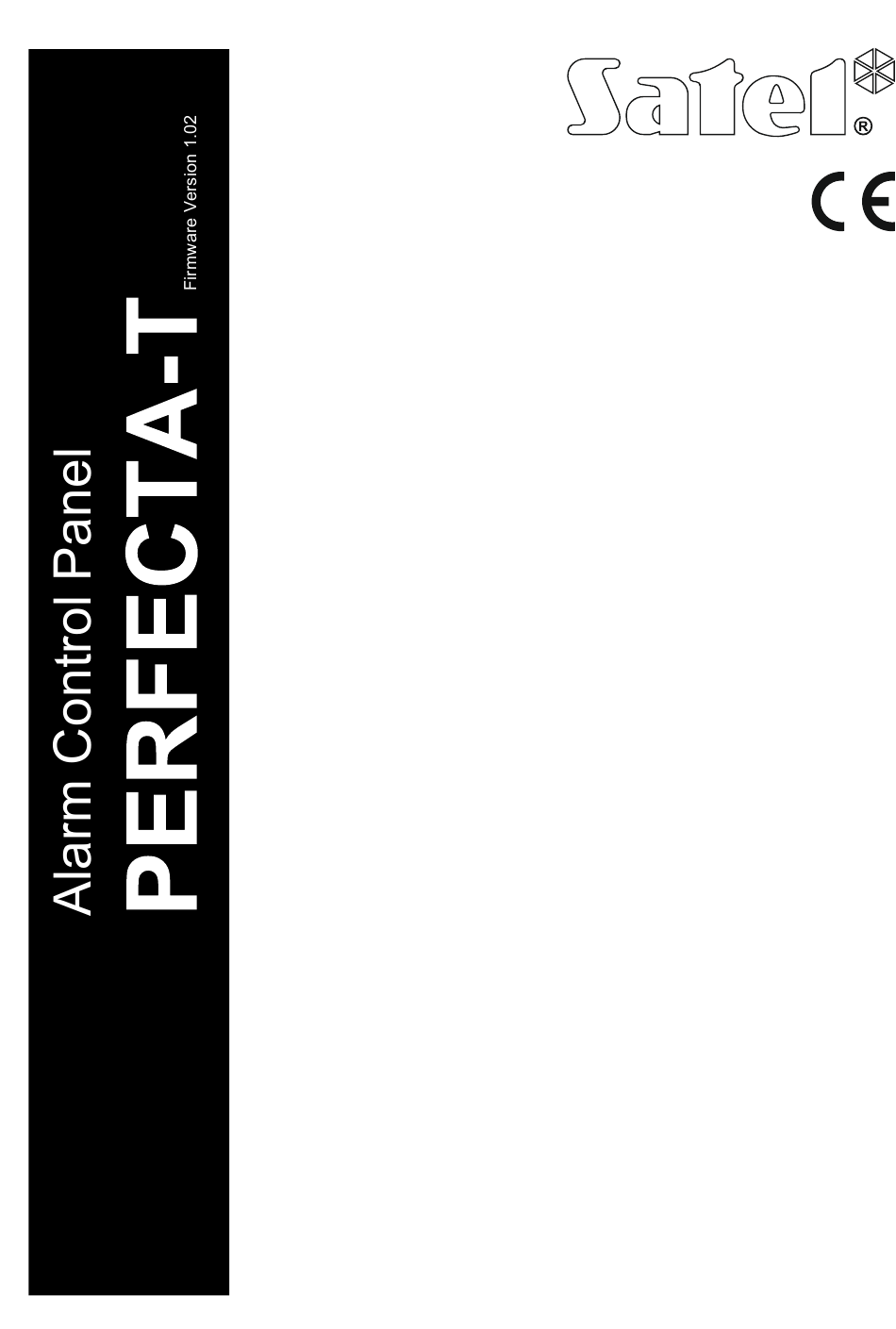

- Page 1 USER MANUAL SATEL sp. z o.o. ul. Budowlanych 66 80-298 Gdańsk POLAND tel. +48 58 320 94 00 www.satel.eu perfecta-t_u_en 11/18...
- Page 2 Thus, it can deter any would-be intruders. SATEL's goal is to continually upgrade the quality of its products, which may result in some changes of their technical specifications and firmware. The current information on the introduced modifications is available on our website.
-
Page 3: Table Of Contents
CONTENTS 1. Introduction ........................3 2. Technical reliability of the alarm system............... 3 3. Alarm system operating costs ..................3 4. Glossary ........................... 4 5. EN 50131 standard for Grade 2 consequences ............5 6. Keypads ........................... 6 Keypads description ......................6 6.1.1 LEDs presenting partition and system state ................6 6.1.2... - Page 4 SATEL 6.16.1 Zone test ..........................21 6.16.2 Output test..........................21 6.16.3 Checking the level of radio signal PERFECTA-T 32-WRL ............ 21 6.16.4 Starting the test transmission....................22 6.16.5 Checking the firmware version of devices in system ............. 22 6.17 Replacing battery in wireless keypad .................. 22 6.18 Service access ........................
-
Page 5: Introduction
The SATEL Company is manufacturer of a broad range of devices dedicated for use in security alarm systems. Further information is available on our website www.satel.eu or at the points of sale offering our products. -
Page 6: Glossary
PERFECTA-T SATEL 4. Glossary arm – reaction of t he alarm system to detection by the detectors of an intruder in the protected area, or to another event within the protected area (e.g. glass pane break, gas detection, etc.). The alarm can be signaled in keypads or by sirens (during a defined time or until cleared). -
Page 7: En 50131 Standard For Grade 2 Consequences
SATEL PERFECTA-T companies offering the alarm system monitoring service undertake to intervene if specific events occur (e.g. alarms, troubles, etc.). rvice code – a code that allows access to the service m ode, as well as some functions in the user menu. -
Page 8: Keypads
You can operate the alarm control panel by using a wired keypad (PRF-LCD) or a wireless keypad (PRF-LCD-WRL – which is supported by the PERFECTA-T 32-WRL control panels). Response of the wired keypad to the user's actions is faster than that of the wireless one. If the wireless keypad is not in use for 20 seconds, it enters inactive mode. -
Page 9: Display
SATEL PERFECTA-T – burglary / panic alarm memory , – warning alarm memory, – tamper alarm memory. yellow flashing when the system requires user's attention (e.g. because of a trouble or trouble memory) The LED goes off, if one or both partitions are armed. -
Page 10: Keys
PERFECTA-T SATEL The keypad displays the following messages (the higher position on the list, the higher the priority): alarm, countdown of entry delay, countdown of exit delay, alarm memory. Messages about alarm and alarm memory will not be displayed, if the G... -
Page 11: Codes
SATEL PERFECTA-T – turning output off, – turning off the CHIME in the keypad, using the key, – switching over the display from the normal mode to the zone status presentation mode, and vice versa, by means of the key. -
Page 12: Factory Default Codes
PERFECTA-T SATEL 6.2.1 Factory default codes By default, the following codes are preprogrammed in the control panel: user 15 code: 1111 service code: 12345 The factory default codes should be changed before you start using your alarm system (see: “Changing code”). -
Page 13: Terminating The Exit Delay Countdown
SATEL PERFECTA-T accompanying the exit delay countdown). When setting the partition to one of the above- mentioned armed modes, hold down the armed mode selection key ( ) for about 3 seconds. The exit delay countdown will not run. 6.3.5 Terminating the exit delay countdown When the exit delay countdown is running, you can terminate it, thus shortening the exit delay time. -
Page 14: Disarming And Alarm Clearing
PERFECTA-T SATEL Having reviewed the list of problems, press to go back to the “System not ready” message. Failure of arming procedure If, after the exit delay countdown expires, the system fails to arm, there are some problems that did not exist before the exit delay countdown was started. Such restriction may be imposed by standards, e.g. -
Page 15: User Menu
SATEL PERFECTA-T User menu Enter the code and press to get access to the user menu. The functions you can run will be displayed. The list of available functions depends on your rights, as well as on the state and configuration of the system. -
Page 16: User Functions List
PERFECTA-T SATEL you can change its status by pressing any number key. If you want to restore the previous way of presentation of the list, press Entering decimal values To enter digits, use the number keys. Use the keys to move the cursor. In some functions, the key deletes the character on the left side of the cursor. - Page 17 SATEL PERFECTA-T □ □ Button selecting function to run with button ▲ ▲ Button selecting function to run with button ■ ■ Button selecting function to run with button ● ● Button selecting function to run with button ○ ●...
-
Page 18: Changing Code
PERFECTA-T SATEL Changing code 1. Enter the user menu and press to run 1.C function. HANGE CODE 2. Enter the new code. 3. Press to save new code. Users There can be up to 15 users in the system. 6.9.1 Adding a user 1. -
Page 19: Editing A User
SATEL PERFECTA-T 10. Assign partition(s) to which the user is to have access. The user should have access to at least one partition. 11. Press to confirm partition selection. 12. Functions that allow en tering the user data will be displayed. -
Page 20: Removing Keyfob
PERFECTA-T SATEL 6. Use the key to find the K option. EY FOB EVENT 7. Use the key to define whether the use of the keyfob is to be saved to the event log ( - yes, - no). 6.9.6 Removing keyfob You can remove a keyfob when adding or editing a user. -
Page 21: Zone Isolating
SATEL PERFECTA-T – zone is isolated. 3. Press any number key to change the displayed symbol to one of the following symbols: – the zone is to be inhibited, – the zone is to be unbypassed. If you want to see the status of all zones which you can inhibit/unbypass, press . -
Page 22: Information On System State
PERFECTA-T SATEL 6.14.1 Information on system state If the G 2 option is enabled by the installer, the 7.S function, instead of the RADE YSTEM STATE function, is available in the user menu. When the function is running, the ROUBLES following information is displayed: ... -
Page 23: Tests
4. Press to activate the output or to deactivate the output. 6.16.3 Checking the level of radio signal PERFECTA-T 32-WRL Using the 3.S function you can check: IGNAL LEVEL noise level in the 433 MHz frequency band,... -
Page 24: Starting The Test Transmission
PERFECTA-T SATEL Enter the user menu and press in turn to run 3.S function. The signal IGNAL LEVEL level information will be presented as a percentage. You can scroll the list using the keys. 6.16.4 Starting the test transmission The 4.T... -
Page 25: Service Mode
8. Keyfobs You can operate the PERFECTA-T 32-WRL alarm system by using the MPT-350 keyfob. To operate the PERFECTA-T 32 alarm system, you can use any SATEL 433 MHz keyfob, provided that the 433 MHz keyfob receiver expansion module (INT-RX-S) is connected to the control panel. -
Page 26: Sirens
PERFECTA-T SATEL The keyfob can start up to 6 functions. For information about functions assigned to individual buttons / button combinations, please consult the person who has configured the keyfob settings. The alarm system may be configured so that, in some circumstances, arming the system by using the keyfob will fail (see “System problems and arming failure”).
