- Page 1 PROGRAMMING SATEL sp. z o.o. ul. Budowlanych 66 80-298 Gdańsk POLAND tel. +48 58 320 94 00 www.satel.eu perfecta_p_en 10/17...
- Page 2 Before you start programming, please read carefully this manual in order to avoid mistakes that can lead to malfunction or even damage to the equipment. SATEL's goal is to continually upgrade the quality of its products, which may result in some changes of their technical specifications and firmware. The current information on the introduced modifications is available on our website.
- Page 3 Changes made to the firmware version 1.01 You can run the identification function from the PERFECTA S Expansion program to detect modules connected to communication bus. modules You can define the time during which the keypad is to work in active Wireless keypad mode after wake-up (“Wake-up”...
-
Page 4: Table Of Contents
Additional menu ........................10 Establishing connection between the program and the control panel ......... 13 3.2.1 Local connection ........................13 3.2.2 Remote connection: SATEL server ..................13 3.2.3 Remote connection: PERFECTA>>PERFECTA Soft............13 4. Hardware ........................14 Mainboard ........................... 14 4.1.1 Clock ............................ - Page 5 SATEL PERFECTA Quick control of outputs ....................... 32 Wireless siren PERFECTA 16-WRL / PERFECTA 32-WRL..........32 8. Communication ......................32 SATEL server ........................33 Direct connection to PERFECTA S ................33 9. Reporting ........................33 Reporting parameters and options ..................33 9.1.1...
-
Page 6: Introduction
PERFECTA SATEL 1. Introduction You can configure the PERFECTA alarm system by using: a computer running the PERFECTA S program (locally or remotely), a keypad. The control panel can be configured when the A option is enabled (see U... -
Page 7: Service Mode Indication
SATEL PERFECTA displayed on the keypad with the lowest address. You can press to restore the factory default settings. The service mode menu will not be displayed until the factory settings are restored. Service mode indication The service mode is indicated on the keypads by means of the LED. -
Page 8: Selection From The Single-Choice List
PERFECTA SATEL 2.5.1 Selection from the single-choice list In the lower line of the display, the currently selected item is presented. You can scroll the list using the keys. 2.5.2 Selection from the multiple-choice list In the lower line of the display, one of the items you can choose from is presented. You can scroll the list using the keys. -
Page 9: Hiding The Service Mode
3. Configuring the system with the PERFECTA S program You can download the PERFECTA Soft program from the www.satel.eu website. Communication between the program and the control panel is encrypted. The control panel can be programmed locally or remotely. Remote programming is only possible after the GSM/GPRS communicator settings have been configured (see “GSM phone”... -
Page 10: Menu Bar In The Perfecta Soft Program
PERFECTA SATEL Fig. 1. PERFECTA S window when the program is run for the first time. 3.1.1 Menu bar in the PERFECTA S program The menu bar is displayed in the top part of the program window. Appearance of the menu bar depends on the contents presented in the window. -
Page 11: Side Menu
SATEL PERFECTA Appearance of the menu bar when displaying the control panel data Fig. 3. Appearance of the menu bar after establishing connection with the control panel. type of alarm control panel and firmware version. icon displayed when the control panel is running in the service mode. -
Page 12: Additional Menu
if the control panel is to be programmed locally from the computer connected to the RS-232 (TTL) port on the control panel, select “Local connection”, if the control panel is to be programmed remotely via GPRS by using the SATEL server, select “Remote connection: SATEL server”, ... - Page 13 Fig. 5. “Connection” window: settings for establishing connection through SATEL server. IMEI – individual identification number of the control panel GSM communicator. ID – individual identification number for the purposes of communication through the SATEL server (assigned automatically by the SATEL server).
- Page 14 PERFECTA SATEL Fig. 6. “Connection” window: settings for direct connection via GPRS. “Configuration” window Fig. 7. “Configuration” window. PERFECTA Soft password – if you want to protect the program against unauthorized access, you can enter the password. Data files encryption key – if you want the files saved to disk to be additionally encrypted, enter the file encryption key.
-
Page 15: Establishing Connection Between The Program And The Control Panel
OFT CONN SERVER ALLOWED the control panel (see “SATEL server: p. 33). By default, this option is disabled. 1. Open the file with control panel data (the file with default settings (“New” tab) or the file saved on the computer disk (“Projects” tab)). -
Page 16: Hardware

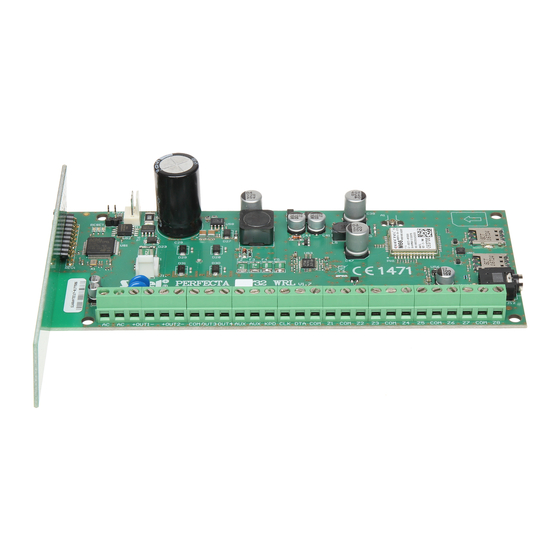

The control panel has a built-in GSM/GPRS communicator. To the control panel communication bus, you can connect additional devices that will be needed in the alarm system (keypads, zone modules and output module). The PERFECTA 16-WRL / PERFECTA 32-WRL control panel also supports wireless keypads. -
Page 17: Times
SATEL PERFECTA Clock correction [065.RTC adjust.] – if accuracy of the control panel clock is insufficient, its settings can be automatically corrected (by up to ±127 seconds per week). When testing the clock for accuracy, the synchronization function must be disabled. -
Page 18: Arming
PERFECTA SATEL Hide arm state indication after [125.Suppr.arm] – time counted from the moment of partition arming, after which the LED on keypad indicating the partition armed status goes off. If value 0 is programmed, the LED will be ON always when the partition is armed. - Page 19 ARM IF TAMPERED – control panel gives information about past troubles (cf. T option), ROUBLE MEMORY – loss of communication with SATEL server will not be reported (cf. D O NOT REPORT A SATEL option), SERVER PROBLEM –...
-
Page 20: Gsm Phone
(“from pins”) is not available (it can only be used if factory default settings of the control panel are restored). Do not report a SATEL server problem [No SATEL trouble] – if this option is enabled, loss of communication with the SATEL server will not be reported. - Page 21 SATEL PERFECTA GPRS APN [613.APN / 623.APN] – access point name for Internet GPRS connection. Username [614.USR / 624.USR] – user name for Internet GPRS connection. Password [615.PWD / 625.PWD] – password for Internet GPRS connection. DNS server [616.DNS / 626.DNS] – IP address of DNS server to be used by the module.
-
Page 22: Pre-Paid Support
PERFECTA SATEL 4.2.1 Pre-paid support USSD-check balance [681.USSDchkSIM1 / 682.USSDchkSIM2] – the USSD code which is used to check balance of the SIM card account. If the code has been programmed, the user can check e.g. the account balance by using keypad. -
Page 23: Display And Keys
SATEL PERFECTA Key 9 - change disp. mode [Disp.mode change] – if this option is enabled, the users can use the key to toggle between the normal display mode and the zone presentation mode (the key is to be pressed and hold down for about 3 seconds). The option is not available for the wireless keypad. -
Page 24: Chime
[258.New trouble] – volume level when signaling troubles. 4.3.5 Wireless keypad PERFECTA 16-WRL / PERFECTA 32-WRL For the wireless keypad, additional parameters and options are available. Filter [1272.Filter] – the time counted from receiving of the transmission from the keypad. -
Page 25: Zone Module
SATEL PERFECTA Zone module Fig. 11. Tab with zone expander settings. Name [28.Names] – individual name of the module (up to 16 characters). Alarm in part. [22.Partitions] – partition in which alarm will be triggered in the event of module tamper. -
Page 26: Partitions
PERFECTA SATEL Fig. 12. Tab with output expander settings. 5. Partitions Fig. 13. “Partitions” tab. The partition is a separated area within the premises protected by the security alarm system. The subdivision into partitions enables arming/disarming the system only in part of the protected area, as well as limiting access to some portion of the premises to selected users. -
Page 27: Zones
SATEL PERFECTA The exit delay countdown can be terminated by using keypad (see E XIT DELAY option) or zones of the 1. E , 16. E CLEARING ENABLE NTRY XIT FINAL ELAY or 17. S type. ERMINATOR HUNT Warning time [14.Warn.delay] – duration of the warning alarm. You can enter from 0 to 255 seconds. -
Page 28: Zone Parameters And Options
PERFECTA SATEL Zone parameters and options Fig. 14. “Zones” tab. Name [38.Names] – individual name of zone (up to 16 characters). Wiring type [31.EOL] – type of detector and the method of its connection: No detector – no detector is connected to the zone, NC –... - Page 29 SATEL PERFECTA Time [32.Sensitivity] – the time during which the defined number of pulses must be detected parameter) for the zone to be violated. The parameter applies to the R ULSES OLLER wiring configuration. You can program: 30 s (keypad: press ) –...
-
Page 30: Zone Types
PERFECTA SATEL Zone restore disarms [369.Shnt.disarm] – an option for the 17. S zone type. If HUNT LOCK the option is enabled, the zone restore will disarm the partition. Store zone violations events [370.Viol.event] – an option for the 12. N... -
Page 31: Wireless Detector Perfecta 16-Wrl / Perfecta 32-Wrl
Zone restore means the trouble restore. ROUBLE CODE Wireless detector PERFECTA 16-WRL / PERFECTA 32-WRL If a wireless detector is assigned to the zone, an additional parameter is available. Filter [1272.Filter] – time counted from the moment of receiving a transmission from the detector. -
Page 32: Output Parameters And Options
PERFECTA SATEL – output activated by calling medical help from keypad or by the 9. 24 7. MEDICAL ALARM zone. EDICAL – output activated by triggering unverified alarm. 8. A – LARM NOT VERIFIED – output activated by triggering verified alarm. - Page 33 SATEL PERFECTA Assigned to part. 2 [452.P.2 outputs] – if this option is enabled, the output is controlled by events related to partition 2 (alarm in partition 2, clearing alarm in partition 2 etc.). Fig. 15. “Outputs” tab. Polarity + [453.Polarity(+)] – the option defines how the outputs will operate (see the table below).
-
Page 34: Quick Control Of Outputs
One output can be assigned to each number key. Wireless siren PERFECTA 16-WRL / PERFECTA 32-WRL If a wireless siren is assigned to the output, additional parameters and options are available (outputs 13-16). -
Page 35: Satel Server
PERFECTA Soft conn. via SATEL server allowed [PERFECTA Soft] – if this option is enabled, it is possible to establish connection between the PERFECTA S program and the control panel through the SATEL server. -
Page 36: Station 1 / Station 2
(to enter them on the keypad, use the 732.SIA prefix / 752.SIA prefix function). If the identifier only consists of the digits 0, events are not sent. IP format and protocol [UDP] [SIA-IP] – for reporting via GPRS, you must define: – format: SATEL or SIA-IP (SIA DC-09 standard). - Page 37 Advanced SATEL station key [739.STAM key / 759.STAM key] – a sequence of characters for encrypting data sent to the monitoring station via GPRS. You can enter up to 12 alphanumeric characters (digits, letters and special characters). In the PERFECTA S...
-
Page 38: Test Transmissions
PERFECTA SATEL Send names [Names in SIA] – if the option is enabled, in the SIA format, the name of event source (zone, user, etc.) will also be sent, in addition to the event code. National char. [National chars] – if this option is enabled, you can send in the SIA format not only ASCII characters but national characters as well. -
Page 39: Parameters And Options Of The Messaging
SATEL PERFECTA SMS messages – the content of SMS messages is automatically generated by the control panel. 10.1 Parameters and options of the messaging Fig. 18. “Messaging” tab. 10.1.1 Phones In the control panel, you can enter data of 8 telephones which will be notified of events in the alarm system. -
Page 40: Audio Messaging
PERFECTA SATEL – two partitions are selected – the control panel receives calls when both partitions are armed. 10.1.2 AUDIO messaging AUDIO messaging [AUDIO messag.] – if this option is enabled, the control panel can notify the users of events by using voice messages. -
Page 41: Sms Control
SATEL PERFECTA SMS notifications confirming ev. [Messaging events] – if this option is enabled, information about sending SMS notification is saved to the event log. Event assignment The following options are available for each telephone: Partition 1 / Partition 2 – if this option is enabled, the phone will be notified of events that occurred in the given partition (the events of which the phone will be notified are defined in other options). -
Page 42: Timers
PERFECTA SATEL SMS [118.SMS control] – control command which can be sent in the SMS message to run the function assigned to the command. You can enter up to 8 alphanumeric characters (digits, letters and special characters). You can enter spaces, but at least one character must be different from the space. -
Page 43: Editing The Timer Parameters
When the firmware update is running, the control panel does not execute its normal functions. 13.1 Local update 1. Download the update program for control panel firmware from www.satel.eu. 2. Connect the control panel RS-232 (TTL) port with the computer port 3. Run the update program for control panel firmware. -
Page 44: Remote Update
13.2 Remote update Remote update of the control panel firmware is made possible by the U update server, which is included in the SATEL product portfolio. 13.2.1 Remote update parameters and options Fig. 21. “Firmware update” tab. Update server [051.Address] – address of the U update server. -
Page 45: Procedure Of Remote Update For Control Panel Firmware
SATEL PERFECTA Firmware update SMS initiating update [117.Update FW] – the control command which can be sent in the SMS message to initiate update of the control panel firmware. You can enter up to 8 alphanumeric characters (digits, letters and special characters). You can enter spaces, but at least one character must be different from the space. -
Page 46: Parameters Of The User Schedule
PERFECTA SATEL 14.1.1 Parameters of the user schedule Fig. 22. “Users” tab. Schedule name [121.Schedules] – individual name of the user schedule (up to 16 characters). Right [121.Schedules] – defines which functions are available to the user. The following rights are available: Arming –... -
Page 47: Default Functions Of Keyfob Buttons
SATEL PERFECTA DURESS – a special right that allows to define in the system a code which, if used, will trigger a silent alarm (which is signaled in no way, but the alarm code is sent to the monitoring station). The alarm will be triggered in the partition in which alarm would be triggered in the event of tamper of the keypad used for code entering. -
Page 48: Manual Update History
PERFECTA SATEL 16. Manual update history Manual version Introduced changes 10/17 Description of buttons shown on PEFECTA S menu bar has been supplemented (p. 9). Description of buttons available in PEFECTA S additional menu has been supplemented (p. 10).
