Design
The ASM has a terminal block for connecting up to the PROFIBUS DP which is available as
an option and the ECOFAST version or M12, 7/8".
The following figure shows the basic design of the ASM 456.

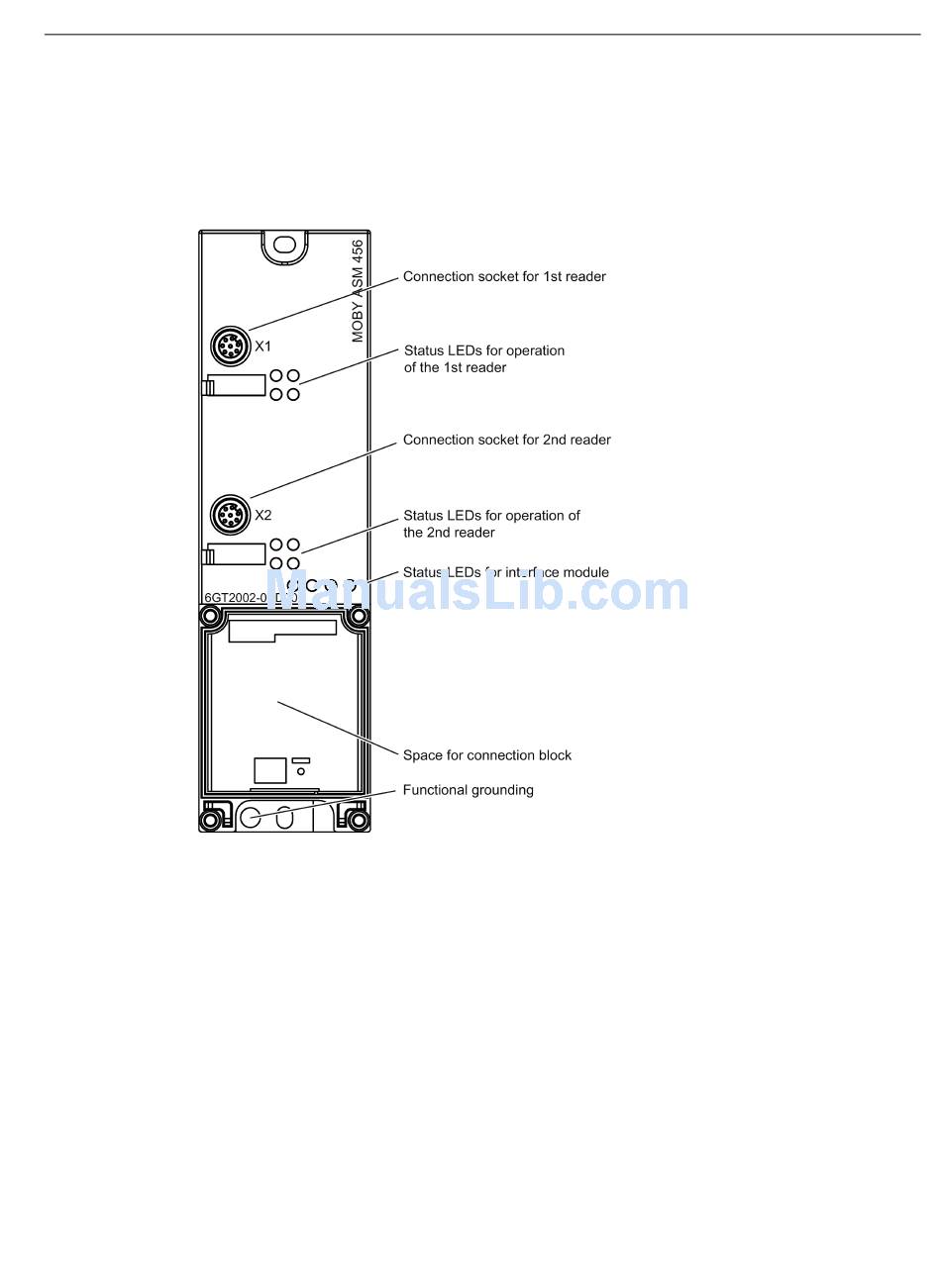

Figure 2-2
ASM 456 interface module
Operating Instructions, 07/2015, J31069-D0162-U001-A6-7618
Basic design of the ASM 456
