Installation

3.4 Replacing labels

3.4
Replacing labels
Properties
You can use the labels to identify every channel on the base unit and the terminal block. You
will find the labels in the base unit when it is supplied.
● 8 labels on the base unit
● 1 label on the terminal block
Requirements
You can order replacement labels. For order numbers, refer to the appendix.
Tools required
2.5 to 4 mm screwdriver
Replacing labels
1. Push the screwdriver into the small opening of the label at an angle, then lever it out.

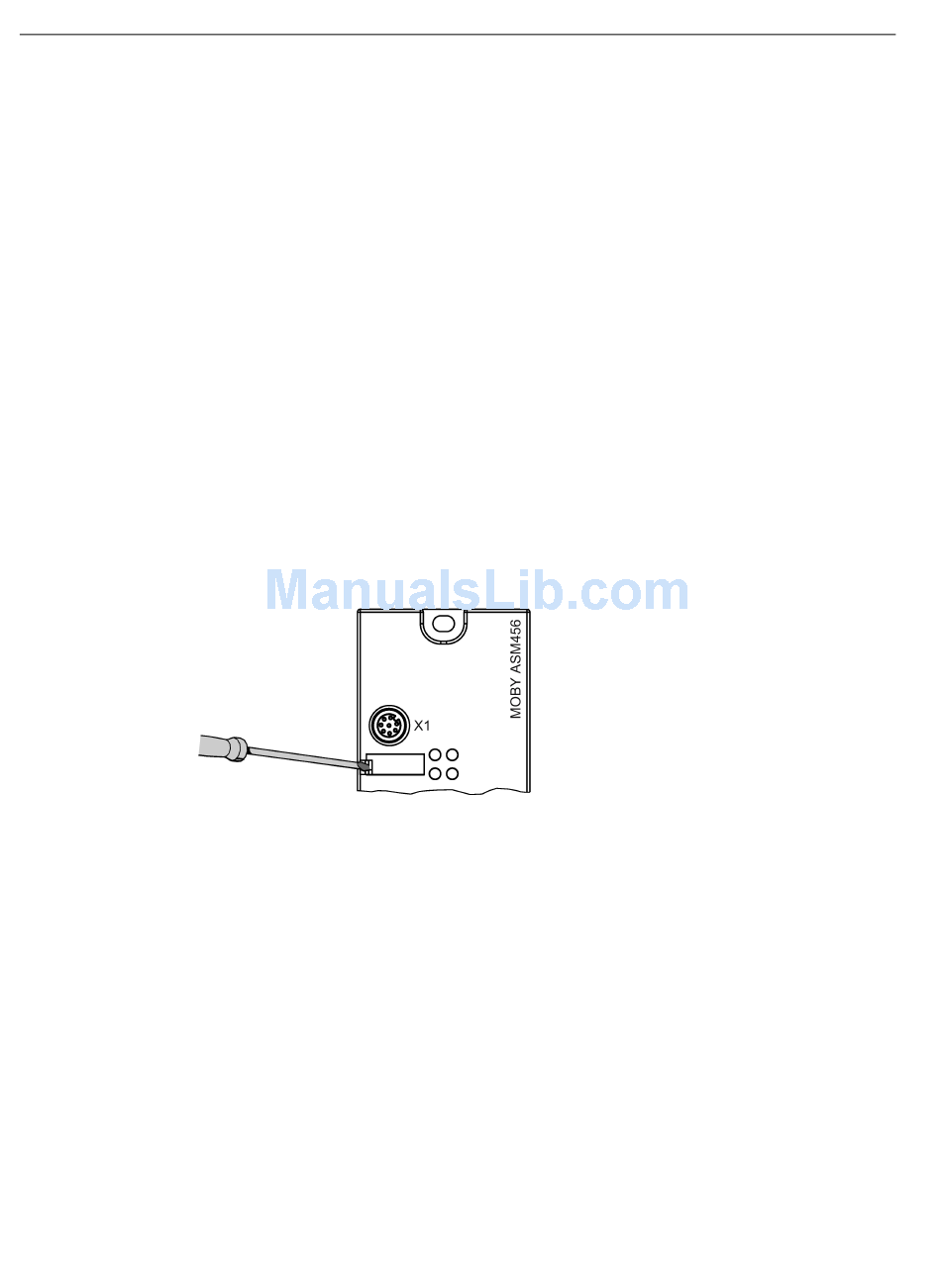

Figure 3-2
2. Push the label into the module using your fingers.
14
Removing labels
Operating Instructions, 07/2015, J31069-D0162-U001-A6-7618
ASM 456 interface module
